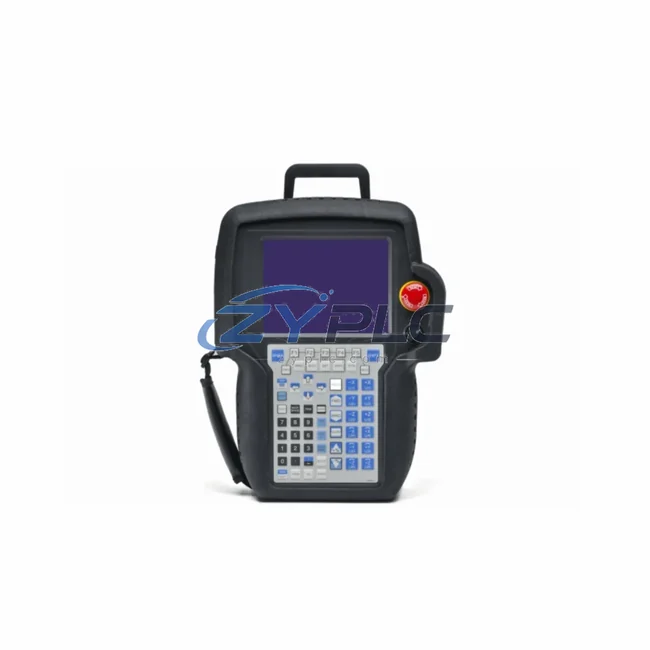

FANUC A05B-2518-H202#EAW Teach Pendant for ARC Welding

FANUC A05B-2518-H202#EAW Teach Pendant for ARC Welding

In modern industrial automation, the teach pendant is far more than a handheld programming device — it is the primary human-machine interface layer within a layered robot control architecture. The FANUC A05B-2518-H202#EAW Teach Pendant is purpose-engineered for ARC welding robotic systems, delivering seamless system integration across the full control hierarchy: from the robot controller and servo amplifier layer, through the I/O and fieldbus communication layer, to the welding power source and process monitoring layer. This document describes the system role, architectural compatibility, and long-term operational value of the A05B-2518-H202#EAW within a complete FANUC robotic welding cell.

Product Specification Table

System Compatibility Notes

The A05B-2518-H202#EAW does not operate in isolation. Its value is realized through tight integration with every layer of the FANUC robotic welding architecture. At the controller layer, it connects directly to the FANUC R-30iB Plus Controller (A05B-2600-H001 or equivalent cabinet unit), which serves as the central processing and motion coordination hub. The teach pendant communicates via a high-speed serial link to the controller’s iPendant interface port, enabling real-time program editing, alarm monitoring, and weld schedule management without latency.

At the servo and motion layer, the pendant interfaces with the FANUC αi-series Servo Amplifier (A06B-6240 series) and the FANUC αi-series Pulse Coder feedback system, allowing engineers to jog individual robot axes, verify encoder positions, and fine-tune motion parameters directly from the pendant screen. This eliminates the need for a separate PC-based tuning interface during commissioning.

Within the I/O and process layer, the A05B-2518-H202#EAW integrates with the FANUC I/O Unit-MODEL A (A03B-0815 series) and the FANUC Process I/O Board, enabling weld start/stop signal monitoring, torch collision detection acknowledgment, and wire feed control status display — all visible on the pendant’s ARC welding status screen. The #EAW software package adds dedicated weld schedule screens, allowing operators to adjust voltage, current, wire speed, and travel speed parameters directly from the pendant without accessing the controller cabinet.

For communication and network integration, the pendant works in conjunction with the FANUC DeviceNet Board (A20B-2100-0470) or PROFIBUS-DP Interface Board, supporting fieldbus diagnostics and I/O mapping verification from the HMI layer. In cells using FANUC EtherNet/IP communication boards, the pendant provides network status monitoring and IP configuration access, ensuring the robot cell remains synchronized with upstream PLC systems such as the FANUC PMC (Programmable Machine Controller) embedded within the R-30iB controller.

At the power layer, the pendant’s enable switch and deadman grip are hardwired into the safety circuit of the controller, interfacing with the FANUC Safety I/O Board and external safety relays to enforce ISO 10218-compliant emergency stop and enabling device logic. This ensures that servo power cannot be engaged unless the operator is actively holding the pendant in the correct grip position — a critical safety architecture requirement in ARC welding environments where high-current processes and UV radiation hazards are present.

Industrial Application Notes

The FANUC A05B-2518-H202#EAW is deployed across a wide range of industrial sectors where robotic ARC welding is a core manufacturing process. In automotive body-in-white manufacturing, it is used to program and maintain ARC Mate 100iD and M-20iA robots performing MIG welding on chassis components, with weld schedules managed directly from the pendant’s #EAW interface. In heavy equipment and construction machinery fabrication, the pendant enables operators to manage multi-pass weld sequences on thick structural steel, adjusting interpass temperature delays and wire feed rates from the shop floor without halting production.

In shipbuilding and offshore structure fabrication, where welding robots operate in large, distributed cells, the A05B-2518-H202#EAW’s cable-connected design ensures reliable communication even in electromagnetically noisy environments generated by high-amperage welding power sources. In pressure vessel and pipeline manufacturing, the pendant’s precise jog control and weld parameter editing capability supports the tight process tolerances required by ASME and AWS welding standards.

For general metal fabrication and job shop environments, the teach pendant’s intuitive ARC welding UI reduces operator training time and enables rapid changeover between weld programs for different part geometries — directly supporting flexible manufacturing strategies. In all these applications, the warranty terms confirmed during quotation provided by ZYPLC ensures that replacement units are available with verified compatibility, minimizing unplanned downtime in production-critical welding cells.

Product Compatibility FAQ

Q1: Is the A05B-2518-H202#EAW compatible with both the R-30iB and R-30iB Plus controllers?
Yes. The A05B-2518-H202#EAW is designed for use with the FANUC R-30iB and R-30iB Plus controller families. The iPendant connector and communication protocol are consistent across both controller generations. However, it is not directly compatible with the older R-J3iB or R-30iA controller series without hardware and software adaptation. Always verify the controller model and software version before substituting teach pendants in an existing cell.

Q2: Can the #EAW pendant be used on a robot that is not configured for ARC welding?
The A05B-2518-H202#EAW pendant will function as a standard iPendant on any compatible R-30iB series controller, but the ARC welding-specific screens and weld schedule management functions (#EAW software) will only be active if the controller’s system software includes the ARC Welding option (R641 or equivalent). On non-welding robot systems, the pendant operates normally for jogging, program editing, and I/O monitoring, but the dedicated weld parameter screens will not be displayed. This makes the unit suitable as a cross-fleet spare in mixed robot installations.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term architectural maintenance?
The warranty terms confirmed during quotation provided by ZYPLC covers the A05B-2518-H202#EAW against manufacturing defects and functional failures under normal industrial operating conditions. ZYPLC supports RFQ sourcing for FANUC teach pendants and controller components to support rapid replacement in the event of pendant failure, ensuring that your robotic welding cell is not idled by HMI layer unavailability. For long-term architectural maintenance, ZYPLC can supply matched controller boards, servo amplifier modules, and I/O units to support full system lifecycle management. Contact our engineering team at plc.sales@zyplc.com or +86 19859288691 for system compatibility verification and lead time confirmation.
