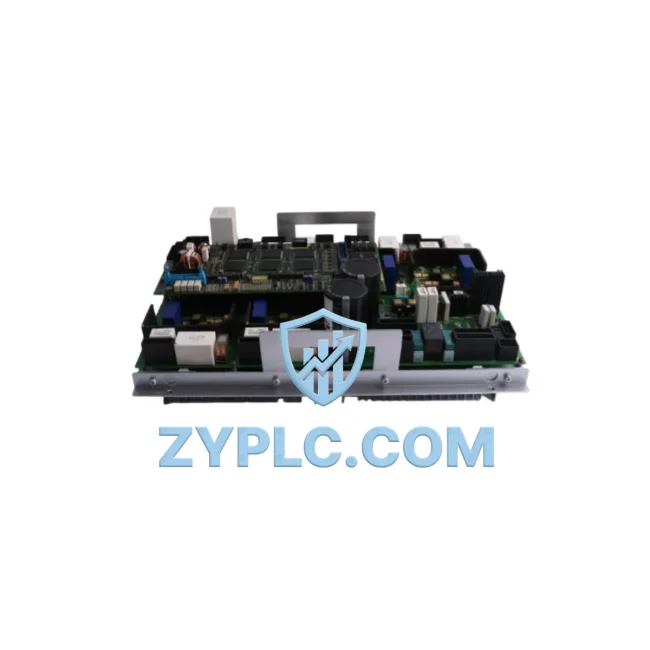

FANUC A06B-6105-H002 Industrial Network Interface for αi Series Systems

FANUC A06B-6105-H002: Industrial Data Link for αi Series Smart Factory Systems

The FANUC A06B-6105-H002 is a high-performance αi Series Axis Servo Drive engineered for precision motion control and seamless industrial network integration in modern smart factory environments. Designed to operate within FANUC’s proprietary FSSB (FANUC Serial Servo Bus) architecture, this servo drive unit delivers deterministic, high-speed communication between the CNC controller and the servo axis, enabling real-time position feedback, torque regulation, and velocity loop closure with sub-millisecond cycle times. Whether deployed in multi-axis machining centers, robotic welding cells, or automated assembly lines, the A06B-6105-H002 forms a critical node in the industrial data chain — bridging field-level motion devices with supervisory control and monitoring systems.

Network Communication Table

Connected Automation Data Flow

In a fully networked smart factory, the FANUC A06B-6105-H002 sits at the heart of the motion control data loop. Signal acquisition begins at the encoder feedback interface of the servo motor — typically a FANUC αiF or αiI series motor — where position and speed data are captured and transmitted back to the A06B-6105-H002 amplifier unit over the FSSB fiber link. The amplifier then communicates in real time with the FANUC 30i-B or 31i-B CNC controller, which executes interpolation algorithms and issues corrective commands within each servo cycle.

At the machine level, the CNC controller interfaces with the FANUC A20B-8200 series main CPU board and the FANUC A16B-3200 series I/O module, which handle discrete signal exchange with proximity sensors, limit switches, and pneumatic valve banks. These I/O signals feed into the PMC (Programmable Machine Controller) embedded within the CNC, enabling coordinated sequencing of spindle drives, coolant systems, and tool changers — all synchronized with the servo motion commanded through the A06B-6105-H002.

For plant-level visibility, the servo drive’s operational data — including axis load, alarm codes, and cycle counts — is aggregated by a FANUC FOCAS2-enabled data collection gateway (such as the MT-LINKi middleware platform), which publishes structured data to SCADA systems (e.g., Wonderware, IgnitionSCADA, or Siemens WinCC) via OPC-UA or EtherNet/IP. This allows production engineers to monitor spindle utilization, detect abnormal torque signatures, and trigger predictive maintenance workflows without interrupting the machining cycle.

In multi-axis configurations, the A06B-6105-H002 operates alongside companion units such as the FANUC A06B-6114-H209 (αi Series dual-axis amplifier) and the FANUC A06B-6096-H206 (βi Series servo amplifier), all sharing the same FSSB backbone. The FANUC A06B-6110-H015 spindle amplifier connects in parallel on the same fiber ring, ensuring that spindle speed commands and servo axis motion remain phase-coherent for rigid tapping and synchronized threading operations.

Remote I/O expansion is handled through FANUC I/O Link β modules (e.g., A03B-0819 series distributed I/O units), which extend the control network to remote junction boxes on large gantry machines or transfer lines. These modules communicate over the I/O Link serial bus back to the CNC, while the servo data from the A06B-6105-H002 continues to flow independently over FSSB — maintaining strict separation between motion-critical and general I/O traffic for maximum determinism.

At the edge, FANUC-compatible industrial edge gateways (such as the Moxa MGate MB3180 or HMS Anybus X-gateway) can bridge FANUC FOCAS data to cloud-based MES or ERP platforms, enabling end-to-end traceability from the servo axis level up to enterprise resource planning systems. This architecture supports the full Industry 4.0 data pyramid: from field device to control layer, from control layer to SCADA, and from SCADA to cloud analytics.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy manufacturing environments is protocol fragmentation — machines running FANUC FSSB alongside equipment using PROFIBUS-DP, DeviceNet, or Modbus RTU, with no unified data layer connecting them. The A06B-6105-H002, when paired with FANUC’s FOCAS2 API or third-party protocol gateways, resolves this isolation by exposing servo-level data (axis position, alarm status, load meter values) to higher-level systems that speak standard industrial protocols.

Data silos are further eliminated by integrating the servo drive’s diagnostic output into centralized SCADA dashboards. Rather than requiring a technician to walk to the machine and read the CNC screen, alarm codes and axis performance metrics from the A06B-6105-H002 are streamed in real time to the control room HMI — enabling faster fault response, reduced mean time to repair (MTTR), and improved OEE (Overall Equipment Effectiveness).

For remote monitoring, the drive’s FSSB-connected CNC can be accessed via FANUC’s built-in Ethernet port (on 30i/31i-B controllers) using the FOCAS2 library, allowing remote engineers to read servo parameters, upload/download NC programs, and review alarm histories without physical access to the machine. This capability is especially valuable for multi-site manufacturers managing geographically distributed production lines.

Production line transparency is achieved by mapping servo axis data to OPC-UA nodes, making it consumable by any SCADA or MES platform that supports the standard. System expansion is equally straightforward: additional servo axes can be added to the FSSB ring by inserting new A06B-6105 series amplifier units, with the CNC automatically detecting and configuring the new axis during power-up — no manual network addressing required.

All units supplied by ZYPLC undergo pre-shipment functional testing, including FSSB communication verification, alarm code clearance, and parameter backup. Each A06B-6105-H002 ships with a 12-month warranty, covering manufacturing defects and communication interface failures. In-stock units are available for same-week dispatch via DHL Express or FedEx International Priority.

Industrial Connectivity FAQ

Q1: What is the communication latency of the FSSB interface on the A06B-6105-H002?
The FANUC Serial Servo Bus (FSSB) operates as a high-speed optical fiber serial link with a servo cycle time as low as 0.5 ms (500 µs) on compatible FANUC 30i/31i-B CNC controllers. This deterministic, low-latency communication ensures that position commands and feedback data are exchanged within each interpolation cycle, making the A06B-6105-H002 suitable for high-speed, high-precision machining applications where servo lag would result in contour errors.

Q2: Is the A06B-6105-H002 compatible with PROFIBUS or EtherNet/IP networks?
The A06B-6105-H002 natively communicates via FSSB and does not include a built-in PROFIBUS or EtherNet/IP interface. However, protocol bridging is achievable through FANUC’s PMC I/O Link interface combined with third-party gateways such as the HMS Anybus Communicator or Moxa MGate series, which translate FANUC I/O Link or FOCAS2 data into PROFIBUS-DP, EtherNet/IP, or Modbus TCP frames for integration with Siemens, Rockwell, or Schneider control architectures.

Q3: How is network stability maintained in multi-axis FSSB configurations?
FSSB uses a daisy-chained fiber optic topology, which provides inherent immunity to electromagnetic interference (EMI) — a critical advantage in environments with large servo motors, VFDs, and high-current switching equipment. The CNC controller continuously monitors the FSSB link status and will generate a specific alarm (e.g., SV0001 FSSB: error of axis) if communication is interrupted, enabling rapid fault isolation. ZYPLC recommends using FANUC-specified fiber optic cables and connectors to maintain signal integrity across all axes.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every A06B-6105-H002 unit supplied by ZYPLC is tested prior to shipment using a FANUC-compatible servo test bench that verifies FSSB communication handshake, power stage operation, regenerative braking circuit, and alarm code status. The 12-month warranty covers failures attributable to manufacturing defects, component degradation, or communication interface faults under normal operating conditions. Warranty claims are processed via direct RMA with ZYPLC’s technical support team. Contact us at [email protected] or +86 19859288691 for warranty registration and support.
