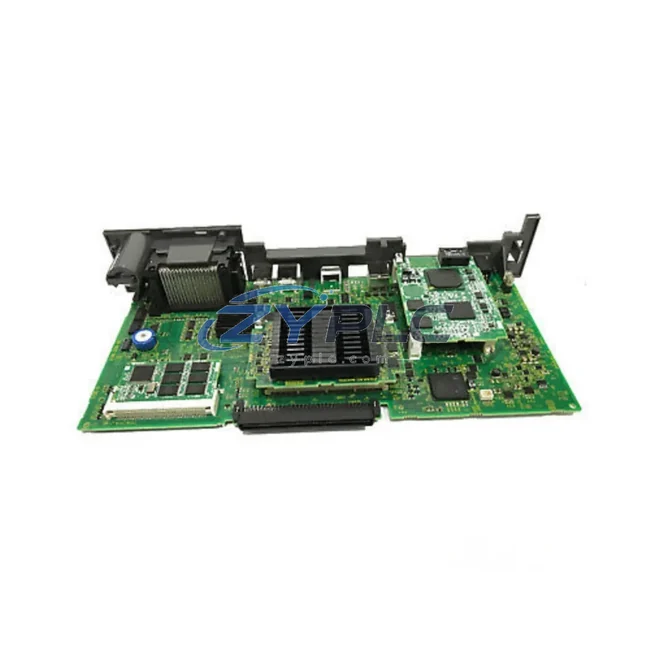

FANUC A16B-3200-0810 CNC Controller PCB R-30iB

FANUC A16B-3200-0810 CNC Controller PCB for R-30iB Plus Automation

The FANUC A16B-3200-0810 is a high-performance CNC controller PCB engineered for the FANUC R-30iB Plus robot controller platform. Designed to serve as the central processing backbone of FANUC’s flagship industrial robot controller, this board directly governs servo command execution, I/O signal arbitration, and real-time motion interpolation — all of which are critical levers for reducing unnecessary energy consumption across automated production lines.

In modern manufacturing environments where energy costs and equipment utilization rates are under constant scrutiny, the A16B-3200-0810 plays a pivotal role. By maintaining precise synchronization between the robot controller’s CPU functions and the downstream servo amplifier modules — such as the FANUC A06B-6240 series servo amplifiers — this PCB ensures that motor torque output is matched exactly to load demand, eliminating the unplanned downtime associated with over-driven or poorly regulated servo axes.

When integrated within a complete FANUC R-30iB Plus cabinet, the A16B-3200-0810 works in concert with the FANUC A16B-3200-0811 main CPU board and the FANUC A20B-8200-0548 power supply unit to form a tightly coupled control architecture. This architecture enables the controller to dynamically adjust power delivery based on real-time cycle demands, reducing idle-state power draw and improving overall energy efficiency during multi-shift production operations.

Product Specification Table

System Compatibility and Application

The A16B-3200-0810 does not operate in isolation — its maintenance planning value is best understood within the context of the full FANUC R-30iB Plus control architecture. At the drive layer, the board interfaces with FANUC A06B-6240-H103 and A06B-6240-H106 servo amplifier modules, which regulate current delivery to the robot’s servo motors. When the main PCB issues precise, low-latency motion commands, the amplifiers can operate within their optimal efficiency band, avoiding the thermal losses and energy spikes that result from imprecise command timing.

At the I/O layer, the A16B-3200-0810 coordinates with FANUC A03B-0819-C001 I/O modules to manage peripheral device signaling — including end-of-arm tooling, safety interlocks, and conveyor synchronization signals. Efficient I/O arbitration reduces unnecessary polling cycles and keeps the controller’s processing load balanced, which in turn reduces the thermal output of the PCB itself and extends component service life.

For facilities running FANUC robots alongside CNC machine tools, the A16B-3200-0810 supports integration with FANUC Series 0i-MF and 30i-B CNC controllers via FANUC’s proprietary FSSB (FANUC Serial Servo Bus) and high-speed DI/DO interfaces. This cross-platform compatibility allows engineers to implement coordinated motion profiles between robot and machine tool axes, reducing cycle time overlap and the associated unplanned downtime from simultaneous peak-load events.

Power quality monitoring is further enhanced when the R-30iB Plus cabinet is equipped with the FANUC A02B-0323-B502 teach pendant and connected to a plant-level SCADA or maintenance planning system via PROFINET or EtherNet/IP communication modules. Real-time energy consumption data can be logged and analyzed to identify inefficient motion patterns, enabling continuous improvement of robot programs for lower per-cycle energy cost.

At the power supply level, the FANUC A20B-8200-0548 PSU works alongside the A16B-3200-0810 to provide stable, regulated DC bus voltage to all controller subsystems. A stable DC bus is essential for preventing voltage sag events that force servo amplifiers to draw compensatory current spikes — a common but often overlooked source of unplanned downtime in aging robot controller installations.

Maintenance and Replacement Notes

In automotive body welding lines, where FANUC robots operate in tightly choreographed multi-robot cells, the A16B-3200-0810 enables the R-30iB Plus controller to execute smooth, jerk-minimized motion trajectories. Jerk-minimized paths reduce peak torque demand on servo motors, which directly lowers peak current draw from the servo amplifiers and reduces heat generation across the drive system. Over a three-shift production schedule, this translates into measurable reductions in electricity consumption per vehicle body produced.

In electronics assembly environments, where robots perform high-speed pick-and-place operations, the PCB’s real-time interpolation engine ensures that acceleration and deceleration ramps are precisely calculated for each payload condition. This prevents the common inefficiency of applying maximum acceleration to light payloads — a scenario that wastes energy and accelerates mechanical wear on joint reducers and bearings.

For facilities managing mixed fleets of FANUC robots, the A16B-3200-0810’s compatibility with FANUC’s iRCalibration and ROBOGUIDE simulation software allows maintenance engineers to validate replacement boards offline before installation, minimizing production downtime during controller maintenance events. Reduced downtime directly improves Overall Equipment Effectiveness (OEE) — a key metric for energy efficiency, since idle or stopped equipment that remains energized continues to consume standby power without producing output.

Predictive maintenance strategies are also supported through the board’s integration with FANUC’s FIELD system (FANUC Intelligent Edge Link and Drive), which enables condition monitoring of controller hardware health indicators. Early detection of PCB degradation — such as capacitor aging or clock drift — allows maintenance teams to schedule replacements during planned downtime windows rather than responding to unplanned failures, which typically result in extended recovery periods and associated unplanned downtime from restarting cold production lines.

All units supplied by ZYPLC undergo full functional testing prior to shipment, including servo command output verification, I/O signal integrity checks, and communication bus validation. This pre-shipment testing protocol ensures that replacement boards perform to OEM specification from the first power-on, avoiding the energy and time costs associated with commissioning a faulty or marginal board in a live production environment. Every A16B-3200-0810 is backed by a 12-month quality warranty, providing procurement teams with the confidence to plan maintenance budgets without contingency for early board failure.

Product Sourcing FAQ

Q1: How does the A16B-3200-0810 contribute to reducing energy consumption in a FANUC robot cell?
The A16B-3200-0810 governs real-time motion interpolation and servo command timing within the R-30iB Plus controller. By issuing precise, low-latency commands to the servo amplifier modules, it ensures that motor torque output is matched to actual load requirements at each point in the motion cycle. This eliminates over-torque events and reduces the reactive current draw that occurs when servo drives compensate for imprecise command inputs — resulting in lower per-cycle energy consumption across the robot cell.

Q2: Is the A16B-3200-0810 compatible with both the R-30iB and R-30iB Plus controller cabinets?
The A16B-3200-0810 is primarily designed and validated for the FANUC R-30iB Plus platform. Compatibility with earlier R-30iB cabinets depends on the specific hardware revision and firmware version of the target controller. We recommend providing your controller’s full cabinet serial number and software version when inquiring, so our technical team can confirm compatibility before shipment.

Q3: What testing does each unit undergo before shipment, and what does the warranty terms confirmed during quotation cover?
Every A16B-3200-0810 supplied by ZYPLC undergoes a full functional burn-in test, including servo command output verification, I/O signal integrity validation, and communication bus testing. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, voltage surges, or use outside the specified operating environment. Warranty claims are processed with priority turnaround to minimize production impact.

Q4: Can this PCB be used as a direct replacement without reprogramming the robot controller?
In most cases, the A16B-3200-0810 can be installed as a direct hardware replacement within a compatible R-30iB Plus cabinet without requiring a full system reprogram. However, it is standard practice to back up the controller’s system software, robot programs, and calibration data before any PCB replacement. FANUC’s standard boot and initialization sequence will verify hardware integrity on first power-up. Our technical support team can provide guidance on the recommended replacement procedure for your specific robot model and software version.
