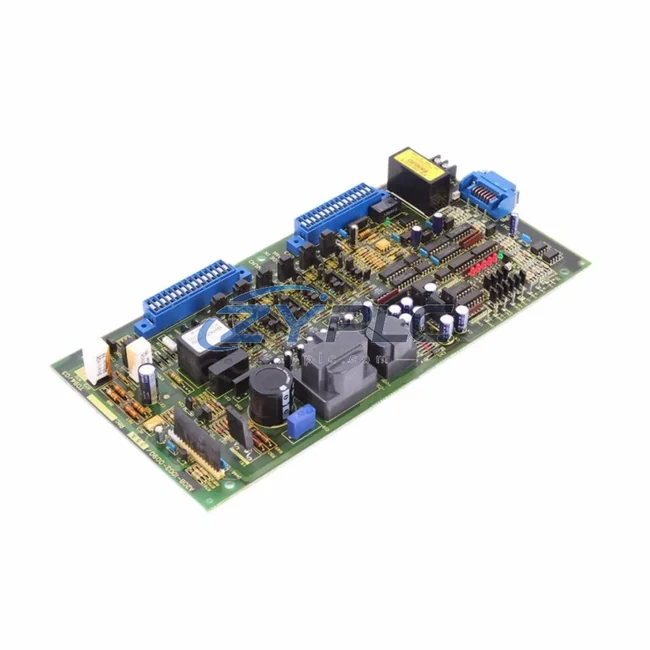

FANUC A20B-1003-0090/05A Drive Control for CNC Series

FANUC A20B-1003-0090/05A Drive Control Card: Compatibility and Replacement Notes

In a fully integrated CNC control architecture, every module must perform its role with precision while maintaining seamless coordination with adjacent layers. The FANUC A20B-1003-0090/05A Drive Control Card occupies a critical position within the servo drive layer of FANUC CNC Series systems, acting as the intelligence bridge between the CNC controller and the servo amplifier stage. Rather than functioning as a standalone component, this card is engineered to operate within a structured control hierarchy — from the CNC CPU unit at the top, through the I/O and communication layers, down to the servo drives and spindle motors that execute motion commands on the machine floor.

The A20B-1003-0090/05A integrates directly with FANUC’s established CNC platform architecture, ensuring that signal flow from the controller to the drive stage is consistent, low-latency, and fault-tolerant. In multi-axis machining environments, this card supports coordinated axis control, enabling the CNC system to manage interpolation, feedrate override, and position feedback loops without signal degradation. Its role in maintaining system consistency is particularly important in high-speed cutting applications where microsecond-level timing between the control card and the servo amplifier — such as the FANUC A06B-6096 or A06B-6114 series amplifiers — directly affects surface finish quality and dimensional accuracy.

Product Specification Table

System Compatibility Notes

The FANUC A20B-1003-0090/05A does not operate in isolation. Its value is realized only when it is correctly positioned within a complete CNC control system architecture. At the controller level, the FANUC A16B-3200 or A16B-2202 CPU boards provide the master processing environment, issuing interpolation commands and managing the overall CNC execution cycle. The A20B-1003-0090/05A receives these commands and translates them into precise drive signals directed at the servo amplifier stage.

On the power supply side, the FANUC A20B-1004 or A20B-2002 series power supply boards ensure stable DC voltage rails for the control card and adjacent logic boards. Voltage instability at this layer directly impacts drive card performance, making power supply selection a critical architectural decision. The drive control card also interfaces with the FANUC A20B-1000 series I/O boards, which handle discrete signal exchange between the CNC controller and peripheral devices such as tool changers, coolant systems, and safety interlocks.

For multi-axis systems, the A20B-1003-0090/05A works in conjunction with FANUC servo amplifier modules — including the A06B-6096, A06B-6114, and A06B-6130 series — to deliver coordinated motion across X, Y, Z, and rotary axes. The FSSB (Fiber-optic Servo Serial Bus) communication backbone ensures that command and feedback signals between the drive control card and the amplifiers are transmitted with minimal latency and high noise immunity, which is essential in environments with significant electromagnetic interference from spindle drives and high-current switching equipment.

At the human-machine interface layer, FANUC MDI/CRT units and FS-series operator panels connect to the CNC system through dedicated interface boards, providing operators with real-time axis position data, alarm status, and program execution feedback. The drive control card’s health directly influences the accuracy of position data displayed at the HMI, making it a key diagnostic reference point during system commissioning and fault analysis. For systems requiring expanded I/O capability, FANUC I/O Link modules and distributed I/O units extend the signal reach of the control architecture without adding latency to the servo control loop.

Industrial Application Notes

The FANUC A20B-1003-0090/05A Drive Control Card finds application across a wide range of industrial sectors where CNC machining forms the backbone of production. In precision manufacturing environments — including aerospace component machining, automotive die and mold production, and medical device fabrication — this card supports the high-accuracy servo control required for tight-tolerance work. Its compatibility with FANUC 0-Series and 10/11/15-Series CNC platforms means it can be deployed in both legacy machine retrofits and ongoing maintenance programs for existing production lines.

In the power generation and heavy equipment sectors, CNC machines equipped with FANUC control systems are used for turbine blade profiling, large-diameter shaft turning, and structural component milling. The A20B-1003-0090/05A provides the drive control stability needed for long-cycle, high-load cutting operations where thermal drift and mechanical vibration must be compensated through precise servo feedback. In packaging and food processing machinery, where machine uptime is directly tied to production throughput, having a verified replacement drive control card in inventory reduces unplanned downtime from hours to minutes.

For petrochemical and process industry applications, CNC machining centers equipped with FANUC systems produce valve bodies, pump housings, and pressure vessel components to exacting standards. The drive control card’s role in maintaining axis synchronization ensures that complex contoured surfaces meet dimensional specifications without manual intervention. In mining and metallurgical equipment manufacturing, where component sizes and cutting forces are extreme, the robustness of the FANUC drive control architecture — anchored by cards like the A20B-1003-0090/05A — provides the system reliability required for continuous production environments.

Product Compatibility FAQ

Q1: Is the FANUC A20B-1003-0090/05A compatible with both 0-Series and 10/11/15-Series CNC systems?
A: Yes. The A20B-1003-0090/05A is designed for use across multiple FANUC CNC Series platforms, including the 0, 0-C, 0-D, 10, 11, and 15 Series. However, system compatibility should always be verified against the specific machine’s electrical drawings and FANUC system configuration documentation before installation. Our technical team can assist with compatibility verification prior to shipment.

Q2: How does this drive control card integrate with the FANUC FSSB servo communication architecture?
A: The A20B-1003-0090/05A interfaces with the FANUC Fiber-optic Servo Serial Bus (FSSB) architecture, which provides high-speed, noise-immune communication between the CNC controller and servo amplifier modules. This integration ensures that axis command and position feedback signals are transmitted with the timing precision required for multi-axis coordinated motion. Proper FSSB configuration, including fiber-optic cable routing and amplifier address assignment, is essential during system commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for installation and commissioning?
A: The warranty terms confirmed during quotation covers full functional performance of the A20B-1003-0090/05A from the date of shipment. If the card fails to perform its specified drive control functions under normal operating conditions within the warranty period, we provide replacement or repair at no additional cost. Pre-shipment functional testing is conducted on all units. Our engineering support team is available to assist with installation guidance, parameter configuration, and system commissioning questions throughout the warranty period. Contact us at plc.sales@zyplc.com or +86 19859288691.
