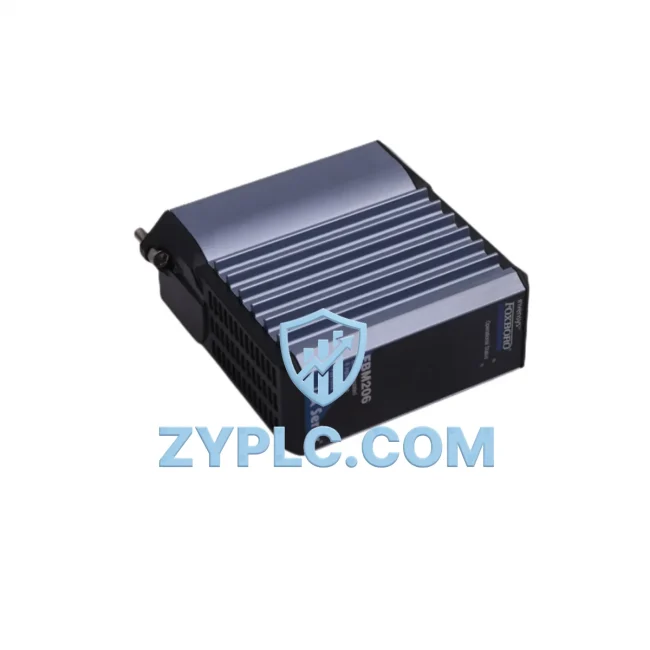

FOXBORO FBM206 Industrial Network Interface for I/A Series Systems

FOXBORO FBM206 Industrial Network Interface for I/A Series Systems: Enabling Real-Time Data Flow Across Smart Factory Networks

The FOXBORO FBM206 is a Channel Isolated 8-Input Pulse Module engineered for the Foxboro I/A Series Distributed Control System (DCS), delivering high-integrity pulse signal acquisition and seamless integration across industrial communication networks. Designed for demanding process automation environments — including oil & gas, chemical, power generation, and water treatment — the FBM206 serves as a critical node in the data chain that connects field instrumentation to supervisory control layers. With its robust channel isolation architecture, the module ensures signal fidelity even in electrically noisy plant environments, making it a trusted component for engineers building reliable, scalable, and transparent production systems.

In modern smart factory deployments, the FBM206 does not operate in isolation. It functions as an integral element of a broader industrial connectivity architecture, bridging field-level pulse signals — from flow meters, turbine sensors, and proximity switches — into the I/A Series DCS network where data is processed, aggregated, and distributed to SCADA platforms, HMI workstations, and MES systems. Its compatibility with the Foxboro I/A Series fieldbus infrastructure ensures low-latency, deterministic data delivery that meets the demands of real-time process monitoring and closed-loop control.

Network Communication Table

Connected Automation Data Flow

The FOXBORO FBM206 sits at the foundation of a layered industrial data architecture. At the field level, pulse-output devices — such as vortex flow transmitters, turbine flow meters, and magnetic proximity sensors — feed raw frequency signals into the FBM206’s eight isolated input channels. The module conditions and digitizes these signals before transmitting structured process data upstream through the I/A Series Nodebus to the DCS controller layer, typically managed by processors such as the FCP270 Field Control Processor or the ZCP270 Zone Control Processor. These controllers execute real-time control algorithms and pass data to the plant-wide communication backbone.

From the controller layer, process values flow into the I/A Series workstation environment, where Foxboro IACC (I/A Series Application Control Configuration) software and FoxView HMI workstations provide operators with real-time visualization, alarm management, and trend analysis. Simultaneously, data is forwarded to enterprise-level SCADA platforms via OPC-DA or OPC-UA gateways — often implemented through Foxboro Evo Process Automation System integration modules — enabling plant managers to monitor KPIs, energy consumption, and throughput from centralized control rooms or remote locations.

In multi-node DCS architectures, the FBM206 works alongside complementary I/O modules such as the FBM201 (Analog Input), FBM202 (Analog Output), FBM207 (Digital Input), and FBM217 (Digital Output) to form a complete field I/O subsystem. These modules share the same I/A Series baseplate and communicate through a unified Nodebus segment, ensuring synchronized data acquisition across analog, digital, and pulse signal types. For remote I/O applications in distributed plant areas, the FCM10E Field Control Module extends the DCS network over fiber optic links, maintaining signal integrity across long cable runs in large-scale facilities.

At the edge, industrial Ethernet switches — such as those in the Hirschmann MICE or Moxa EDS series — provide the network infrastructure that connects DCS workstations, engineering terminals, and historian servers within the plant LAN. Data historians, including OSIsoft PI System or Wonderware Historian, archive time-series process data from the I/A Series DCS for long-term trend analysis, regulatory compliance reporting, and predictive maintenance applications. This end-to-end data chain — from the FBM206 pulse input channel to the enterprise data historian — forms the backbone of a fully connected, data-driven smart factory.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is data isolation — the inability to move information seamlessly between field instruments, control systems, and supervisory platforms. The FOXBORO FBM206 directly addresses this challenge by providing a standardized, protocol-compliant interface between pulse-generating field devices and the I/A Series DCS communication network. Rather than relying on manual data collection or standalone data loggers, the FBM206 enables continuous, automated pulse data acquisition that feeds directly into the plant’s control and monitoring infrastructure.

Protocol fragmentation is another common barrier to plant-wide connectivity. In facilities where legacy 4-20mA instrumentation coexists with modern fieldbus devices and Ethernet-based systems, the I/A Series DCS — with the FBM206 as a key I/O node — acts as a protocol normalization layer, converting diverse field signals into a unified data format accessible to SCADA, HMI, and MES platforms. This eliminates the need for standalone protocol converters or custom middleware, reducing system complexity and potential failure points.

Remote monitoring and diagnostics are increasingly critical in modern industrial operations. The FBM206’s integration within the I/A Series DCS enables remote access to channel-level diagnostics, module health status, and process variable trends through the DCS engineering workstation or remote SCADA clients. Maintenance teams can identify signal faults, channel failures, or out-of-range conditions without physical access to the field cabinet, reducing mean time to repair (MTTR) and minimizing unplanned downtime. For production line transparency, the FBM206 contributes real-time flow and pulse count data to dashboards and reporting tools, giving operations teams the visibility needed to optimize throughput, detect process deviations early, and support continuous improvement initiatives.

System scalability is built into the I/A Series architecture. As production capacity expands or new process units are added, additional FBM206 modules and companion I/O cards can be integrated into existing DCS baseplates without disrupting ongoing operations. This modular expansion capability protects capital investment and ensures that the control system can grow alongside the facility’s operational requirements.

Industrial Connectivity FAQ

Q1: What communication protocol does the FOXBORO FBM206 use, and is it compatible with third-party SCADA systems?
The FBM206 communicates via the Foxboro I/A Series Nodebus protocol, which is the proprietary fieldbus used within the I/A Series DCS architecture. Integration with third-party SCADA systems — such as Wonderware InTouch, Ignition, or GE iFIX — is achieved through OPC-DA or OPC-UA server interfaces provided by the I/A Series DCS workstation software, ensuring broad SCADA compatibility without requiring custom protocol converters.

Q2: How does the FBM206 ensure network stability and data integrity in electrically noisy plant environments?
The FBM206 features channel-to-channel isolation on all eight pulse input channels, preventing ground loops and electrical interference from propagating between channels or into the DCS network. This isolation architecture, combined with the deterministic communication timing of the I/A Series Nodebus, ensures stable, low-latency data transmission even in high-noise industrial environments such as motor control centers, variable frequency drive (VFD) panels, and high-voltage switchgear areas.

Q3: Can the FBM206 be integrated into an existing I/A Series DCS without system downtime?
Yes. The FBM206 is designed for hot-swap installation within compatible I/A Series baseplates, allowing module replacement or addition without shutting down the DCS controller or interrupting ongoing process control. Configuration is performed through the I/A Series system configuration tools, and the new module is recognized and commissioned online, minimizing disruption to production operations.

Q4: What quality assurance and warranty coverage is provided with the FBM206?
Every FOXBORO FBM206 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify channel isolation integrity, pulse input response, and communication protocol compliance. All units are covered by a 12-month warranty against manufacturing defects and operational failures. In-stock inventory ensures prompt global shipping, and our technical team provides post-sale support for installation, configuration, and system integration queries.
