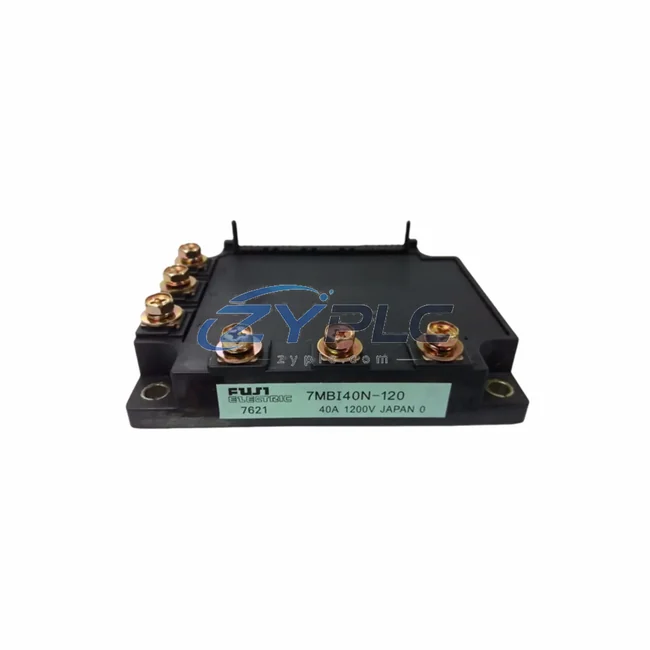

Fuji Electric 7MBI40N-120 IGBT Module for Drive

Fuji Electric 7MBI40N-120 IGBT Module for Drive: Compatibility and Replacement Notes

In modern industrial automation, the integrity of a control system depends not on any single component, but on the coherent coordination of every layer — from the CPU and power supply down through I/O modules, communication gateways, HMI panels, and ultimately to the power conversion stage where the Fuji Electric 7MBI40N-120 IGBT module operates. This 1200V / 40A six-pack IGBT module is engineered for seamless integration into variable frequency drive (VFD) inverter bridges, servo amplifier output stages, and regenerative converter topologies. Its role within the broader control architecture is not merely to switch current — it is to serve as the reliable, thermally stable, and electrically consistent power interface between the digital control layer and the mechanical execution layer.

The 7MBI40N-120 belongs to Fuji Electric’s mature N-series IGBT platform, a family recognized across the industrial automation sector for its robust short-circuit withstand capability, low saturation voltage (V_CE(sat)), and integrated freewheeling diodes optimized for hard-switching inverter topologies. When deployed within a coordinated drive system, this module interfaces directly with gate driver boards that receive PWM signals from the drive’s DSP control card — itself synchronized with higher-level commands from a PLC CPU such as those in the Fuji Electric MICREX-SX or MICREX-F series. The signal chain from PLC output to motor shaft rotation passes through this module, making its electrical consistency a prerequisite for system-level performance.

Product Specification Table

System Compatibility Notes

The 7MBI40N-120 does not operate in isolation. In a complete drive system architecture, it sits at the intersection of the control layer and the execution layer, and its performance is directly influenced by — and directly influences — every adjacent subsystem. A well-engineered drive cabinet built around this module typically includes the following coordinated components:

At the control layer, a Fuji Electric MICREX-SX SPH series CPU module or equivalent PLC processor issues motion commands via high-speed pulse or analog reference to the drive’s control card. The drive’s internal DSP translates these commands into PWM gate signals delivered to the 7MBI40N-120 through an isolated gate driver board. Modules such as the Fuji Electric 7MBR25SA120 or 7MBR50SA120 from the same N/SA-series family serve as direct architectural peers, covering different current ratings within the same drive platform.

At the power supply layer, a regulated DC bus — typically derived from a three-phase rectifier or active front-end converter — feeds the collector terminals of the 7MBI40N-120. Bus capacitor banks and DC link chokes stabilize the intermediate voltage, while inrush limiters and pre-charge circuits protect the module during startup sequences. In redundant drive architectures, a standby power module such as the Fuji Electric 7MBI75N-120 (higher current variant) may be installed in parallel configuration with automatic changeover logic managed by the PLC.

At the I/O and signal layer, analog input modules from the MICREX-SX NP1AD series capture motor current feedback and thermal sensor signals, feeding real-time data back to the CPU for closed-loop torque and speed regulation. Digital output modules trigger contactor coils, cooling fan relays, and fault indication circuits. The Fuji Electric 7MBI40N-060 (600V variant) may be deployed in parallel low-voltage drive cabinets within the same production line, sharing the same PLC network and SCADA supervision layer.

At the communication layer, PROFIBUS-DP or Modbus RTU gateways connect the drive system to the plant DCS or SCADA server, enabling remote parameter monitoring, fault logging, and predictive maintenance scheduling. The 7MBI40N-120’s gate driver interface is compatible with standard isolated driver ICs, ensuring that communication-triggered emergency stop commands propagate to the power stage within microseconds.

At the HMI layer, operator panels — such as Fuji Electric’s UG series touch panels — display real-time drive status, output frequency, DC bus voltage, and module junction temperature estimates. Alarm thresholds tied to the IGBT’s thermal model are configured directly in the PLC program, enabling proactive maintenance before thermal stress accumulates.

Related modules frequently deployed in the same control cabinet or drive system include the Fuji Electric 7MBI100N-120 for higher-power spindle drives, the Fuji Electric 2MBI100N-120 chopper module for braking resistor control, and the Fuji Electric EUG75-060 gate driver unit for standardized driver board replacement. Together, these components form a coherent, maintainable, and scalable drive architecture.

Industrial Application Notes

The 7MBI40N-120 finds application across a wide spectrum of industrial sectors where reliable, high-frequency power switching is essential to process continuity:

In manufacturing and packaging lines, this module drives conveyor motors, servo-controlled indexing tables, and tension-controlled winding systems. Its low switching loss at mid-range frequencies (4–16 kHz) makes it suitable for applications where acoustic noise reduction and energy efficiency are both priorities.

In power generation and electrical utilities, the 7MBI40N-120 is deployed in static VAR compensators (SVCs), active power filters, and UPS inverter stages. Its 1200V blocking voltage provides adequate margin for 690V AC bus applications with standard derating.

In petrochemical and process industries, pump and compressor drives built around this module operate continuously in harsh environments. The module’s transfer-mold package provides superior resistance to humidity and vibration compared to open-frame alternatives, reducing unplanned downtime in critical process loops.

In water treatment and municipal infrastructure, variable-speed pump drives using the 7MBI40N-120 enable precise flow control, reducing energy consumption by 30–50% compared to throttle-valve regulation. PLC-coordinated soft-start sequences protect both the module and the mechanical pump from inrush stress.

In mining and metallurgy, high-cycle duty applications such as ore crushers, ball mills, and conveyor belt drives demand IGBT modules with proven short-circuit ruggedness. The N-series platform’s 10µs short-circuit withstand time provides the protection window required by modern gate driver protection circuits.

Product Compatibility FAQ

Q1: Is the 7MBI40N-120 compatible with existing Fuji Electric drive platforms and gate driver boards?
A: Yes. The 7MBI40N-120 uses a standard transfer-mold six-pack footprint compatible with Fuji Electric FRN-series and FRENIC-series drive platforms. Gate driver boards designed for the N-series IGBT family — including those using the M57962L or equivalent isolated driver IC — are directly compatible. Always verify V_GE drive voltage (typically +15V / -8V) and gate resistance values against the module’s datasheet before installation to ensure optimal switching performance and protection coordination.

Q2: How does this module support redundant drive architecture and long-term maintenance planning?
A: In redundant drive configurations, a spare 7MBI40N-120 can be held in inventory as a hot-standby replacement, with changeover managed by the PLC’s fault detection and contactor switching logic. The module’s standardized footprint and consistent V_CE(sat) characteristics mean that replacement units can be installed without recalibrating gate driver timing. Our warranty terms confirmed during quotation covers all supplied modules, and we recommend maintaining a minimum of one spare per drive cabinet for critical process applications to minimize mean time to repair (MTTR).

Q3: What installation and commissioning checks are required when integrating the 7MBI40N-120 into a new or retrofit drive system?
A: Prior to installation, verify DC bus voltage levels, gate driver supply voltages, and thermal interface material application on the heatsink mounting surface. During commissioning, perform a static gate test to confirm all six IGBT and diode junctions are functional before applying DC bus voltage. Monitor junction temperature rise during initial load testing and confirm that the thermal resistance path (module-to-heatsink) meets the manufacturer’s specification. All modules supplied by ZYPLC are pre-tested under load conditions and include a test report upon request, backed by our warranty terms confirmed during quotation for complete integration confidence.
