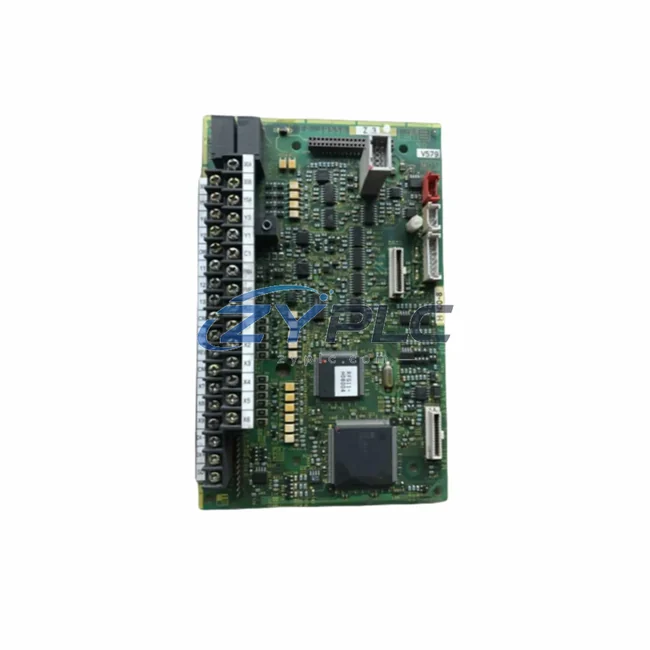

Fuji Electric EP-3955B Motherboard for FRENIC Series

Fuji Electric EP-3955B Motherboard for FRENIC Series

The Fuji Electric EP-3955B is a high-power inverter motherboard engineered for seamless integration within FRENIC-series variable frequency drive (VFD) systems. Rather than functioning as a standalone replacement component, the EP-3955B is designed as a system-critical element that anchors the control architecture of industrial automation environments. Its role spans the control layer, I/O signal processing layer, and communication interface layer, making it an indispensable component for engineers who demand consistent drive performance, long-term maintainability, and scalable system design.

In modern industrial automation, the reliability of a drive system depends not only on the power stage but on the integrity of the motherboard that governs signal routing, parameter management, and inter-module communication. The EP-3955B fulfills this role within the FRENIC Multi, FRENIC-Ace, and FRENIC-MEGA drive families, providing the foundational logic that coordinates between the power module, the keypad interface, and the external control signals from PLCs or DCS systems.

Product Specification Table

System Compatibility Notes

The EP-3955B does not operate in isolation. Its value is realized when it is deployed as part of a coordinated control system where each layer communicates reliably with the next. In a typical FRENIC-based automation cell, the EP-3955B motherboard interfaces directly with the FRENIC drive’s power module and gate driver board, receiving feedback signals and translating them into actionable control outputs. This tight integration ensures that the drive responds accurately to speed references, torque commands, and fault conditions issued from the upper control layer.

At the control layer, the EP-3955B works in conjunction with Fuji Electric’s PLC platforms such as the MICREX-SX series or third-party controllers connected via RS-485 or PROFIBUS-DP communication cards. The motherboard’s parameter memory retains drive configuration data, enabling rapid recommissioning after maintenance without requiring full reprogramming from the HMI or engineering workstation.

The I/O layer is served through the EP-3955B’s terminal interface, which supports analog input signals (0–10V, 4–20mA) for speed reference and digital inputs for run/stop, forward/reverse, and multi-step frequency commands. These signals are typically sourced from Fuji Electric’s relay output modules or third-party I/O expansion units mounted in the same control cabinet. The EP-3955B processes these signals with high noise immunity, which is critical in environments where variable-speed drives share enclosures with contactors, circuit breakers, and power distribution components.

For network-layer integration, the EP-3955B supports optional communication expansion cards that enable MODBUS RTU, DeviceNet, or PROFIBUS-DP connectivity. This allows the FRENIC drive to participate in plant-wide SCADA systems or distributed control architectures where the drive’s operating status, fault codes, and energy consumption data are monitored in real time. The motherboard’s communication stack is compatible with Fuji Electric’s FRENIC Loader software, enabling parameter upload/download and drive diagnostics from a connected PC.

In redundant system designs, the EP-3955B supports hot-standby configurations where a spare drive unit—pre-loaded with identical parameters—can be switched in with minimal downtime. This is particularly relevant in critical process applications such as pump stations, compressor drives, and conveyor systems where downtime carries significant operational cost. The motherboard’s parameter storage capability is central to this redundancy strategy, as it ensures that the replacement unit can be brought online with the same tuning and configuration as the primary drive.

Related components that are commonly deployed alongside the EP-3955B in FRENIC-based control systems include the Fuji Electric TP-E1-U2 keypad panel for local parameter access, the OPC-G1-PDP PROFIBUS-DP communication card for fieldbus integration, the Fuji Electric FRENIC-Ace FRN series power modules for the drive’s output stage, the DB unit (dynamic braking resistor assembly) for deceleration maintenance planning, and the Fuji Electric MICREX-SX SPH series CPU module for upper-level sequence control. Terminal block assemblies, shielded signal cables, and EMC filter units complete the installation and ensure compliance with industrial electromagnetic compatibility standards.

Industrial Application Notes

The EP-3955B finds application across a broad range of industrial sectors where variable-speed drive systems are integral to process control. In manufacturing and packaging lines, the motherboard enables precise speed synchronization between multiple drive axes, supporting conveyor tracking, tension control, and coordinated motion profiles. In water treatment and pumping stations, the EP-3955B’s reliable communication interface allows the drive to respond to flow demand signals from SCADA systems, adjusting pump speed in real time to optimize energy consumption and maintain system pressure.

In the power generation and distribution sector, FRENIC drives equipped with the EP-3955B motherboard are used to control cooling fans, auxiliary pumps, and excitation systems in power plants. The motherboard’s fault logging capability provides maintenance teams with detailed diagnostic data, reducing mean time to repair (MTTR) and supporting predictive maintenance programs. In petrochemical and oil refining applications, the EP-3955B’s robust design and Japan-origin manufacturing quality meet the stringent reliability requirements of continuous process environments where drive failures can trigger costly production shutdowns.

Mining and metallurgical applications benefit from the EP-3955B’s ability to handle high-inertia loads and frequent start-stop cycles. The motherboard’s parameter management ensures that drive tuning is preserved across power cycles, which is essential in remote mining sites where engineering support may not be immediately available. In HVAC and building automation systems, the EP-3955B enables maintenance-focused fan and pump control, contributing to building maintenance planning objectives and compliance with green building standards.

Product Compatibility FAQ

Q1: Is the EP-3955B compatible with all FRENIC series drives, and can it be used as a direct replacement in existing installations?
The EP-3955B is designed for specific FRENIC drive models within the FRENIC Multi, FRENIC-Ace, and FRENIC-MEGA families. Compatibility depends on the drive’s power rating, firmware version, and hardware revision. Before installation, engineers should verify the target drive’s model number and cross-reference it with Fuji Electric’s spare parts compatibility matrix. In most cases, the EP-3955B can be installed as a direct replacement without modifications to the drive enclosure or external wiring, provided the drive’s power stage and gate driver board are in serviceable condition.

Q2: How does the EP-3955B support long-term maintenance and system uptime in critical process applications?
The EP-3955B’s non-volatile parameter memory retains all drive configuration data even after power loss, enabling rapid recommissioning after a motherboard replacement. This feature is central to the support strategy, as it allows maintenance teams to restore drive operation quickly without requiring the original commissioning engineer. For facilities that maintain a spare drive inventory, pre-loading the EP-3955B with the production drive’s parameter set ensures that the spare unit can be deployed immediately in the event of a failure, minimizing process downtime.

Q3: What communication protocols does the EP-3955B support, and how does it integrate with plant-level SCADA or DCS systems?
The EP-3955B natively supports RS-485 serial communication using the MODBUS RTU protocol, which is compatible with the majority of industrial SCADA and DCS platforms. For facilities that require fieldbus integration, optional communication expansion cards enable PROFIBUS-DP, DeviceNet, or CANopen connectivity. The motherboard’s system integration capability ensures that drive status data, fault codes, and energy metrics are available to the plant control system in real time, supporting both operational monitoring and predictive maintenance workflows. Configuration and diagnostics are performed using Fuji Electric’s FRENIC Loader PC software, which communicates with the drive via the RS-485 port or USB adapter.
