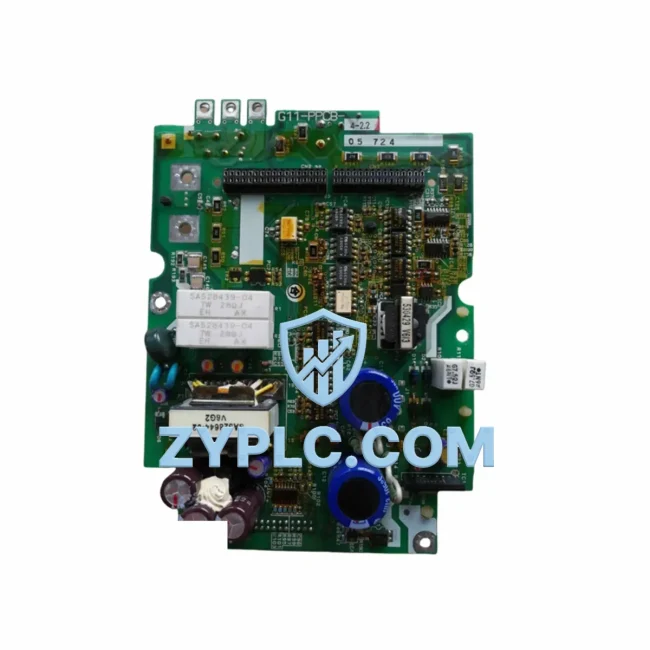

Fuji G11-PPCB-4-2-2 SA528530-06 Industrial Network Interface for G11 Systems

Fuji G11-PPCB-4-2-2 SA528530-06: Industrial Data Link and Smart Factory Connectivity for G11 Drive Systems

The Fuji G11-PPCB-4-2-2 SA528530-06 is a precision-engineered power PCB designed for the Fuji Electric G11 series variable frequency drive (VFD) platform. Far beyond a simple replacement board, this component serves as the foundational communication and power interface layer within the G11 inverter architecture — enabling seamless data exchange between field-level devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and upper-level management networks in modern smart factory environments.

In industrial automation, the integrity of the data chain from signal acquisition to remote diagnostics determines the efficiency and reliability of the entire production line. The SA528530-06 PCB sits at the heart of this chain within the G11 drive, managing power conversion signals while maintaining stable communication with the drive’s control board — typically the G11-CPCB (control PCB) — to ensure synchronized operation across the inverter’s internal subsystems. When the power board functions correctly, the G11 drive can accurately respond to speed references, torque commands, and fault feedback signals originating from upstream controllers such as Fuji’s own MICREX-SX series PLC or third-party Siemens S7 and Allen-Bradley ControlLogix platforms.

Network Communication Table

Connected Automation Data Flow

Understanding the role of the SA528530-06 requires tracing the full data flow of a G11-based drive system. At the field level, sensors — including encoders, thermocouples, and current transducers — feed real-time process data into the G11 inverter. The power PCB manages the high-voltage switching signals that drive the motor, while simultaneously passing status data upward through the drive’s internal bus to the G11-CPCB control board.

From the control board, drive parameters such as output frequency, DC bus voltage, motor current, and fault status are transmitted via the OPC-G11S-485 RS-485 communication option card to a Modbus RTU network. This network may connect to a Fuji MICREX-SX NS300 PLC acting as the Modbus master, which aggregates data from multiple G11 drives across a production line. The PLC then forwards consolidated process data over PROFIBUS-DP — using the OPC-G11S-PDP option module — to a SCADA gateway such as a Moxa MGate MB3480 or similar industrial protocol converter, bridging the drive network to an Ethernet-based supervisory system.

At the SCADA and HMI layer, operators interact with the system through panels such as the MONITOUCH V9 series HMI or Fuji’s own UG series operator interface, visualizing drive speed trends, alarm histories, and energy consumption data in real time. Remote I/O modules — for example, Fuji FLEX-PC remote I/O units — extend digital and analog signal collection from distributed field points back to the central PLC, ensuring that even geographically dispersed equipment remains visible within the unified data architecture.

For edge computing and predictive maintenance applications, an industrial edge gateway (such as a Siemens SINEMA Remote Connect node or an Advantech ECU-1251 edge controller) can subscribe to drive data streams from the SCADA layer, running local analytics to detect bearing wear patterns or thermal anomalies before they escalate into unplanned downtime. The reliability of this entire data chain depends on the correct functioning of the G11-PPCB-4-2-2 SA528530-06 at its foundation — a faulty power board introduces noise, instability, or complete communication loss that propagates upward through every layer of the automation hierarchy.

Industrial power supplies — such as the Fuji Electric FPS series 24VDC DIN-rail PSU — provide stable auxiliary power to the drive’s control circuitry, ensuring that communication interfaces remain active even during motor deceleration or regenerative braking events. This power stability is critical for maintaining uninterrupted Modbus polling cycles and preventing false fault triggers in the SCADA alarm management system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial environments is protocol fragmentation — where older G11 drives running RS-485 Modbus cannot natively communicate with newer Ethernet/IP or PROFINET-based control systems. The G11-PPCB-4-2-2 SA528530-06, when paired with the appropriate Fuji G11 option communication cards, enables protocol bridging that eliminates these data silos without requiring full drive replacement.

By restoring a failed power PCB and re-enabling the drive’s communication stack, plant engineers can reconnect isolated G11 drives to the plant-wide SCADA network, restoring production line transparency and enabling centralized remote monitoring. This is particularly valuable in multi-drive applications — such as conveyor systems, pump stations, or HVAC plants — where a single failed board can take an entire segment of the network offline, creating blind spots in the supervisory system.

Remote diagnostics become possible once the drive is back on the network: fault codes, thermal readings, and run-hour counters can be polled automatically by the SCADA system, enabling maintenance teams to respond to alarms without physical site visits. System expansion is equally straightforward — additional G11 drives can be added to the Modbus segment by assigning unique slave addresses, with the SCADA gateway automatically discovering new nodes during the next polling cycle.

Production line transparency — the ability to see real-time speed, load, and energy data for every drive on the line — is restored as soon as the SA528530-06 is installed and the drive passes its function test. ZYPLC performs pre-shipment functional testing on all PCB boards to verify communication integrity, power output stability, and fault detection accuracy before dispatch.

Industrial Connectivity FAQ

Q1: Does the G11-PPCB-4-2-2 SA528530-06 support Modbus RTU communication?
Yes. When installed in a Fuji G11 series VFD equipped with the OPC-G11S-485 RS-485 option card, the drive supports Modbus RTU communication at baud rates up to 19,200 bps, enabling integration with PLCs, SCADA systems, and HMI panels that use Modbus as their primary protocol.

Q2: Is this PCB compatible with PROFIBUS-DP networks?
PROFIBUS-DP compatibility is achieved through the Fuji G11 OPC-G11S-PDP option communication card, which interfaces with the drive’s control board. The SA528530-06 power PCB provides the stable power foundation required for the option card to operate reliably within the PROFIBUS network segment.

Q3: What is the warranty and how is the board tested before shipment?
All G11-PPCB-4-2-2 SA528530-06 units supplied by ZYPLC carry a 12-month warranty. Each board undergoes function testing prior to shipment, verifying power output parameters, switching signal integrity, and communication bus continuity to ensure drop-in reliability upon installation.

Q4: Can this board be used to expand an existing G11 drive network?
Yes. Replacing a failed SA528530-06 restores the drive’s full communication capability, allowing it to rejoin an existing Modbus or PROFIBUS network segment. Additional G11 drives can be added to the same network by assigning unique slave addresses, supporting scalable system expansion without infrastructure changes.
