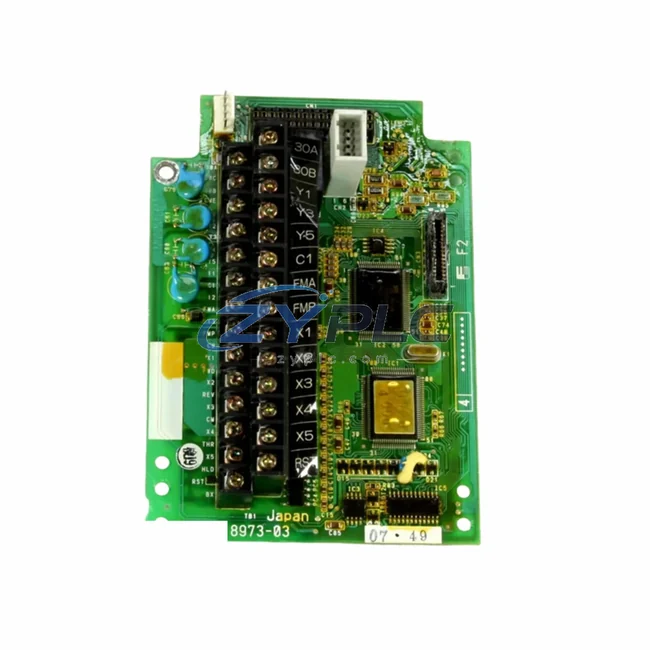

Fuji NRC-2 SA516169-00 Inverter Control Circuit Board for Drive Series

Fuji NRC-2 SA516169-00: Industrial Data Link for Smart Factory Drive Systems

The Fuji Electric NRC-2 SA516169-00 is an inverter control circuit board engineered for seamless industrial network communication within the Fuji Electric Drive Series. Designed to serve as the intelligence layer between field-level devices and upper-level control systems, this board enables reliable protocol conversion, real-time data transmission, and continuous network monitoring across complex automation architectures. Whether deployed in a standalone inverter cabinet or integrated into a multi-node SCADA environment, the SA516169-00 delivers the connectivity backbone that modern smart factories demand.

In today’s industrial landscape, the ability to bridge diverse communication protocols is no longer optional — it is a prerequisite for operational efficiency. The NRC-2 SA516169-00 addresses this need directly, supporting the data flow between field-level sensors, PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and variable frequency drives. Its architecture is optimized for low-latency signal transmission, ensuring that process data from the drive layer reaches the supervisory layer without delay or packet loss.

Compatibility & Integration Notes

Connected Automation Data Flow

The SA516169-00 sits at the heart of a layered industrial communication architecture. At the field level, process signals originate from temperature sensors, pressure transmitters, and proximity switches wired into the drive’s I/O terminals. The NRC-2 board processes these signals and translates them into structured data packets compatible with the plant’s communication backbone.

In a typical Fuji Electric FRENIC-series deployment, the NRC-2 SA516169-00 works in concert with the Fuji OPC-LM1-PR PROFIBUS-DP communication card, enabling the drive to participate in a PROFIBUS network alongside Siemens or Mitsubishi PLCs. For Ethernet-based architectures, the Fuji OPC-ETH Ethernet communication option extends the drive’s connectivity to TCP/IP networks, allowing SCADA systems to poll drive parameters at millisecond intervals.

Remote I/O expansion is handled through modules such as the Fuji EP-4804C remote I/O unit, which aggregates digital and analog signals from distributed field devices and forwards them through the NRC-2 board to the central PLC. HMI panels — including the Fuji UG series HMI — connect via RS-485 Modbus RTU, displaying real-time drive status, fault codes, output frequency, and motor current on the operator interface.

At the supervisory level, SCADA platforms receive structured data from the drive network through industrial gateways such as the Fuji MICREX-SX series PLC or third-party OPC-UA gateways. The NRC-2 board ensures that data integrity is maintained across all network hops, from the drive’s internal registers to the historian database in the control room. Variable frequency drives in adjacent panels — including the Fuji FRENIC-Ace FRN-E2 series and the Fuji FRENIC-Multi FRN-C2 series — share the same communication backbone, enabling coordinated multi-drive control from a single SCADA node.

For edge computing applications, the SA516169-00 integrates with industrial edge gateways that aggregate drive data for cloud-based analytics platforms. The Fuji NRC-3 control board serves as a compatible upgrade path for higher-capacity drive systems, maintaining protocol compatibility with the NRC-2 architecture. Power quality monitoring is supported through the Fuji Electric EP-3300 series power monitoring unit, which connects to the same RS-485 bus and provides harmonic analysis data to the SCADA system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, drives, and control systems operate on incompatible protocols, preventing unified monitoring and control. The Fuji NRC-2 SA516169-00 directly addresses this problem by serving as a protocol bridge between legacy serial networks and modern industrial Ethernet environments.

In brownfield installations where older Modbus RTU devices coexist with newer PROFINET or EtherNet/IP infrastructure, the SA516169-00 enables the drive to communicate across both protocol domains without requiring a complete system overhaul. This preserves existing capital investments while extending the plant’s digital capabilities.

Production line transparency is achieved through continuous data streaming from the drive to the SCADA historian. Parameters including output frequency, motor torque, DC bus voltage, fault history, and thermal load are transmitted in real time, enabling predictive maintenance algorithms to identify degradation trends before they result in unplanned downtime. Remote diagnostics capabilities allow maintenance engineers to interrogate drive parameters from the control room or via VPN-connected laptops, eliminating the need for physical access to the drive cabinet during fault investigation.

System scalability is built into the NRC-2 architecture. As production capacity expands, additional drives equipped with SA516169-00 boards can be added to the network without reconfiguring the existing communication infrastructure. Each new node is automatically recognized by the SCADA system, reducing commissioning time and engineering overhead. All units supplied by ZYPLC undergo pre-shipment functional testing to verify communication integrity, protocol response, and board-level signal quality before dispatch.

Industrial Connectivity FAQ

Q: What communication protocols does the Fuji NRC-2 SA516169-00 support?
A: The NRC-2 SA516169-00 natively supports Modbus RTU over RS-485. When combined with optional Fuji communication cards such as the OPC-LM1-PR or OPC-ETH, the drive system can participate in PROFIBUS-DP, DeviceNet, and industrial Ethernet networks. This flexibility makes it compatible with a wide range of PLC and SCADA platforms.

Q: How does this board perform in terms of communication latency and network stability?
A: The SA516169-00 is designed for deterministic, low-latency communication in industrial environments. RS-485 Modbus RTU polling cycles are typically completed within 10–50 ms depending on network load and baud rate configuration. The board’s hardware design minimizes electromagnetic interference susceptibility, ensuring stable communication in electrically noisy drive cabinet environments.

Q: Can the NRC-2 SA516169-00 be integrated into an existing SCADA or HMI system without major reconfiguration?
A: Yes. The board uses standard Modbus register mapping compatible with most SCADA and HMI platforms. Integration typically requires only the configuration of the communication port parameters (baud rate, parity, node address) and the import of the drive’s register map into the SCADA tag database. No custom drivers or middleware are required for Modbus-based systems.

Q: What warranty and quality assurance does ZYPLC provide for this product?
A: All Fuji NRC-2 SA516169-00 units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment testing including communication interface verification, signal integrity checks, and visual inspection. Expedited replacement or technical support is available throughout the warranty period.
