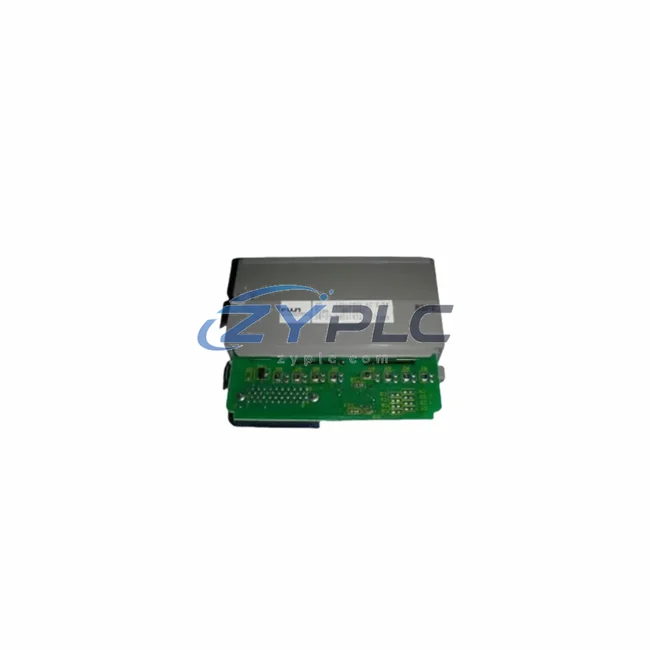

Fuji NV1Y08S PLC Digital Output Module for Micrex-F Systems

Fuji NV1Y08S Industrial Network Interface for Micrex-F Systems: Bridging Field Devices and Smart Factory Data Links

In modern industrial automation, the ability to move data reliably from field-level devices to supervisory systems is the backbone of any smart factory initiative. The Fuji NV1Y08S is an 8-point digital output module engineered for the Fuji Micrex-F PLC series, delivering deterministic signal control, robust protocol compatibility, and seamless integration across multi-layer industrial network architectures. Whether you are commissioning a new production line or expanding an existing distributed control system, the NV1Y08S provides the connectivity foundation that links actuators, drives, and field instruments to the broader automation ecosystem.

As manufacturing environments evolve toward IIoT-enabled operations, output modules like the NV1Y08S are no longer passive signal conduits — they are active participants in the data flow chain. From the moment a PLC controller issues a command, through the output module’s relay or transistor switching, to the actuation of a motor starter, solenoid valve, or indicator lamp, every millisecond of response time and every bit of status feedback contributes to overall system transparency and uptime.

Compatibility & Integration Notes

Connected Automation Data Flow

The NV1Y08S operates at the heart of a layered automation architecture. At the field level, sensors and proximity switches feed digital signals into companion input modules such as the Fuji NV1X08S 8-point digital input module, which passes real-time process states to the Fuji Micrex-F CPU module — for example, the NV1CPU or NB1CPU series — via the high-speed backplane bus. The CPU processes ladder logic and issues output commands back through the NV1Y08S to downstream actuators.

For applications requiring remote I/O expansion across larger plant floors, the Micrex-F system supports distributed rack configurations where the NV1Y08S can be deployed in remote I/O stations connected back to the master CPU via Fuji FL-net or T-Link communication modules. This architecture allows a single CPU to supervise dozens of output points distributed across multiple production zones without sacrificing scan cycle performance.

At the supervisory layer, Fuji MICREX-SX series HMI panels and third-party SCADA platforms connect to the Micrex-F network through dedicated communication gateways. Industrial protocol converters — such as Modbus RTU/TCP gateways or PROFIBUS-DP interface modules — bridge the Micrex-F backplane data to plant-wide Ethernet networks, enabling real-time visualization of NV1Y08S output states on operator workstations and mobile dashboards.

In drive control applications, the NV1Y08S output channels interface directly with Fuji FRENIC series variable frequency drives, issuing run/stop, forward/reverse, and fault reset commands. Feedback from the drives — such as fault status and speed-reached signals — returns through digital input modules, completing a closed-loop control and monitoring circuit that supports both manual operator intervention and fully automated sequence control.

Edge computing nodes and industrial IoT gateways positioned at the network boundary collect output state data from the Micrex-F CPU and forward it to cloud-based MES or ERP platforms, enabling production KPI tracking, predictive maintenance scheduling, and remote diagnostics without interrupting real-time PLC execution. This data pathway — from NV1Y08S field output through CPU, gateway, and cloud — is the foundation of transparent, data-driven manufacturing.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and mixed-generation industrial environments is protocol fragmentation. When PLCs from different generations or vendors operate in isolation, production data remains siloed, maintenance teams lack visibility, and system expansions become costly integration projects. The Fuji NV1Y08S, as part of the Micrex-F modular platform, directly addresses these challenges.

Protocol Unification: By deploying communication gateway modules alongside the NV1Y08S in the Micrex-F rack, engineers can bridge proprietary backplane signals to open industrial protocols including Modbus TCP, PROFINET, EtherNet/IP, and OPC-UA. This eliminates the need for standalone protocol converters and reduces wiring complexity on the panel floor.

Eliminating Data Islands: Output module status — including channel-level diagnostics, short-circuit detection, and load feedback — is made available to SCADA systems in real time. Operators can monitor the exact state of every NV1Y08S output point from a central control room or remote terminal, replacing manual field inspections with continuous digital oversight.

Remote Monitoring and Diagnostics: With the Micrex-F CPU’s built-in communication ports and optional Ethernet modules, maintenance engineers can access PLC program status, output module diagnostics, and alarm histories remotely via VPN-secured connections. This capability reduces mean time to repair (MTTR) by enabling pre-visit fault analysis and remote parameter adjustment.

Production Line Transparency: Integrating NV1Y08S output data into MES dashboards provides shift supervisors with real-time actuator status, cycle count data, and downtime event logs. This transparency supports lean manufacturing initiatives, OEE improvement programs, and regulatory compliance reporting.

Scalable System Expansion: The modular Micrex-F rack architecture allows additional NV1Y08S modules to be added as production capacity grows, without redesigning the control system. New output points are recognized automatically by the CPU upon rack configuration update, minimizing commissioning time for line extensions or new machine additions.

Industrial Connectivity FAQ

Q1: What is the communication latency of the NV1Y08S within the Micrex-F backplane?
The NV1Y08S communicates via the Micrex-F high-speed backplane bus, which operates at sub-millisecond refresh rates synchronized with the CPU scan cycle. For most discrete control applications, output response time is within 1–2 scan cycles of the issuing ladder instruction, ensuring deterministic control suitable for high-speed sequencing and safety-critical switching.

Q2: Is the NV1Y08S compatible with third-party SCADA and HMI systems?
Yes. When paired with a Micrex-F Ethernet communication module or a compatible protocol gateway, the NV1Y08S output states are accessible via Modbus TCP, OPC-DA/UA, or other standard industrial protocols. This makes it compatible with leading SCADA platforms including Wonderware, iFIX, Citect, and WinCC, as well as most modern HMI panels supporting open communication standards.

Q3: How is network stability maintained in electrically noisy industrial environments?
The Micrex-F backplane is designed to IEC 61131-2 environmental standards, with optical isolation between output channels and the backplane bus, EMC shielding, and surge protection on output terminals. For network-connected configurations, shielded Ethernet cabling and managed industrial switches with VLAN segmentation are recommended to maintain signal integrity across the plant network.

Q4: What does the warranty terms confirmed during quotation cover, and is pre-shipment testing performed?
Every NV1Y08S unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including output channel switching tests, backplane communication checks, and visual inspection for physical integrity. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize production downtime. For volume orders or urgent requirements, please contact our sales team directly.
