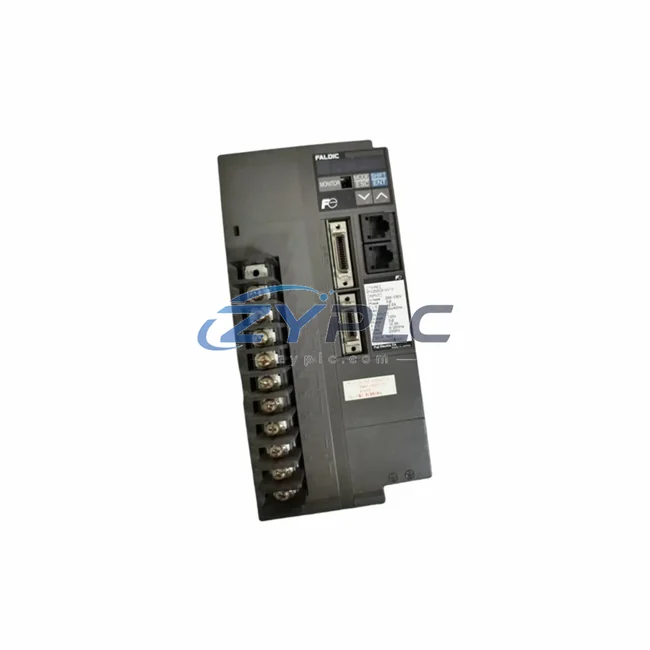

Fuji RYC202C3-VVT2 Servo Drive for RYC

Fuji RYC202C3-VVT2 Servo Drive for RYC Series

The Fuji Electric RYC202C3-VVT2 is a high-performance AC servo drive engineered for seamless integration within the RYC Series control architecture. Rather than functioning as a standalone motion component, this drive is designed to operate as a coordinated node within a layered automation system — interfacing with programmable logic controllers, distributed I/O modules, communication gateways, and human-machine interfaces to deliver consistent, reliable, and scalable motion control across demanding industrial environments.

In modern industrial control system design, the servo drive occupies a critical position at the execution layer. The RYC202C3-VVT2 receives velocity and torque commands from the control layer — typically a Fuji Electric MICREX-SX or MICREX-F series PLC — and translates those commands into precise motor shaft movement. This tight coupling between the controller and the drive ensures deterministic response times, minimized signal latency, and synchronized multi-axis coordination across the entire machine or process line.

Product Specification Table

System Compatibility Notes

The RYC202C3-VVT2 achieves its full potential when deployed within a coherent, multi-layer control architecture. At the control layer, a Fuji Electric MICREX-SX SPH series CPU module issues motion commands via high-speed pulse output or network communication. These commands pass through a Fuji Electric NP1PS-24 power supply module that ensures stable DC bus voltage across the backplane, maintaining consistent drive performance even under dynamic load conditions.

At the I/O layer, Fuji Electric NP1X16 digital input modules and NP1Y16T digital output modules handle discrete signals — limit switches, home sensors, and interlock feedback — that are essential for safe servo axis operation. These I/O modules communicate with the CPU over the internal NP1 bus, ensuring sub-millisecond scan cycle synchronization with the drive’s command interface.

For multi-drive or distributed architectures, a Fuji Electric NP1L-RS4 serial communication module or a PROFIBUS-DP gateway module can be integrated to extend the control network across multiple servo axes or remote I/O stations. This is particularly valuable in packaging lines, press systems, and multi-axis gantry applications where coordinated motion across four or more axes is required.

At the human-machine interface layer, a Fuji Electric V9 series HMI panel provides real-time visualization of drive status, alarm codes, torque curves, and axis position feedback. Operators can monitor the RYC202C3-VVT2’s operating state directly from the HMI without interrupting the control loop, enabling rapid fault diagnosis and parameter adjustment during commissioning or scheduled maintenance windows.

Terminal block modules and Fuji Electric RYC series regenerative resistor units complete the cabinet-level integration, managing braking energy during deceleration cycles and protecting the drive’s internal DC bus from overvoltage faults. Proper selection of the regenerative resistor — matched to the RYC202C3-VVT2’s rated output and duty cycle — is a critical step in system engineering that directly affects drive longevity and thermal stability.

Industrial Application Notes

The RYC202C3-VVT2 is well-suited for a broad range of industrial automation applications where precise velocity and torque control are required across continuous or intermittent duty cycles.

In manufacturing and assembly lines, this drive controls servo motors on conveyor indexing systems, robotic arm joints, and precision positioning stages. Its VVT2 control variant supports velocity-torque switching, making it adaptable to both high-speed transfer and high-force clamping operations within the same machine cycle.

In power generation and electrical infrastructure applications, the drive is used to control actuator positioning in switchgear test benches and transformer tap-changer mechanisms, where repeatable positioning accuracy and long-term reliability are non-negotiable.

In petrochemical and process industries, the RYC202C3-VVT2 drives pump and compressor auxiliary systems where variable-speed control reduces energy consumption and extends mechanical service life. Integration with a distributed control system (DCS) via analog or serial interface allows the drive to participate in closed-loop process regulation.

In water treatment and municipal infrastructure, servo-driven valve actuators controlled by the RYC202C3-VVT2 provide precise flow regulation in filtration, dosing, and aeration systems. The drive’s stable velocity control at low speeds is particularly advantageous in these slow-response process environments.

In mining, metallurgy, and heavy industry, the drive supports winding, hoisting, and rolling mill auxiliary drives where torque linearity and thermal robustness are essential. Paired with appropriate motor and gearbox selection, the RYC202C3-VVT2 delivers consistent performance across wide ambient temperature ranges and high-vibration environments.

Product Compatibility FAQ

Q1: Is the RYC202C3-VVT2 compatible with Fuji Electric MICREX-SX series PLCs for pulse-train motion control?
Yes. The RYC202C3-VVT2 accepts high-speed pulse train position commands (sign + pulse or CW/CCW format) that are natively supported by the MICREX-SX SPH series high-speed output modules. No additional motion controller is required for single-axis point-to-point positioning applications. For multi-axis interpolation, a dedicated motion CPU or positioning module should be evaluated.

Q2: What regenerative braking components are required for this drive in high-inertia applications?
For applications with high load inertia or frequent deceleration cycles — such as press feeders or winding systems — an external regenerative resistor unit matched to the RYC202C3-VVT2’s 2.0 kW rating must be installed. The resistor should be sized based on peak braking power and duty cycle. Fuji Electric provides application-specific resistor selection guidelines in the RYC Series hardware manual. Failure to install adequate regenerative capacity will trigger DC bus overvoltage faults and reduce drive service life.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported for international customers?
The warranty terms confirmed during quotation covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions present at the time of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters. For international customers, warranty claims are processed through ZYPLC’s technical support team. Replacement units are dispatched from RFQ-confirmed sourcing to minimize system downtime. Contact +86 19859288691 or plc.sales@zyplc.com to initiate a warranty claim or request a pre-shipment inspection report.
