FUJI SA529591-08 CPU Board for G11 Automation

FUJI SA529591-08 CPU Board for G11 Automation

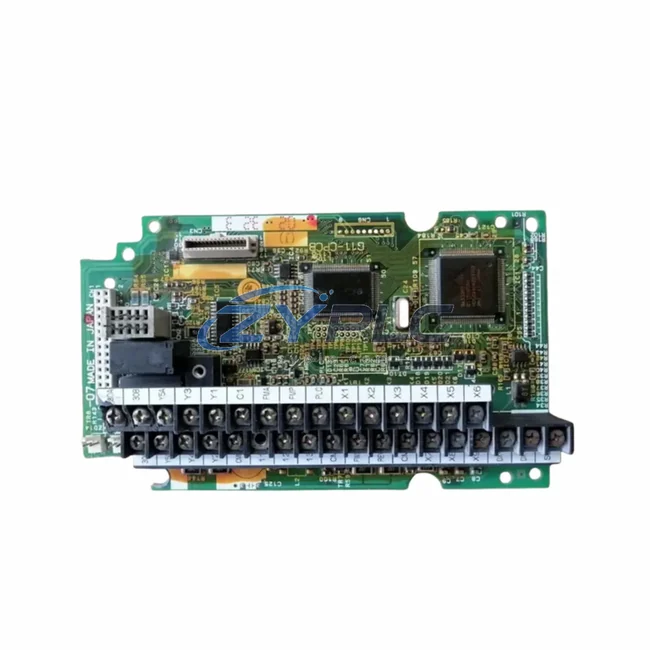

The FUJI SA529591-08 is the central CPU control board engineered for the Fuji Electric G11 series variable frequency drive (VFD) platform. Designed to deliver precision motor control and real-time energy regulation, this board serves as the intelligence core that governs drive output, feedback processing, and system communication — enabling factories to achieve measurable reductions in unplanned downtime while maintaining optimal production throughput.

In modern industrial environments where equipment uptime and replacement lead time directly affect production continuity, the SA529591-08 provides the computational backbone that makes intelligent drive management possible. By accurately processing speed references, torque commands, and thermal feedback signals, the CPU board ensures that the G11 series inverter operates at peak efficiency across variable load conditions — eliminating the energy penalties associated with fixed-speed motor operation.

Product Specification Table

System Compatibility and Application

The SA529591-08 CPU board does not operate in isolation — it is the decision-making center of a tightly integrated drive ecosystem. Within the G11 series drive chassis, it works in direct coordination with the G11-PPCB power supply board, which conditions and distributes internal DC bus voltage, and the G11-EPCB expansion board, which extends I/O capacity for multi-axis or multi-zone control applications. Together, these boards form a modular architecture that allows maintenance teams to replace individual components without scrapping the entire drive unit — a critical advantage for minimizing both downtime and capital expenditure.

At the system level, the SA529591-08 interfaces with upstream controllers such as the Fuji MICREX-SX SPH series PLC, which issues speed and torque references via RS-485 or Modbus RTU. This closed-loop communication allows the PLC to dynamically adjust drive parameters in response to real-time production demands — for example, ramping motor speed during peak conveyor load and reducing it during idle intervals to capture operational stability automatically.

For servo-driven axes operating in parallel with the G11 VFD system, the Fuji ALPHA7 series servo amplifier provides complementary motion control, while the MONITOUCH V9 series HMI gives operators a unified visualization interface for monitoring drive status, energy consumption trends, and fault diagnostics across the production line. When power quality monitoring is required, the Fuji SPH3000M power monitoring module can be integrated to log real-time kWh consumption, power factor, and harmonic distortion — data that feeds directly into maintenance planning strategies.

On the protection and distribution side, Fuji BW series molded case circuit breakers and SC series contactors provide upstream protection for the G11 drive, ensuring that fault conditions are isolated quickly without cascading failures. For applications requiring multi-drive coordination, the FRN series FRENIC-MEGA inverter can be deployed alongside the G11 platform, sharing the same Modbus communication backbone and enabling centralized maintenance planning across multiple motor circuits from a single control node.

Maintenance and Replacement Notes

In a typical manufacturing facility running continuous conveyor systems, pump stations, or HVAC equipment, fixed-speed motors represent one of the largest sources of avoidable unplanned downtime. The SA529591-08 CPU board enables the G11 series VFD to implement variable torque control — matching motor output precisely to the mechanical load at any given moment. This eliminates the energy dissipated as heat in traditional throttling or damper-based flow control systems.

Beyond operational stability, the SA529591-08 contributes directly to predictive maintenance strategies. By continuously monitoring drive operating parameters — including output current, DC bus voltage, heatsink temperature, and fault history — the CPU board generates the data signals that maintenance systems use to detect early-stage component degradation. When integrated with the MICREX-SX PLC and a SCADA or MES platform, these signals can trigger maintenance alerts before a failure occurs, reducing unplanned downtime and the associated production losses.

For production lines with variable cycle times, the SA529591-08 supports acceleration and deceleration ramp control, allowing the drive to smoothly transition motor speed between operating points without mechanical shock or current spikes. This not only extends motor and mechanical component life but also reduces peak demand charges on the facility’s electrical supply — a direct contribution to energy cost reduction.

Every SA529591-08 unit supplied by ZYPLC is fully tested prior to shipment, with functional verification of CPU processing, communication interfaces, and analog/digital I/O signal integrity. Stock is maintained for rapid dispatch, and all units are covered by a warranty terms confirmed during quotation from the date of delivery.

Product Sourcing FAQ

Q1: How much energy can the SA529591-08 help save in a typical pump or fan application?
A: When the G11 series VFD equipped with the SA529591-08 CPU board replaces a fixed-speed motor drive in a centrifugal pump or fan application, operational stability of 30–50% are achievable by operating the motor at reduced speed during partial-load conditions. The cubic relationship between motor speed and power consumption means even a 20% speed reduction yields approximately 50% less power draw.

Q2: Is the SA529591-08 compatible with third-party PLCs and SCADA systems?
A: Yes. The G11 series platform supports RS-485 and Modbus RTU communication, allowing the SA529591-08-equipped drive to integrate with third-party PLCs, DCS platforms, and SCADA systems. For native Fuji integration, the MICREX-SX SPH PLC provides the most seamless communication and parameter management experience.

Q3: What is the recommended replacement procedure for the SA529591-08?
A: Before replacement, record all drive parameter settings using the G11 keypad or connected HMI. Power down the drive and discharge the DC bus capacitors fully (minimum 5 minutes after power-off). Remove the existing CPU board, install the SA529591-08, restore saved parameters, and perform a no-load test run to verify correct operation before resuming production.

Q4: What does the warranty terms confirmed during quotation cover?
A: The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested for CPU processing integrity, communication port functionality, and I/O signal accuracy before shipment. Warranty claims are supported with technical assistance and replacement dispatch to minimize production impact.
