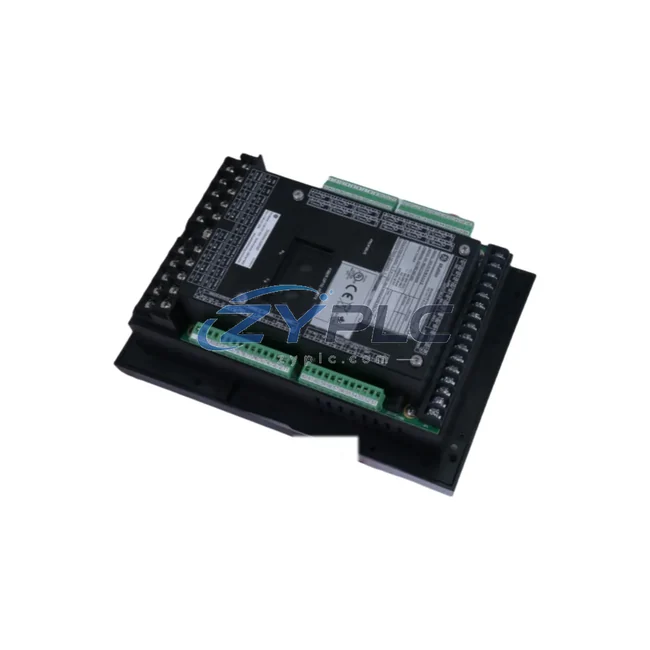

GE 369-HI-R-M-0-0-0-E Motor Protection Relay for Multilin 369 Systems

GE 369-HI-R-M-0-0-0-E: Industrial Data Link for Smart Motor Protection Networks

The GE Multilin 369-HI-R-M-0-0-0-E is a high-performance motor protection relay engineered for seamless integration into industrial communication networks. Designed for medium-voltage motor applications, this unit serves as a critical node in the data chain connecting field-level devices — motors, starters, and sensors — to supervisory control systems including SCADA platforms, DCS environments, and HMI workstations. With native Modbus RTU and Modbus TCP/IP protocol support, the 369-HI-R-M-0-0-0-E eliminates data isolation between protection hardware and upper-layer control systems, enabling real-time visibility across the entire motor management architecture.

In modern smart factory deployments, motor protection is no longer a standalone function. The 369-HI-R-M-0-0-0-E acts as an intelligent gateway between the motor’s electrical environment and the plant’s digital infrastructure. Signal acquisition begins at the motor terminals — current transformers, voltage inputs, and RTD/thermistor sensors feed live data into the relay’s processing core. This data is then formatted and transmitted upstream via Modbus to PLCs such as the GE PACSystems RX3i or Allen-Bradley ControlLogix controllers, where it is processed for logic execution and alarm management. The relay’s high-speed communication capability ensures that protection events — overcurrent trips, thermal overloads, phase imbalance faults — are reported to the control layer within milliseconds, supporting rapid response and minimizing unplanned downtime.

Compatibility & Integration Notes

Connected Automation Data Flow

The 369-HI-R-M-0-0-0-E is purpose-built for multi-layer industrial architectures where data must flow reliably from the field device level to the enterprise layer. In a typical deployment, the relay connects via RS-485 Modbus RTU to a remote I/O concentrator or directly to a GE PACSystems RX3i CPU315 serial communication module. Simultaneously, the Ethernet port enables parallel connectivity to a plant-wide Modbus TCP/IP network, allowing the Wonderware InTouch HMI or GE iFIX SCADA platform to poll motor status, metering data, and alarm registers without interrupting the primary protection loop.

Within the motor control center (MCC), the 369-HI-R-M-0-0-0-E works alongside devices such as the GE Multilin 339 Generator Protection Relay and GE Multilin 750/760 Feeder Protection Relay, sharing the same RS-485 bus segment. Each device is assigned a unique Modbus node address, and the bus master — typically a GE PACSystems RX7i or a Schneider Electric Modicon M340 PLC — cycles through all nodes to collect real-time data. This architecture supports up to 32 devices per RS-485 segment, making it highly scalable for large motor fleets in petrochemical plants, water treatment facilities, and mining operations.

For edge computing and remote diagnostics, the relay’s Ethernet port can be connected to an industrial edge gateway such as the Moxa MGate MB3480 Modbus gateway, which aggregates data from multiple 369-series relays and forwards it to cloud-based asset management platforms. Variable frequency drives (VFDs) such as the ABB ACS880 or Siemens SINAMICS G120 operating on the same network can share motor load data with the 369-HI-R-M-0-0-0-E’s logic inputs, enabling coordinated protection and maintenance planning strategies across the drive-motor system.

Temperature monitoring is handled through the relay’s built-in RTD inputs, which accept Pt100 sensors embedded in motor windings and bearings. These thermal readings are continuously transmitted to the SCADA historian, enabling trend analysis and predictive maintenance scheduling. When combined with a GE Multilin EPM 9450 power quality meter on the same Modbus network, operators gain a complete picture of both motor health and power supply quality — a critical combination for high-availability production environments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial motor management is the fragmentation of protection data across incompatible systems. Legacy motor protection relays often operate as isolated devices — they trip the motor but cannot communicate the reason, the magnitude of the fault, or the pre-fault operating conditions to the control room. The GE Multilin 369-HI-R-M-0-0-0-E directly addresses this problem by embedding full Modbus communication capability into a protection-grade relay platform.

With dual-protocol support (RTU and TCP/IP), the relay bridges the gap between older RS-485 serial networks and modern Ethernet-based plant infrastructure. This eliminates the need for external protocol converters in most installations, reducing wiring complexity and potential points of failure. The relay’s onboard event recorder stores the last 256 events with time-stamps, and these records are fully accessible via Modbus, allowing SCADA systems to retrieve fault histories without requiring physical access to the relay panel.

For production line transparency, the 369-HI-R-M-0-0-0-E exposes over 100 Modbus registers covering metering values (current, voltage, power, power factor), protection status, I/O states, and configuration parameters. This register map enables deep integration with MES (Manufacturing Execution Systems) and ERP platforms, supporting OEE (Overall Equipment Effectiveness) calculations and automated maintenance work order generation. Plants that have deployed the Multilin 369 series report significant reductions in mean time to repair (MTTR) due to the relay’s ability to deliver precise fault data directly to maintenance management systems.

System expansion is straightforward: additional 369-HI-R-M-0-0-0-E units can be added to the Modbus network without reconfiguring existing nodes. The relay’s configurable baud rate and parity settings ensure compatibility with a wide range of PLC communication modules and SCADA front-end processors, future-proofing the installation against control system upgrades.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 369-HI-R-M-0-0-0-E on a Modbus RTU network?
At 9600 bps with a standard Modbus RTU poll cycle, the relay responds to register read requests within 10–50 ms depending on register block size and bus loading. For time-critical SCADA polling, Modbus TCP/IP over Ethernet is recommended, which reduces latency to under 5 ms in typical plant network conditions.

Q2: Is the 369-HI-R-M-0-0-0-E compatible with third-party SCADA and HMI systems?
Yes. The relay uses standard Modbus RTU and Modbus TCP/IP protocols, which are natively supported by all major SCADA platforms including Wonderware, GE iFIX, Ignition by Inductive Automation, Siemens WinCC, and Rockwell FactoryTalk. A complete Modbus register map is available for custom integration projects.

Q3: Can the relay be integrated into an existing RS-485 multi-drop network alongside other GE Multilin devices?
Yes. The 369-HI-R-M-0-0-0-E supports RS-485 multi-drop topology with up to 32 nodes per segment. It can coexist on the same bus with other GE Multilin relays (such as the 339, 469, 750/760 series) as well as third-party Modbus RTU devices, provided each device is assigned a unique node address (1–247).

Q4: What quality assurance and warranty coverage is provided?
Every 369-HI-R-M-0-0-0-E unit undergoes functional testing prior to shipment, including communication port verification, protection function testing, and I/O continuity checks. All units are covered by a warranty terms confirmed during quotation from the date of shipment. Availability is confirmed via RFQ for shipment arranged after confirmation with standard lead times of 1–3 business days for most regions.
