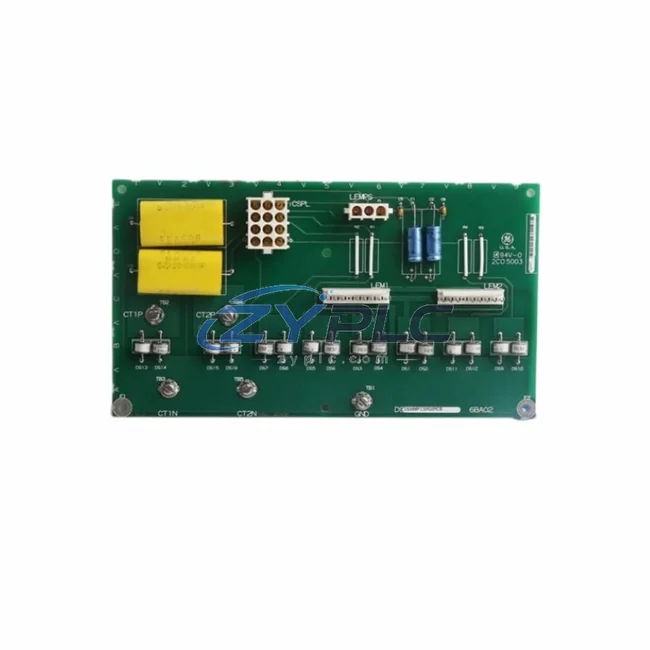

GE 369B1844G5004 Relay Output Module Multilin 369

GE 369B1844G5004 Relay Output Module for Multilin 369 Automation

The GE 369B1844G5004 is a precision-engineered Relay Output Module designed for the GE Multilin 369 Motor Management Relay platform. In modern industrial facilities where energy efficiency and uptime are directly tied to profitability, this module plays a critical role in closing the loop between motor protection logic and field-level switching actions. By delivering fast, reliable relay output signals to contactors, motor starters, and load-shedding circuits, the 369B1844G5004 enables plant engineers to implement maintenance-focused control strategies that reduce unnecessary motor run time, prevent thermal overload waste, and optimize the overall power consumption profile of rotating equipment.

Unlike generic relay modules, the 369B1844G5004 is factory-matched to the Multilin 369’s internal architecture, ensuring deterministic response times and eliminating signal latency that can cause inefficient motor cycling. When integrated with the GE Multilin 369 Motor Management Relay’s built-in energy metering functions — including kWh accumulation, demand tracking, and power factor monitoring — this output module becomes the execution arm of a complete maintenance planning feedback loop. The relay contacts respond directly to protection trip commands, overload thresholds, and programmable logic outputs, allowing the system to shed non-critical loads during peak demand windows and restart equipment in a controlled, energy-efficient sequence.

Product Specification Table

System Compatibility and Application

The 369B1844G5004 does not operate in isolation — its true value emerges when it is embedded within a layered industrial automation architecture designed around energy visibility and control precision. In a typical motor control center (MCC) deployment, the GE Multilin 369 Motor Management Relay serves as the intelligence layer, continuously monitoring current, voltage, power factor, and thermal capacity. The 369B1844G5004 relay output module translates that intelligence into physical switching actions, commanding downstream devices such as GE AV300i AC variable frequency drives or ABB ACS880 industrial drives to modulate motor speed in response to load conditions — a direct pathway to reducing operating load during partial-load operation.

For facilities running distributed control architectures, the Multilin 369 communicates over Modbus RTU or DeviceNet protocols, feeding real-time motor data to supervisory systems such as the GE iFIX SCADA platform or Wonderware InTouch HMI. The relay output module’s switching events are logged as discrete I/O state changes, enabling energy analysts to correlate trip events with kWh consumption spikes and identify inefficient motor start patterns. When paired with a GE Multilin EPM 7000 Power Quality Meter, plant engineers gain granular visibility into harmonic distortion, reactive power demand, and load imbalance — all factors that the 369B1844G5004’s output actions help mitigate by ensuring motors are only energized under optimal conditions.

In servo-driven production lines, the relay output module interfaces with GE Fanuc Series 90-30 PLC discrete output modules to coordinate multi-axis motion sequences. By integrating the Multilin 369’s protection logic with the PLC’s ladder program, engineers can implement operational-efficiency interlocks that prevent simultaneous high-inrush motor starts — a common source of peak demand charges. The GE RX3i PACSystems controller further extends this capability by enabling model-based maintenance planning across multiple motor zones, with the 369B1844G5004 providing the hardwired relay backup that ensures safety-critical shutdowns are never dependent solely on software logic.

Power distribution integrity is maintained through coordination with GE Multilin 750/760 Feeder Protection Relays, which monitor upstream feeder health and can signal the 369B1844G5004 to execute controlled motor de-energization before a feeder fault propagates. This coordinated protection scheme reduces the frequency of unplanned outages — each of which carries a hidden energy cost in the form of inefficient cold-start restarts and thermal cycling of motor windings.

Maintenance and Replacement Notes

In continuous process industries — including water treatment, petrochemical, food and beverage, and automotive manufacturing — the GE 369B1844G5004 contributes to measurable operational stability through several operational mechanisms. First, by enabling precise motor trip and restart sequencing, the module eliminates the unplanned downtime associated with repeated across-the-line starts, which can draw 6–8 times rated current and generate significant heat losses in motor windings and cables. When the Multilin 369 detects a thermal overload condition and commands a trip via the 369B1844G5004, the controlled shutdown prevents the motor from operating in an inefficient high-temperature state that degrades insulation and increases resistive losses.

Second, the relay output module supports load shedding programs that are increasingly required by industrial maintenance planning standards such as ISO 50001. During peak tariff windows, the Multilin 369 can be programmed to issue relay output commands through the 369B1844G5004 to de-energize non-critical motors — cooling tower fans, auxiliary pumps, and conveyor drives — reducing the facility’s peak demand charge without interrupting core production processes. This capability is particularly valuable in facilities where energy costs represent Actual operating results depend on the installed system, load profile, and commissioning parameters.

Third, predictive maintenance integration further amplifies operational stability. By monitoring motor current signature analysis data through the Multilin 369 and triggering maintenance alerts via the 369B1844G5004’s relay outputs, maintenance teams can address developing mechanical faults — bearing wear, rotor bar cracks, coupling misalignment — before they cause the motor to draw abnormal load. A motor operating with a developing fault can consume 3–8% more energy than a healthy motor running the same load, making early fault detection a direct energy efficiency measure.

All units are sourced from verified supply channels, undergo comprehensive functional testing including contact resistance measurement, insulation integrity verification, and relay coil actuation testing, and ship with a warranty terms confirmed during quotation covering manufacturing defects and functional failures. Inventory is maintained availability confirmed by RFQ for shipment arranged after confirmation, with typical lead times of 1–3 business days to support urgent MRO and capital project requirements.

Product Sourcing FAQ

Q1: How does the GE 369B1844G5004 contribute to reducing operating load in motor-driven systems?
The 369B1844G5004 executes the Multilin 369’s protection and control logic as physical relay switching actions. This enables precise motor trip sequencing, load shedding during peak demand periods, and prevention of inefficient motor operating states such as thermal overload and phase imbalance — all of which directly reduce unplanned downtime in motor-driven applications.

Q2: Is the 369B1844G5004 compatible with variable frequency drives and modern DCS platforms?
Yes. The module’s relay contacts interface with a wide range of downstream devices including AC variable frequency drives, motor starters, and contactor coils. The Multilin 369 platform communicates via Modbus RTU and DeviceNet, enabling integration with GE Mark VIe, GE RX3i PACSystems, and third-party DCS and SCADA platforms for coordinated maintenance planning.

Q3: Can this module replace a failed relay output card in an existing Multilin 369 installation without reconfiguration?
The 369B1844G5004 is a direct replacement module for compatible Multilin 369 relay output slots. In most cases, replacement requires only physical module swap and relay output assignment verification in the Multilin 369 configuration software — no full system reconfiguration is needed. We recommend verifying the relay output mapping against your existing protection scheme documentation before commissioning.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every 369B1844G5004 unit undergoes functional testing including relay contact actuation, contact resistance measurement, and coil integrity verification before shipment. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and expedited replacement to minimize production downtime.
