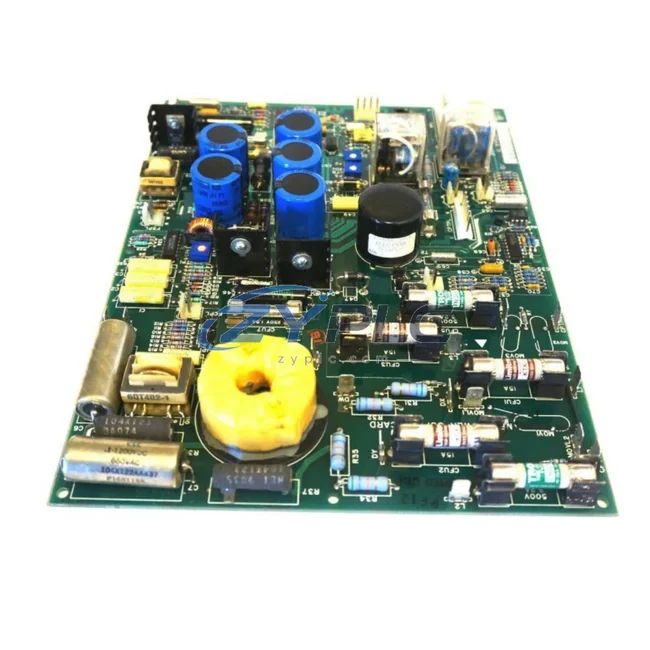

GE 531X111PSHAPG3 Motor Field Control for 531X

GE 531X111PSHAPG3 Motor Field Control for 531X Drive

The GE 531X111PSHAPG3 is a dedicated motor field control module engineered for seamless integration within the GE 531X Series drive platform. Rather than functioning as a standalone component, this module occupies a critical position within a layered automation architecture — bridging the control layer and the execution layer to deliver precise, stable field current regulation for DC motor drive systems. In modern industrial control environments, where system consistency, redundancy, and long-term maintainability are paramount, the 531X111PSHAPG3 provides the system integration that engineers and maintenance teams depend on across manufacturing, power generation, petrochemical, and heavy process industries.

Designed to operate within the GE 531X drive chassis, this field control board coordinates directly with the main control board, firing circuit boards, and power supply modules that form the backbone of the 531X drive system. Its role in the signal flow is to receive field current reference commands from the CPU or regulator board and translate them into precise firing angle outputs for the field converter bridge — ensuring that motor excitation remains stable across varying load conditions, speed ranges, and ambient environments. This level of coordinated control is what separates a well-engineered drive system from a collection of individual components.

Product Specification Table

System Compatibility Notes

The 531X111PSHAPG3 does not operate in isolation. Its value is fully realized when considered within the complete 531X drive system architecture. In a typical installation, the GE 531X111PSHAPG3 works in close coordination with the 531X302PCBAPG1 main control board, which provides the speed and current reference signals that the field control module acts upon. The 531X111PCBAPG1 firing circuit board receives the field angle commands and drives the SCR bridge accordingly, while the 531X117PCBAPG1 power supply board ensures stable low-voltage DC rails are maintained across all control electronics.

At the I/O layer, analog and digital signal conditioning is handled by interface boards such as the 531X121PCHAPG1, which routes feedback signals from field current transducers back into the regulator loop. This closed-loop architecture ensures that field current tracks the reference precisely, even under transient load disturbances. For systems requiring communication with a supervisory SCADA or DCS platform, the drive may be integrated via a GE Mark VI communication gateway or a dedicated Modbus RTU interface module, enabling remote monitoring of field current, drive status, and fault diagnostics.

In redundant drive configurations — common in critical process applications such as paper mills, steel rolling lines, and large pump stations — a standby drive chassis equipped with a matched 531X111PSHAPG3 field control board can be maintained in hot-standby mode, with automatic transfer logic managed at the control layer. The 531X302PCBAPG2 regulator board variant supports bumpless transfer features that minimize process disruption during switchover events. Terminal modules and GE TB series terminal blocks provide the field wiring interface, ensuring that signal integrity is maintained from the motor field winding back to the control electronics without ground loops or noise coupling.

At the human-machine interface layer, operators interact with the drive system through a GE Proficy HMI/SCADA workstation or a dedicated drive operator panel, where field current setpoints, excitation mode selection, and fault history are accessible in real time. This full-stack integration — from the HMI down through the regulator, field control board, firing circuit, and into the motor field winding — is what defines a properly engineered 531X drive system, and the 531X111PSHAPG3 is the module that closes the field excitation loop within that architecture.

Industrial Application Notes

The GE 531X111PSHAPG3 finds application across a wide range of heavy industrial sectors where DC motor drives remain the preferred solution for high-torque, variable-speed processes. In steel and metals manufacturing, 531X-based drive systems control rolling mill main drives, coiler drives, and tension reel motors, where precise field weakening control is essential for achieving wide speed range operation without exceeding armature current limits. The 531X111PSHAPG3 manages the field excitation profile across the full speed range, enabling smooth transitions between constant-torque and constant-power operating regions.

In mining and mineral processing, large DC drives powered by 531X platforms control conveyor drives, hoist motors, and crusher drives in environments characterized by high dust levels, vibration, and wide ambient temperature swings. The robust PCB construction of the 531X111PSHAPG3, combined with conformal coating on critical components, ensures reliable operation in these demanding conditions. Petrochemical and refinery applications leverage the 531X drive platform for compressor drives and pump motors in hazardous area installations, where the drive electronics are housed in pressurized or purged enclosures and the 531X111PSHAPG3 must maintain field control accuracy across extended continuous duty cycles.

In water and wastewater treatment facilities, 531X drives control large centrifugal pump motors and aeration blowers, where energy efficiency and process stability are critical. The field control module contributes to maintenance planning by enabling field economy mode during light-load conditions, reducing field copper losses without compromising motor availability. Packaging and converting lines in the consumer goods industry use 531X drives for web tension control and winding applications, where the dynamic response of the field control loop directly affects product quality and waste rates.

Product Compatibility FAQ

Q1: Is the GE 531X111PSHAPG3 compatible with all variants of the 531X drive chassis?
The 531X111PSHAPG3 is designed for use within the GE 531X Series drive platform and is compatible with the standard 531X chassis configurations used in single-quadrant and four-quadrant DC drive systems. Compatibility should be verified against the specific drive model number and firmware revision of the main control board (e.g., 531X302PCBAPG1 or PCBAPG2) to ensure correct signal interface levels and parameter mapping. Our technical team can assist with cross-referencing the drive BOM to confirm fitment before shipment.

Q2: Can the 531X111PSHAPG3 be installed and commissioned without OEM support?
Yes. The 531X111PSHAPG3 is a direct replacement board that installs into the existing card slot within the 531X drive chassis. Commissioning involves verifying field current feedback calibration, setting field regulator gain parameters via the drive’s parameter interface, and confirming field economy mode thresholds if applicable. Detailed commissioning procedures are available in the GE 531X drive technical manual. Our team provides pre-shipment functional verification and can supply application notes to support in-house engineering commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and how does it apply to long-term maintenance planning?
The warranty terms confirmed during quotation covers functional defects in materials and workmanship under normal operating conditions as defined in the GE 531X Series drive specifications. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside rated environmental parameters. For long-term maintenance planning, we recommend maintaining one spare 531X111PSHAPG3 per drive system as part of a critical spares inventory strategy. Our stock availability and warranty support ensure that replacement boards can be sourced and deployed quickly, minimizing unplanned downtime in critical process applications.
