GE 531X135PRGAAM3 Industrial Network Interface for Mark V Drive Series

GE 531X135PRGAAM3: Industrial Data Link for Mark V Speedtronic Drive Series Smart Factory Connectivity

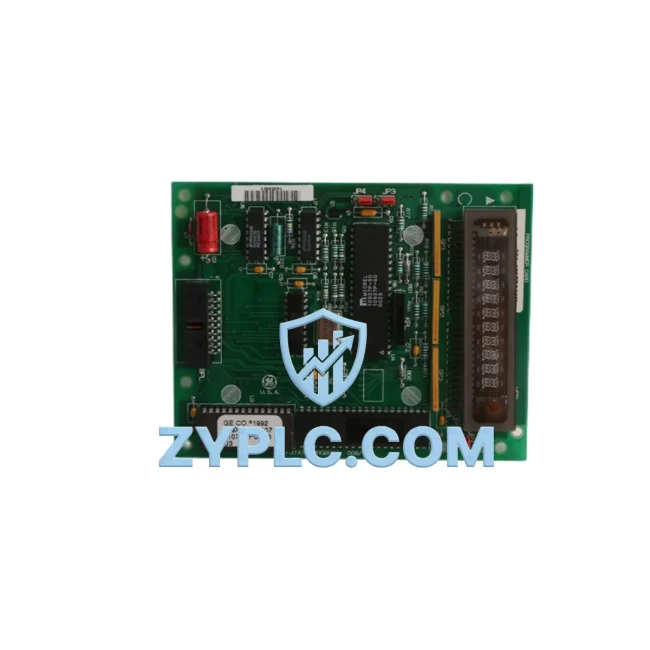

The GE 531X135PRGAAM3 is a high-performance programmer card board engineered for seamless industrial network communication within GE’s Mark V Speedtronic turbine control and Drive Series automation platforms. Designed to bridge field-level devices with supervisory control systems, this module serves as a critical data link in modern smart factory architectures — enabling real-time signal acquisition, protocol conversion, and transparent data flow across every layer of the industrial network stack.

In today’s connected manufacturing environment, the ability to move data reliably from sensors and actuators through PLCs, remote I/O modules, and HMI terminals up to SCADA and MES platforms is non-negotiable. The 531X135PRGAAM3 fulfills this role with precision, supporting the high-speed communication demands of turbine control, power generation, and process automation applications where millisecond-level response times and uninterrupted network uptime are essential.

Network Communication Table

Connected Automation Data Flow

The GE 531X135PRGAAM3 sits at the heart of the Mark V control panel’s communication architecture, acting as the programmer interface that allows engineers to configure, monitor, and diagnose the entire turbine or drive control system. In a typical smart factory deployment, the data flow begins at the field level: thermocouples, pressure transmitters, vibration sensors, and proximity switches feed raw signals into the Mark V I/O boards — such as the GE DS200TCQAG1BHF Thermocouple Input Board and the GE DS200SDCCG1AFB Speed Detector Card — where analog and digital signals are conditioned and digitized.

These digitized values are then processed by the Mark V’s core processor cards, including the GE DS200TCDAG1AAA Analog I/O Board, which manages real-time control loops for fuel flow, inlet guide vanes, and exhaust temperature regulation. The 531X135PRGAAM3 programmer card enables direct communication between the control processor and external engineering workstations, allowing parameter uploads, firmware updates, and live diagnostic reads without interrupting the control cycle.

At the network transport layer, the Mark V system interfaces with plant-wide SCADA platforms — such as GE iFIX or third-party systems like Wonderware InTouch and Ignition SCADA — through dedicated communication gateways. The GE IS200ECTBG1AAA Ethernet Communication Board bridges the proprietary Mark V network to standard Ethernet TCP/IP infrastructure, enabling OPC-DA and OPC-UA data publishing to historian servers and MES platforms. Simultaneously, the GE DS200DSPCH1ADA DSP Control Card handles high-speed computational tasks, ensuring that control decisions are executed within the required scan cycle times even as network traffic increases.

For remote I/O expansion in distributed turbine installations, the Mark V architecture supports communication with remote terminal units (RTUs) and remote I/O racks via RS-485 serial links. Protocol converters — such as Modbus RTU-to-Ethernet gateways — allow legacy field instruments and variable frequency drives (VFDs) to report status data upstream. The GE 531X307APCAJG1 Power Supply Board ensures stable 24VDC and 5VDC rail voltages across the control panel backplane, maintaining signal integrity for all communication cards including the 531X135PRGAAM3 during load transients and grid disturbances.

At the HMI layer, operators interact with the turbine system through GE’s own Mark V HMI workstations or modern touchscreen panels running GE Cimplicity or equivalent SCADA visualization software. Alarm management, trend logging, and event sequencing data all flow through the communication backbone that the 531X135PRGAAM3 helps maintain. Remote diagnostics are enabled via secure VPN tunnels to the plant’s DCS or cloud-based asset performance management (APM) platforms, allowing GE service engineers to perform remote fault analysis and predictive maintenance assessments without on-site visits.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy turbine and drive control installations is data isolation — the inability to extract real-time operational data from proprietary control systems and make it available to modern analytics, ERP, or cloud platforms. The GE 531X135PRGAAM3 directly addresses this challenge by providing the programmer interface through which system integrators can configure communication parameters, map data registers, and establish protocol bridges between the Mark V’s native communication layer and open industrial standards.

Protocol Unification: Many industrial sites operate mixed-protocol environments where GE Mark V turbine controllers coexist with Siemens S7 PLCs, Allen-Bradley ControlLogix systems, and Schneider Electric Modicon M340 controllers. The 531X135PRGAAM3 enables engineers to program custom communication routines that translate Mark V-specific data formats into Modbus, DNP3, or IEC 61850 frames, eliminating the protocol barriers that create data silos.

Production Line Transparency: By enabling full read/write access to the Mark V control database, the 531X135PRGAAM3 allows SCADA systems to display real-time turbine parameters — rotor speed, exhaust temperature, compressor discharge pressure, fuel flow rate — on unified dashboards. This transparency supports lean manufacturing initiatives, OEE (Overall Equipment Effectiveness) tracking, and ISO 55000 asset management compliance.

Remote Monitoring and Alarm Management: With the programmer card properly configured, remote monitoring stations can receive alarm and event notifications from the Mark V system in real time. Critical alarms — such as over-temperature trips, vibration exceedances, or communication faults — are transmitted upstream to SCADA alarm servers and forwarded via SMS or email to on-call engineers, dramatically reducing mean time to respond (MTTR).

System Scalability: As plants expand capacity or integrate new generation units, the 531X135PRGAAM3 supports system-wide configuration updates that can be deployed across multiple Mark V panels from a central engineering workstation. This scalability reduces commissioning time for new units and ensures configuration consistency across the entire fleet.

Pre-Shipment Testing: Every GE 531X135PRGAAM3 unit available through ZYPLC undergoes functional verification testing prior to shipment, confirming communication interface integrity, backplane connector condition, and firmware compatibility. Units are shipped with full anti-static packaging and are backed by a 12-month warranty, ensuring confidence for both emergency replacement and planned maintenance scenarios.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE 531X135PRGAAM3 support, and can it integrate with third-party SCADA systems?
The 531X135PRGAAM3 operates within GE’s proprietary Mark V serial communication architecture. Integration with third-party SCADA systems — including Wonderware, Ignition, and GE iFIX — is achieved through protocol gateway modules such as the GE IS200ECTBG1AAA Ethernet Communication Board or external Modbus/OPC converters. This allows the Mark V system to publish real-time data to any OPC-DA or OPC-UA compliant SCADA platform without modifying the core control logic.

Q2: How does the 531X135PRGAAM3 ensure network stability in high-noise industrial environments?
The card is designed to operate within the Mark V control panel’s shielded backplane environment, which provides inherent protection against electromagnetic interference (EMI) common in turbine halls and switchgear rooms. Communication integrity is further maintained through the Mark V’s built-in watchdog timers and redundant communication paths. For installations with extreme EMI exposure, fiber-optic communication converters can be added at the network boundary to eliminate ground loop and noise coupling issues.

Q3: Can the GE 531X135PRGAAM3 be used for system expansion, and what is the process for adding new I/O points to an existing Mark V installation?
Yes. The 531X135PRGAAM3 programmer card is the primary tool for expanding Mark V system configurations. Engineers use it to add new I/O board definitions, configure signal scaling parameters, and update control sequence programs (CSPs). Expansion I/O boards — such as the DS200TCQAG1BHF thermocouple input board or DS200TCDAG1AAA analog I/O board — are physically installed in available backplane slots and then commissioned via the programmer card interface. The process supports hot-standby configurations to minimize production downtime during expansion.

Q4: What does the 12-month warranty cover, and what is the typical lead time for the GE 531X135PRGAAM3?
The 12-month warranty covers manufacturing defects, communication interface failures, and component-level faults identified under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. ZYPLC maintains verified stock of the 531X135PRGAAM3, with typical lead times of 3–7 business days for international DHL/FedEx shipments. Emergency same-day dispatch is available for critical plant outage situations. Contact our team at plc.sales@zyplc.com or +86 19859288691 for real-time stock confirmation and pricing.
