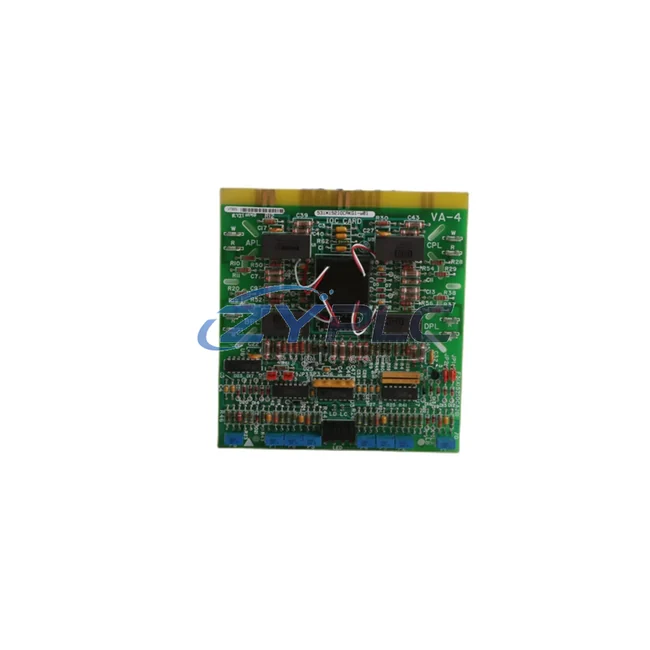

GE 531X152IOCAKG1 I/O Control Module for 531X

GE 531X152IOCAKG1 I/O Control Module for 531X Control System

The GE 531X152IOCAKG1 is a dedicated I/O control module engineered for deployment within the GE 531X series control platform — a proven architecture widely adopted across power generation, turbine control, and industrial process automation environments. Rather than functioning as a standalone component, the 531X152IOCAKG1 is designed to operate as an integrated node within a layered automation system, coordinating signal acquisition, processing, and distribution across the control hierarchy. Its role spans the boundary between the field I/O layer and the central processing layer, making it a critical element in maintaining system coherence, deterministic response, and long-term operational reliability.

In modern industrial control architectures, the integrity of the I/O layer directly determines the quality of control decisions made at the CPU level. The 531X152IOCAKG1 addresses this requirement by providing structured, noise-tolerant signal conditioning and channel isolation that preserves signal fidelity from field instruments — including thermocouples, RTDs, 4–20 mA transmitters, and discrete contact inputs — through to the control processor. This upstream signal quality is essential for turbine protection logic, process interlocks, and closed-loop regulatory control, where even minor signal degradation can trigger nuisance trips or compromise safety system response.

Product Specification Table

System Compatibility Notes

The 531X152IOCAKG1 achieves its full operational value when integrated within a complete GE 531X control system architecture. At the processing core, the GE IS215UCVEH2A or equivalent Mark VI UCVE controller board serves as the primary CPU, executing turbine protection algorithms and regulatory control loops. The 531X152IOCAKG1 feeds conditioned field signals directly into this processing layer via the backplane, ensuring that all analog and discrete data arrives with consistent timing and minimal latency.

Power distribution within the control cabinet is typically managed by the GE 531X307LTBAPG1 or a compatible 531X series power supply module, which provides the regulated +5 VDC and ±15 VDC rails required by the I/O module. Stable power delivery is non-negotiable in turbine control environments, where voltage transients can corrupt analog signal readings or trigger spurious discrete outputs. The 531X152IOCAKG1’s internal power conditioning circuitry provides an additional layer of protection against backplane-level noise.

For communication between the control rack and remote I/O panels or distributed control nodes, the system typically incorporates a GE IS215AEPAH1A Ethernet interface module or an IS200AEAAH1A application I/O board, enabling IONet-based data exchange across the plant network. The 531X152IOCAKG1 participates in this communication architecture by presenting its I/O data to the backplane bus in a format compatible with the Mark VI data acquisition cycle, supporting scan rates appropriate for turbine protection and process control applications.

Terminal connectivity between the 531X152IOCAKG1 and field wiring is facilitated through compatible terminal board assemblies such as the GE IS200TBAIH1C or IS200TBCIH1C terminal board, which provide screw-terminal or barrier-strip connections for thermocouple, RTD, and 4–20 mA field devices. These terminal boards mount in the I/O panel adjacent to the control rack and connect to the I/O module via shielded ribbon cables, maintaining signal integrity across the full signal chain from field instrument to CPU.

In redundant control architectures — common in gas turbine, steam turbine, and critical process applications — the 531X152IOCAKG1 may be deployed in a TMR (Triple Modular Redundant) or dual-redundant configuration alongside companion modules such as the GE IS215VCMIH2A VME communication module and the IS200VSVOH1B servo output board. This redundancy architecture ensures that a single module failure does not interrupt control output, with the system automatically voting between redundant signal paths to maintain continuous operation. The 531X152IOCAKG1’s channel isolation design supports this voting logic by preventing a fault on one channel from propagating to adjacent channels or redundant module paths.

Human-machine interface integration is achieved through the GE Cimplicity HMI platform or compatible SCADA systems connected via the plant Ethernet network, with the 531X152IOCAKG1’s I/O data presented to operators as real-time process variables, alarm states, and trend data. This end-to-end data path — from field sensor through the 531X152IOCAKG1, across the backplane, through the CPU, and up to the HMI — represents the complete control loop that the module is designed to support.

Industrial Application Notes

Power Generation — Gas & Steam Turbine Control: The 531X152IOCAKG1 is most commonly deployed in GE Frame 5, Frame 6, and Frame 7 gas turbine control panels, where it interfaces with exhaust thermocouples, compressor inlet RTDs, fuel valve position transmitters, and vibration monitor outputs. Its role in the turbine protection system requires reliable, deterministic signal acquisition with channel isolation sufficient to prevent ground loops from corrupting protection logic inputs. In steam turbine applications, the module similarly handles main steam temperature, pressure, and speed signal inputs that feed into the turbine supervisory control system.

Petrochemical & Refinery Process Control: In refinery and petrochemical plant DCS/PLC hybrid architectures, the 531X152IOCAKG1 serves as the field I/O interface for reactor temperature control loops, compressor surge control systems, and fired heater fuel-air ratio control. Its analog input channels support the 4–20 mA signals from smart HART transmitters commonly used in these environments, while its discrete I/O channels handle motor starter feedback, valve limit switches, and safety interlock inputs.

Water Treatment & Utilities: Municipal water treatment and wastewater facilities operating GE-based SCADA/PLC systems utilize the 531X152IOCAKG1 for pump station monitoring, chemical dosing control, and flow measurement integration. The module’s operating temperature range and channel isolation characteristics make it suitable for installation in outdoor or semi-outdoor control enclosures common in water utility infrastructure.

Mining & Metals Processing: In mining conveyor control systems, crusher drive control panels, and smelter process control applications, the 531X152IOCAKG1 provides the I/O interface layer between field sensors — including belt scale transmitters, motor current transducers, and temperature sensors — and the central control processor. Its robust construction and wide operating temperature tolerance support deployment in the harsh electrical environments typical of mining and metals processing facilities.

Product Compatibility FAQ

Q1: Is the GE 531X152IOCAKG1 compatible with both Mark V and Mark VI control platforms?
The 531X152IOCAKG1 is designed for the GE 531X series backplane architecture, which is most directly associated with the Mark V turbine control platform. Compatibility with Mark VI systems depends on the specific rack and backplane configuration in use. In hybrid upgrade projects where Mark VI controllers are installed in existing Mark V cabinets using 531X-series I/O infrastructure, the module may remain in service as part of the I/O layer. We recommend verifying backplane slot assignments and I/O configuration files with your GE system documentation or contacting ZYPLC for application-specific compatibility confirmation before installation.

Q2: Can the 531X152IOCAKG1 be used in a redundant I/O architecture, and what companion modules are required?
Yes. The 531X152IOCAKG1 supports deployment in redundant I/O configurations when paired with appropriate VME communication modules and a redundancy management controller such as the GE IS215VCMIH2A. In a dual-redundant or TMR architecture, two or three instances of the I/O module are installed in parallel rack slots, with the CPU voting logic selecting the valid signal path based on signal agreement algorithms. Proper redundancy configuration requires correct I/O configuration file settings, matched terminal board wiring, and verified backplane slot addressing. ZYPLC can supply matched module sets for redundant deployments and provide configuration guidance to support commissioning.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term maintenance?
All GE 531X152IOCAKG1 modules supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects and functional failures under normal operating conditions. The warranty covers module replacement or repair at no additional cost within the warranty period. For long-term maintenance planning, ZYPLC maintains inventory of 531X series modules to support scheduled preventive replacement programs, emergency spare procurement, and system upgrade projects. Our technical team can assist with module testing, configuration verification, and installation support. Contact us at plc.sales@zyplc.com or +86 19859288691 for warranty claims or maintenance planning inquiries.
