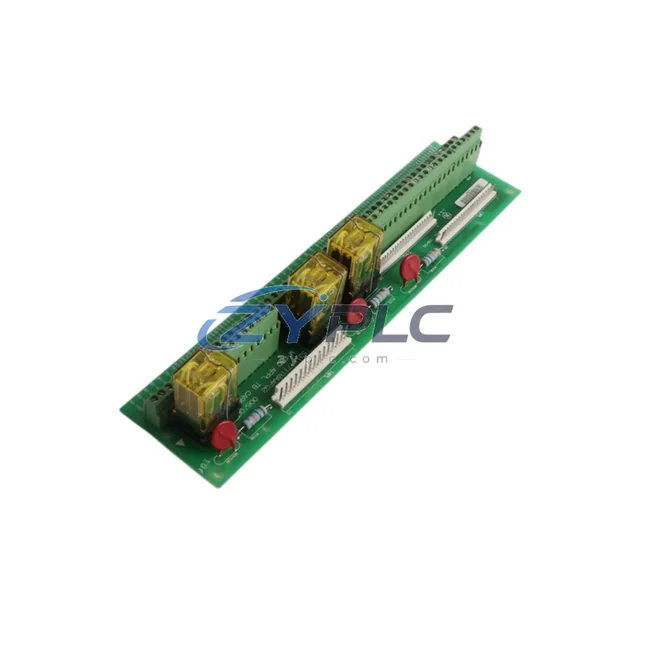

GE 531X171TMAAFG2 Relay Card for 531X Series

GE 531X171TMAAFG2 Relay Card for 531X Series

The GE 531X171TMAAFG2 Micro App 4TBX Relay Card is a precision-engineered output module designed to operate as an integral component within the GE 531X Series digital control platform. Rather than functioning as a standalone device, this relay card is purpose-built to serve the output execution layer of a layered automation architecture — bridging the logic decisions made at the CPU level down to the physical actuation of field devices. In complex industrial environments where system consistency, signal integrity, and long-term maintainability are non-negotiable, the 531X171TMAAFG2 delivers the relay switching reliability that keeps the entire control loop stable and responsive.

Within a complete GE 531X Series control system, the architecture typically spans multiple functional layers: the central processing layer (CPU and co-processor boards), the I/O signal conditioning layer, the communication and network layer, the power distribution layer, the human-machine interface layer, and the field execution layer where relay cards like the 531X171TMAAFG2 operate. Each layer depends on the others for coherent system behavior, and the relay card’s role is to translate discrete output commands from the CPU into reliable contact closures that drive motors, solenoids, alarms, and other actuators in the field.

Product Specification Table

System Compatibility Notes

The 531X171TMAAFG2 does not operate in isolation — its value is realized only when it is correctly positioned within a coordinated GE 531X Series control system. A typical architecture built around this relay card will include a GE 531X305NTBAPG1 CPU board or equivalent central processor that generates the discrete output commands routed to the relay card via the system backplane. The backplane itself — such as the GE 531X139APCAJG1 card rack assembly — provides the physical and electrical interconnect between all modules in the rack, ensuring that signal timing and power distribution remain consistent across the entire card set.

On the power distribution side, the system relies on a dedicated GE 531X111PSHARG1 power supply module to deliver regulated DC power to the card rack, protecting sensitive logic circuits from line voltage fluctuations. Upstream of the relay card, analog and digital input signals are conditioned by modules such as the GE 531X121PCHARG1 analog input card and GE 531X135SPCAJG1 digital I/O module, which feed real-time process data to the CPU for decision-making. The relay card then acts on those decisions by switching field-side circuits.

For communication and supervisory integration, the 531X Series architecture typically incorporates a GE 531X132PRGARG1 communication gateway module or equivalent Modbus/serial interface card, enabling the control system to exchange data with SCADA platforms, distributed control systems (DCS), or plant historians. At the human-machine interface layer, an GE Cimplicity HMI workstation or compatible operator panel provides real-time visualization of relay states, alarm conditions, and system diagnostics — giving operators full visibility into the execution layer where the 531X171TMAAFG2 operates.

In redundant architecture designs — common in power generation and critical process applications — a secondary relay card and mirrored CPU configuration ensure that a single module failure does not interrupt system operation. The 531X171TMAAFG2 is designed to support hot-swap replacement procedures, minimizing downtime during scheduled maintenance or unplanned failures. Paired with a GE 531X174PCHARG1 termination board or equivalent field wiring interface, the relay card’s output contacts are safely routed to terminal blocks for clean, maintainable field wiring.

Industrial Application Notes

The GE 531X171TMAAFG2 Relay Card finds its primary application in power generation and turbine control systems, where the GE 531X Series platform has a long-established presence. In gas turbine and steam turbine control panels, relay output cards are responsible for switching fuel valve solenoids, ignition circuits, cooling fan contactors, and alarm annunciators — all of which require the high-reliability contact switching that this module provides. The 531X architecture’s deterministic scan cycle ensures that relay outputs respond to CPU commands within predictable time windows, which is critical for turbine sequencing logic.

In petrochemical and refinery process control environments, the 531X171TMAAFG2 is deployed in emergency shutdown (ESD) panels and safety instrumented systems (SIS) where relay outputs must perform reliably under high-temperature, high-vibration conditions. The module’s industrial-grade construction and rack-based installation make it well-suited for control rooms and field junction boxes in these demanding environments.

For water treatment and municipal utility automation, the relay card controls pump motor starters, valve actuators, and chemical dosing systems within SCADA-integrated control panels. Its compatibility with the broader 531X I/O architecture allows water utility operators to expand system I/O capacity without replacing the central CPU or communication infrastructure — a significant advantage for aging plant modernization projects.

In mining and metallurgical processing applications, where conveyor systems, crushers, and smelting equipment require robust discrete output control, the 531X171TMAAFG2 provides the switching capacity needed to interface with motor control centers (MCCs) and high-current contactors. The relay card’s dry contact outputs are electrically isolated from the control logic, protecting the CPU and backplane from field-side voltage transients.

Across all these industries, the 531X171TMAAFG2 supports long-term maintenance strategies by remaining available as a stocked spare part. Facilities that have standardized on the GE 531X platform benefit from the ability to source replacement relay cards without requiring system redesign or CPU migration — preserving their capital investment in the existing control architecture.

Product Compatibility FAQ

Q1: Is the GE 531X171TMAAFG2 compatible with all variants of the 531X Series card rack?
The 531X171TMAAFG2 is designed for use within the GE 531X Series card rack and backplane ecosystem. Compatibility depends on the specific rack assembly and backplane revision in your system. We recommend verifying the rack part number (e.g., 531X139APCAJG1 or equivalent) against GE’s system configuration documentation before installation. Our technical team can assist with compatibility verification as part of the pre-shipment support included with every order.

Q2: Can this relay card be installed in a running system, and what are the commissioning requirements?
In systems designed for hot-swap module replacement, the 531X171TMAAFG2 can be installed with the rack powered, provided the system’s safety interlock logic permits it. However, for initial commissioning or replacement in non-redundant architectures, a controlled shutdown is recommended to prevent unintended relay actuation during card insertion. After installation, relay output states should be verified through the HMI or engineering workstation before returning the system to automatic operation. Our team provides commissioning guidance documentation with each unit shipped.

Q3: What does the warranty terms confirmed during quotation cover, and how is it supported?
The warranty terms confirmed during quotation covers manufacturing defects, component failure, and functional non-performance under normal operating conditions as specified in the GE 531X Series technical documentation. Warranty claims are processed through our direct support channel — contact us at plc.sales@zyplc.com or +86 19859288691 to initiate a return merchandise authorization (RMA). Replacement units are dispatched from stock to minimize system downtime, and all warranty repairs or replacements are tested and verified before shipment.
