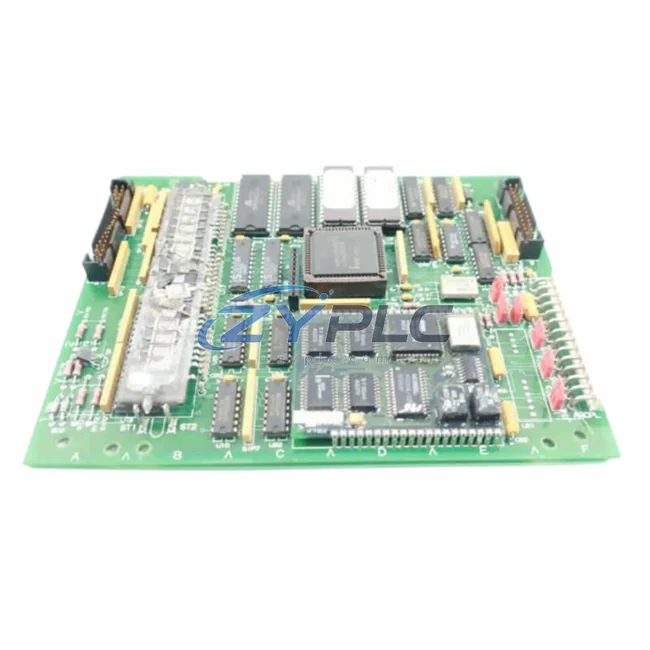

GE 531X301DCCAGG2DC DCS Control Board for Mark VI

GE 531X301DCCAGG2DC DCS Control Board for Mark VI

The GE 531X301DCCAGG2DC is a high-integrity DCS control board engineered specifically for deployment within GE’s Mark VI turbine control platform. Rather than functioning as a standalone component, this board occupies a critical position within a layered automation architecture — bridging the control layer, I/O signal processing layer, and communication backbone of a complete turbine management system. Its design philosophy centers on system consistency, deterministic signal flow, and long-term operational reliability across demanding industrial environments including power generation, oil and gas, petrochemical processing, and heavy manufacturing.

In a fully integrated Mark VI control cabinet, the 531X301DCCAGG2DC works in close coordination with upstream CPU modules such as the IS215UCVEH2A and IS200TREGH1B terminal board, which handle high-speed logic execution and real-time turbine sequencing. The board’s role is to condition and route analog and digital I/O signals between field instrumentation and the central processing layer, ensuring that every sensor reading — from thermocouple inputs to vibration transducers — is accurately represented in the control loop without latency or signal degradation.

From a system architecture perspective, the 531X301DCCAGG2DC integrates seamlessly with GE Mark VI I/O packs including the IS200IOCIH1A and IS200AEPAH1A analog expansion modules. These I/O packs extend the system’s signal acquisition capacity without requiring additional controller hardware, making the 531X301DCCAGG2DC a natural anchor point for modular system expansion. Engineers designing multi-turbine or combined-cycle plant architectures will find this board particularly valuable for maintaining signal integrity across distributed I/O configurations.

At the network and communication layer, the Mark VI architecture relies on the IONET and ARCNET communication protocols to synchronize data between the control board, the HMI workstation, and redundant controller modules. The 531X301DCCAGG2DC supports this communication framework, enabling real-time data exchange with operator interface systems such as the GE Cimplicity HMI platform. This ensures that plant operators receive accurate, low-latency process data for turbine speed, exhaust temperature, fuel flow, and protective relay status — all critical parameters in continuous process environments.

Redundancy is a core design requirement in power generation and critical process control. The 531X301DCCAGG2DC supports TMR (Triple Modular Redundancy) configurations when paired with companion boards and the IS215VCMIH2C voter module. In a TMR architecture, three independent control paths process identical input signals simultaneously, with the voter module selecting the majority-correct output. This eliminates single points of failure at the control board level and is essential for applications where unplanned downtime carries significant safety or financial consequences.

At the power supply layer, the Mark VI system typically employs the IS200EPSMG1A or equivalent power supply module to deliver regulated DC voltage to the control board and associated I/O packs. Stable power delivery is non-negotiable for deterministic control performance, and the 531X301DCCAGG2DC is designed to operate within the voltage and current tolerances defined by GE’s Mark VI system specification. Engineers commissioning new installations or replacing boards in existing cabinets should verify power rail compatibility as part of the pre-installation checklist.

For system commissioning and long-term maintenance, the 531X301DCCAGG2DC is fully compatible with GE’s Toolbox software environment, which provides configuration management, diagnostic monitoring, and firmware update capabilities. Maintenance engineers can use Toolbox to verify board health, review I/O channel mapping, and perform loop checks without interrupting turbine operation. This reduces scheduled maintenance windows and supports predictive maintenance strategies that extend overall system service life.

In layered automation systems serving the power sector, the 531X301DCCAGG2DC contributes to a control hierarchy that spans from field-level sensors and actuators through the DCS control layer to the plant-wide SCADA and historian systems. Its compatibility with the broader Mark VI ecosystem — including the IS200TREGH1B terminal board for thermocouple signal conditioning and the IS215ACLEH1A AC line filter module — means that system integrators can build complete, validated control architectures using proven GE components without introducing compatibility risk.

All units supplied by ZYPLC are tested, inspected, and covered by a warranty terms confirmed during quotation. Our inventory management process ensures that each 531X301DCCAGG2DC board is verified for functional integrity prior to dispatch, supporting rapid deployment in both new installations and emergency replacement scenarios. With availability confirmed by RFQ availability and same-day shipping capability, ZYPLC minimizes the risk of extended turbine downtime caused by control board failure.

Product Specification Table

System Compatibility Notes

The 531X301DCCAGG2DC does not operate in isolation — its value is realized through its integration with the full suite of Mark VI system components. In a typical turbine control cabinet, the board interfaces directly with the IS215UCVEH2A controller module, which executes the turbine protection and sequencing logic. Signal inputs from field-mounted thermocouples are conditioned through the IS200TREGH1B terminal board before being passed to the control board for processing. On the analog output side, the IS200AEPAH1A expansion pack extends the system’s capacity to drive control valves and actuators across multiple turbine stages.

For communication redundancy, the Mark VI architecture pairs the 531X301DCCAGG2DC with the IS215VCMIH2C voter module in TMR configurations, ensuring that control decisions are validated across three independent processing paths. The IS200EPSMG1A power supply module provides the regulated DC power rail required for stable board operation, while the IS215ACLEH1A AC line filter protects the control electronics from power quality disturbances common in industrial environments. At the HMI layer, the GE Cimplicity workstation communicates with the control board via the IONET network, providing operators with real-time turbine data and alarm management. For applications requiring expanded I/O density, the IS200IOCIH1A I/O controller interface module provides additional channel capacity without requiring a second controller, preserving system architecture simplicity and reducing cabinet footprint.

Industrial Application Notes

The 531X301DCCAGG2DC finds application across a broad range of industrial sectors where turbine-based power generation or mechanical drive systems are central to operations. In power generation plants — including gas turbine, steam turbine, and combined-cycle facilities — the board supports the real-time control loops that govern turbine speed, load sharing, and protective shutdown sequences. Its TMR compatibility makes it particularly suited to baseload generation units where continuous availability is a contractual and operational requirement.

In oil and gas processing facilities, the Mark VI platform with the 531X301DCCAGG2DC is commonly deployed to control gas compression trains and mechanical drive turbines. The board’s robust signal conditioning capability handles the high channel counts typical of compressor control applications, including surge protection, anti-surge valve control, and vibration monitoring integration. In petrochemical and refinery environments, the board supports fired heater control and rotating equipment management, where precise temperature and flow control directly impacts product quality and process safety.

For water treatment and pumping stations that rely on turbine-driven high-capacity pumps, the 531X301DCCAGG2DC provides the control infrastructure needed to manage variable-speed operation and integrate with plant-wide SCADA systems. In mining and metallurgical operations, the board supports the control of large rotating equipment including ball mills, crushers, and conveyor drive systems where reliable control architecture is essential for production continuity. Across all these applications, the board’s compatibility with the Mark VI ecosystem ensures that system integrators can leverage GE’s established engineering documentation, spare parts network, and technical support infrastructure.

Product Compatibility FAQ

Q1: Is the 531X301DCCAGG2DC compatible with both Mark VI and Mark VIe control systems?
The 531X301DCCAGG2DC is designed and validated for the GE Mark VI turbine control platform. While GE’s Mark VIe system shares architectural concepts with the Mark VI, it uses a different hardware form factor and communication infrastructure. Before deploying this board in a Mark VIe application, engineers should verify compatibility against the specific system configuration and GE’s hardware compatibility documentation. ZYPLC’s technical team can assist with compatibility assessment prior to purchase.

Q2: Can this board be installed as a direct replacement in an existing Mark VI cabinet without system reconfiguration?
In most cases, the 531X301DCCAGG2DC can be installed as a direct replacement for a failed board of the same part number without requiring changes to the Toolbox configuration or I/O mapping. However, engineers should verify that the replacement board’s firmware revision is compatible with the existing system configuration file. ZYPLC supplies boards with documented revision information to support this verification process. A loop check and functional test following installation is recommended as standard commissioning practice.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available during the warranty period?
ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Boards that fail during the warranty period are eligible for replacement or repair at no additional cost. During the warranty period, ZYPLC provides technical support for installation and commissioning questions, including guidance on system integration, I/O configuration, and communication setup within the Mark VI architecture. Warranty claims are processed promptly to minimize impact on plant operations.
