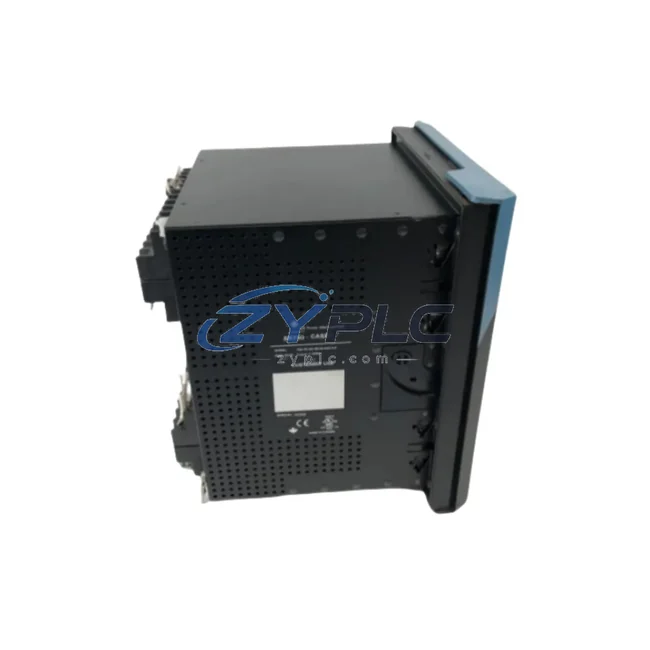

GE 750-P5-G5-S5-HI-A20-R Feeder Management Relay | SR Series

GE 750-P5-G5-S5-HI-A20-R: Industrial Data Link for Smart Feeder Protection Networks

The GE 750-P5-G5-S5-HI-A20-R is a high-performance SR Series Feeder Management Relay engineered for mission-critical power distribution and industrial automation environments. Designed to serve as the intelligent nerve center of feeder protection circuits, this relay integrates seamlessly into modern SCADA architectures, substation automation systems, and smart factory power management networks. With native support for Modbus RTU and DNP3 communication protocols, the 750-P5-G5-S5-HI-A20-R enables real-time data exchange between field-level protection devices and upper-level control systems — eliminating data silos and delivering full feeder visibility across the industrial network.

In today’s smart manufacturing and utility environments, feeder protection is no longer a standalone function. The GE 750-P5-G5-S5-HI-A20-R acts as a critical node in the industrial data chain, bridging the gap between primary switchgear, distribution feeders, and centralized SCADA/HMI platforms. Whether deployed in a manufacturing plant, water treatment facility, oil and gas installation, or utility substation, this relay provides the communication backbone that modern industrial connectivity demands.

Compatibility & Integration Notes

Connected Automation Data Flow

The GE 750-P5-G5-S5-HI-A20-R sits at the heart of a layered industrial communication architecture. At the field level, current transformers (CTs) and voltage transformers (VTs) feed analog signals directly into the relay’s high-accuracy measurement inputs. These signals are processed in real time, with the relay executing protection algorithms — overcurrent, earth fault, negative sequence, and thermal overload — within milliseconds of detecting an anomaly.

Upstream, the relay communicates via Modbus RTU over RS-485 to a GE D60 Line Distance Relay or a GE C60 Breaker Protection Relay operating within the same protection zone, enabling coordinated tripping and interlocking logic across the feeder network. In substations where IEC 61850 GOOSE messaging is required, the 750 series can be paired with a GE N60 Network Stability and Synchrophasor Measurement System or a compatible protocol gateway to bridge legacy serial communication into modern Ethernet-based substation LANs.

At the control layer, the relay’s DNP3 interface connects directly to GE UR Series master stations or third-party RTUs such as the Schneider Electric SCADAPack or ABB RTU560, transmitting timestamped event records, metering data, and alarm states to the SCADA master. This data stream feeds into historian platforms and HMI displays — including GE EnerVista Viewpoint Monitoring — where operators gain real-time visibility into feeder loading, fault history, and protection status without leaving the control room.

For distributed industrial sites, the 750-P5-G5-S5-HI-A20-R integrates with edge gateway devices such as the Moxa MGate MB3480 or similar Modbus-to-Ethernet converters, enabling remote diagnostics and configuration over TCP/IP networks. This architecture supports remote firmware updates, relay setting changes, and waveform retrieval — reducing the need for on-site maintenance visits and dramatically cutting mean time to repair (MTTR) in geographically dispersed installations.

In smart factory power distribution applications, the relay works alongside GE Multilin 850 Feeder Protection Relays and GE Multilin 735 Motor Protection Relays to form a coordinated protection scheme across the entire low-voltage and medium-voltage distribution network. Combined with power quality meters such as the GE PM800 Series, the system delivers a complete picture of energy consumption, power factor, harmonic distortion, and demand trends — all accessible through a unified SCADA dashboard.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial power management is the fragmentation of protection and monitoring data across incompatible systems. Legacy feeder relays often operate as isolated devices — tripping breakers and logging events locally, but failing to share that intelligence with the broader control network. The result is reactive maintenance, delayed fault diagnosis, and blind spots in energy management.

The GE 750-P5-G5-S5-HI-A20-R directly addresses these challenges through its dual-protocol communication architecture. By supporting both Modbus RTU for legacy SCADA integration and DNP3 for utility-grade telemetry, the relay eliminates the need for external protocol converters in most installations — reducing network complexity, latency, and potential points of failure.

For sites transitioning from paper-based maintenance to digital asset management, the relay’s comprehensive event logging and waveform capture capabilities provide the raw data needed to implement predictive maintenance programs. Fault waveforms can be retrieved remotely via SCADA, analyzed offline using GE EnerVista Viewpoint Engineer, and used to fine-tune protection settings without interrupting production.

In multi-feeder installations, the 750-P5-G5-S5-HI-A20-R supports load shedding schemes and automatic reclosing sequences that can be coordinated across multiple relays via SCADA commands — enabling intelligent, system-wide responses to fault conditions rather than isolated breaker trips. This capability is essential for maintaining production continuity in industries where unplanned downtime carries significant financial consequences.

System expansion is equally straightforward. The relay’s modular option card architecture — reflected in the P5, G5, S5, HI, and A20 option codes of this specific model — allows for customized I/O configurations, additional communication ports, and enhanced metering capabilities without replacing the base unit. As industrial networks grow and evolve, the 750-P5-G5-S5-HI-A20-R scales with them.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication port operation, protection element pickup, and I/O wiring continuity before dispatch. This ensures that the relay arrives on-site ready for commissioning — minimizing installation time and reducing the risk of field defects.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE 750-P5-G5-S5-HI-A20-R support, and is it compatible with my existing SCADA system?
The GE 750-P5-G5-S5-HI-A20-R natively supports Modbus RTU and DNP3 Level 2 protocols over RS-485 serial interfaces. These are among the most widely deployed protocols in industrial SCADA and utility automation systems, ensuring compatibility with the vast majority of RTUs, master stations, and HMI platforms currently in service. For IEC 61850 environments, the relay can be integrated via a compatible protocol gateway.

Q2: How does the relay handle communication latency in time-critical protection applications?
Protection functions in the GE 750-P5-G5-S5-HI-A20-R operate independently of the communication layer — trip decisions are made locally by the relay’s onboard processor within milliseconds, regardless of SCADA polling cycles or network load. Communication latency affects only the reporting of events and metering data to the SCADA master, not the relay’s core protection performance.

Q3: Can the GE 750-P5-G5-S5-HI-A20-R be configured and diagnosed remotely without a site visit?
Yes. Using GE EnerVista SR Setup software over the relay’s serial communication port — or via a Modbus-to-Ethernet gateway — engineers can remotely access relay settings, retrieve event logs and fault waveforms, and modify protection parameters. This remote diagnostic capability significantly reduces maintenance costs and response times for distributed industrial installations.

Q4: What warranty and quality assurance does ZYPLC provide for this relay?
All GE 750-P5-G5-S5-HI-A20-R units supplied by ZYPLC are covered by a warranty terms confirmed during quotation against manufacturing defects. Each unit undergoes pre-shipment functional testing to verify communication, protection, and I/O performance. We maintain RFQ-confirmed sourcing for export shipping options available, and our technical team is available to support commissioning, troubleshooting, and system integration queries.
