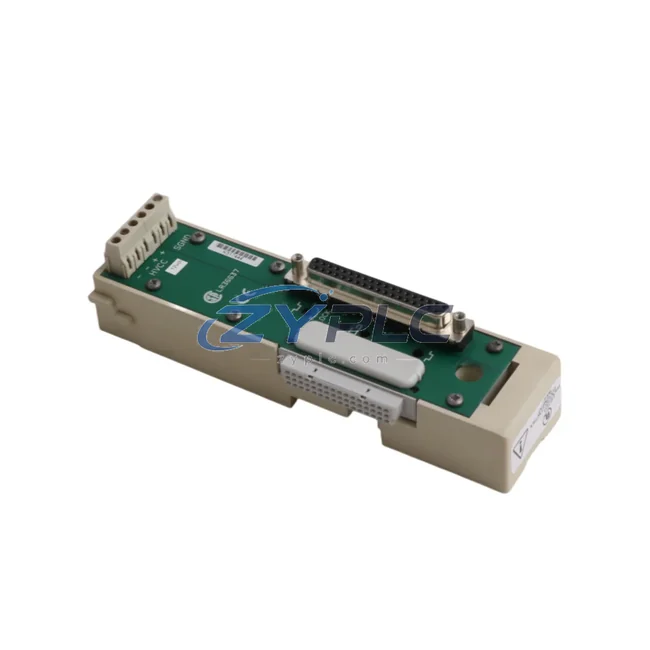

GE 8020-CE-RH PLC Carrier Extender for Series 90-20 Systems

GE 8020-CE-RH Industrial Network Interface for Series 90-20 Systems: Bridging the Industrial Data Link in Smart Factory Environments

The GE 8020-CE-RH is a purpose-built PLC Carrier Extender designed for GE Series 90-20 programmable logic controller systems. In modern industrial automation environments, the physical architecture of a PLC rack is not merely a hardware concern — it is the backbone of every data transaction between field devices, control logic, and supervisory systems. The 8020-CE-RH extends the Series 90-20 backplane, enabling engineers to expand I/O capacity, distribute control modules across wider rack configurations, and maintain uninterrupted signal integrity across the entire automation data chain.

From the moment a sensor signal enters the field network to the point where it is processed by the CPU and reported to a SCADA or HMI platform, every millisecond of latency and every byte of data integrity depends on the reliability of the underlying rack infrastructure. The GE 8020-CE-RH ensures that this foundation remains solid, scalable, and fully compatible with the broader GE Series 90-20 ecosystem.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical Series 90-20 control architecture, the GE 8020-CE-RH Carrier Extender sits at the heart of the rack expansion strategy. Consider a manufacturing line where a GE Series 90-20 CPU module — such as the IC693CPU311 or IC693CPU321 — manages process logic for a multi-zone production cell. As the number of I/O points grows beyond the capacity of a single rack, the 8020-CE-RH provides the physical and electrical bridge to a secondary rack, allowing additional GE IC693MDL series discrete I/O modules and IC693ALG analog input/output modules to be integrated without interrupting the existing control loop.

On the communication side, a GE IC693CMM311 Communications Coprocessor or IC693CMM321 Ethernet Interface Module installed in the primary rack handles upstream data exchange with SCADA platforms such as GE iFIX or Wonderware InTouch HMI, transmitting real-time process values — temperatures, pressures, flow rates, motor speeds — at scan cycle intervals. The 8020-CE-RH ensures that I/O data from the extended rack reaches the CPU without backplane latency spikes, maintaining the deterministic timing that SCADA historians and alarm management systems depend on.

Further downstream, GE Series 90-20 compatible remote I/O drop controllers and Genius Bus Interface Units (BIU) can be networked to aggregate sensor data from distributed field instruments — including proximity switches, thermocouple inputs, and 4–20 mA pressure transmitters — and relay that data back through the extended rack to the CPU. Variable frequency drives (VFDs) connected via Modbus RTU or Profibus DP adapters also benefit from the expanded I/O capacity that the 8020-CE-RH enables, allowing drive status, fault codes, and speed references to be monitored and adjusted directly from the PLC program.

For edge-level diagnostics, an industrial edge gateway — such as those running on MQTT or OPC-UA protocols — can subscribe to the SCADA data stream fed by the Series 90-20 system, enabling remote monitoring dashboards and predictive maintenance alerts without requiring direct access to the PLC rack. The 8020-CE-RH’s role in maintaining a clean, extended backplane bus is what makes this entire data chain reliable and scalable.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy and hybrid industrial environments is data isolation — the condition where field devices, PLCs, and supervisory systems operate in disconnected silos, making it impossible to achieve true production transparency. The GE 8020-CE-RH directly addresses the physical layer of this problem by enabling rack expansion without requiring a complete system redesign.

Protocol fragmentation is another common pain point. When a Series 90-20 system needs to communicate with newer Ethernet-based SCADA platforms or OPC-UA-enabled HMI terminals, the communication modules installed in the extended rack — made possible by the 8020-CE-RH — provide the protocol gateway function. Engineers can add GE IC693CMM321 Ethernet modules or third-party Modbus TCP gateways to the expanded rack, bridging the gap between legacy serial protocols and modern industrial Ethernet without replacing the entire PLC platform.

Remote monitoring and alarm management are significantly improved when the I/O architecture is properly expanded. With the 8020-CE-RH in place, additional analog input modules can be added to monitor critical process variables — motor temperatures, tank levels, conveyor speeds — and feed that data to the SCADA historian in real time. Alarm thresholds can be configured at the PLC level, with notifications pushed to operator HMI screens and remote mobile dashboards via the SCADA middleware layer.

System scalability is built into the design philosophy of the Series 90-20 platform, and the 8020-CE-RH is the key enabler of that scalability. Rather than investing in a full PLC platform migration when I/O capacity is reached, plant engineers can extend the existing rack, add the required modules, and continue operating on the proven Series 90-20 architecture — protecting the original capital investment while meeting new production demands.

Every unit of the GE 8020-CE-RH shipped by ZYPLC undergoes functional testing and inspection prior to dispatch, ensuring that the module performs correctly in the target rack configuration. With a warranty terms confirmed during quotation and global express shipping via DHL and FedEx, customers can rely on fast delivery and post-sale support for their critical automation projects.

Industrial Connectivity FAQ

Q1: Does the GE 8020-CE-RH introduce communication latency between the primary and extended rack?
The 8020-CE-RH is designed to maintain the Series 90-20 backplane bus timing specifications. Under normal operating conditions, the carrier extender does not introduce measurable latency beyond the standard backplane scan cycle. For time-critical applications, it is recommended to verify the total I/O scan time with the GE Series 90-20 CPU configuration tool after rack expansion.

Q2: Which GE Series 90-20 modules are compatible with the 8020-CE-RH extended rack?
The 8020-CE-RH supports the full range of GE Series 90-20 I/O and communication modules, including IC693MDL discrete I/O, IC693ALG analog I/O, IC693CMM communication coprocessors, and IC693PWR power supply modules. Compatibility with specific CPU models should be verified against the GE Series 90-20 hardware reference manual.

Q3: Can the 8020-CE-RH be used in a SCADA-integrated environment with Modbus or Ethernet protocols?
Yes. The 8020-CE-RH extends the rack to accommodate additional communication modules, such as the IC693CMM321 Ethernet Interface or Modbus RTU coprocessors. These modules, once installed in the extended rack, enable full SCADA and HMI integration using standard industrial protocols, including Modbus TCP, SNP, and SNP-X.

Q4: What warranty and testing standards apply to the GE 8020-CE-RH supplied by ZYPLC?
All GE 8020-CE-RH units supplied by ZYPLC are functionally tested and inspected before shipment. Each unit carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Units are shipped via DHL or FedEx Express with full tracking, and our technical team is available to support installation and commissioning queries.
