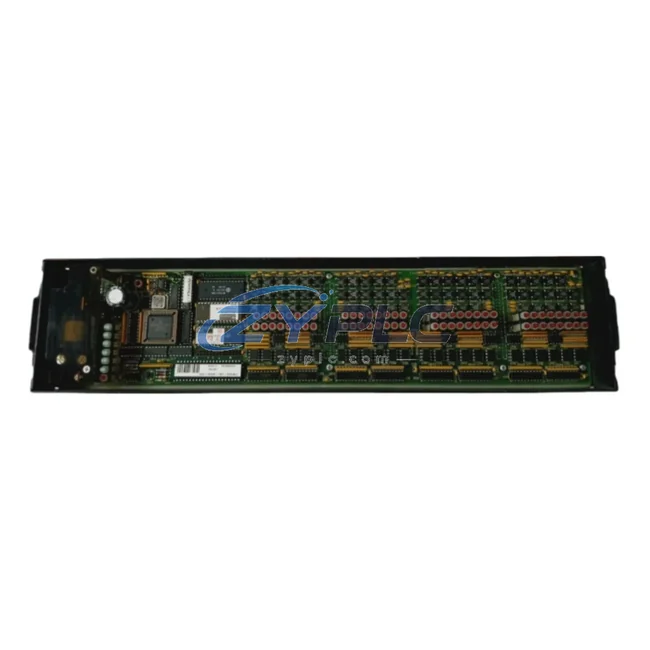

GE D20ADLUULU8U Analog Output Module D20 RTU

GE D20ADLUULU8U Analog Output Module for D20 RTU Automation

The GE D20ADLUULU8U is a high-efficiency analog output module engineered for the GE D20 RTU (Remote Terminal Unit) platform, widely deployed in substation automation, power distribution networks, and industrial SCADA environments. As energy costs and operational efficiency become central concerns for modern industrial facilities, the D20ADLUULU8U delivers precision analog signal control that directly reduces unnecessary energy consumption, minimizes actuator wear, and supports tighter production line synchronization.

In energy-intensive industrial environments — from power utilities to process manufacturing — the ability to deliver accurate, low-latency analog output signals is critical. The D20ADLUULU8U provides stable 4–20 mA or 0–10 V output channels that interface directly with field devices such as variable frequency drives (VFDs), control valves, and proportional actuators. By ensuring that control signals are clean and precisely calibrated, the module eliminates signal drift that can cause motors and drives to operate outside their optimal efficiency bands, wasting energy and accelerating mechanical degradation.

Product Specification Table

System Compatibility and Application

The D20ADLUULU8U does not operate in isolation — it is a precision component within a broader industrial automation system. In a typical D20 RTU deployment, the module works alongside the GE D20 CPU module (such as the D20-3300 or D20-3400 series processor) which handles real-time data acquisition and control logic execution. The CPU module polls field data, processes DNP3 or Modbus protocol communications, and issues analog setpoints through the D20ADLUULU8U to downstream field devices.

On the drive side, the analog output signals from the D20ADLUULU8U are commonly wired to GE AF-600 FP series variable frequency drives or compatible third-party VFDs, enabling smooth motor speed regulation that eliminates the energy spikes associated with direct-on-line motor starts. When paired with a GE D20 digital input module (such as the D20DILU series) for feedback confirmation, the system creates a closed-loop control architecture that continuously verifies actuator response and adjusts output accordingly — reducing both unplanned downtime and mechanical stress.

For power quality monitoring and energy data collection, the D20ADLUULU8U integrates within systems that include GE Multilin power meters (such as the EPM 7000 or EPM 9900 series), which capture real-time kWh, power factor, and harmonic distortion data. This energy metering data feeds back into the SCADA layer, allowing operators to correlate analog output commands with actual energy consumption trends and identify inefficiencies at the field device level.

Communication integrity is maintained through the GE D20 communication module (D20-COM series), which supports DNP3 over serial and Ethernet, ensuring that analog setpoints are transmitted reliably even in electrically noisy substation environments. The GE D20 power supply module provides regulated 24 V DC to the backplane, ensuring that all analog output channels maintain signal accuracy without voltage-induced drift — a common source of hidden unplanned downtime in poorly powered RTU systems.

For HMI visualization and operator interaction, the D20ADLUULU8U’s output data is typically surfaced through GE iFIX SCADA software or compatible HMI platforms, giving plant engineers real-time visibility into analog output states, trend histories, and alarm conditions. This visibility is essential for identifying when a control loop is consuming more energy than expected due to setpoint instability or actuator degradation.

Maintenance and Replacement Notes

In real-world industrial deployments, the GE D20ADLUULU8U contributes to maintenance planning across several dimensions. In power utility substations, the module controls tap changer positions and reactive power compensation equipment with high precision, reducing transmission losses and improving power factor — directly lowering energy costs at the grid level. Facilities that have upgraded from older fixed-output relay-based control to the D20ADLUULU8U’s proportional analog control have reported measurable reductions in reactive power penalties from their utility providers.

In process manufacturing environments, the module’s 8-channel analog output capability allows simultaneous control of multiple process variables — flow rates, pressure setpoints, temperature control valves — from a single module footprint. This consolidation reduces the number of control devices required, lowering both capital cost and the aggregate power draw of the control panel. Each channel’s high-resolution output ensures that control valves and actuators operate at their designed efficiency points rather than hunting between positions, which is a significant source of unplanned downtime in poorly tuned analog control systems.

From a maintenance and uptime perspective, the D20ADLUULU8U’s robust industrial design supports predictive maintenance strategies. Because the module delivers consistent, repeatable output signals, deviations in field device response — such as a VFD requiring increasingly large setpoint changes to achieve the same motor speed — can be detected early as indicators of mechanical wear or drive degradation. This allows maintenance teams to schedule interventions before failures occur, avoiding the energy-intensive restart cycles and production losses associated with unplanned downtime.

All units supplied by ZYPLC are fully tested prior to shipment, with functional verification of all analog output channels across the specified signal range. Stock is maintained for fast dispatch, supporting urgent replacement requirements in critical infrastructure environments where downtime costs are measured in thousands of dollars per hour. Each D20ADLUULU8U is backed by a warranty terms confirmed during quotation, providing procurement teams with the confidence to specify refurbished industrial components without compromising on reliability commitments.

Product Sourcing FAQ

Q1: How does the GE D20ADLUULU8U help reduce energy consumption in substation automation?
The D20ADLUULU8U provides high-resolution analog output signals that enable precise control of field devices such as variable frequency drives, control valves, and reactive power compensation equipment. Precise control eliminates actuator hunting and over-cycling, which are primary sources of unnecessary energy consumption in analog control systems. By maintaining tight control loop accuracy, the module helps facilities operate field equipment at optimal efficiency points rather than in energy-wasting oscillation.

Q2: Is the D20ADLUULU8U compatible with modern SCADA and communication protocols?
Yes. The D20ADLUULU8U is designed for the GE D20 RTU platform, which natively supports DNP3 (serial and Ethernet), Modbus RTU, and Modbus TCP protocols. This makes it compatible with a wide range of SCADA systems including GE iFIX, Wonderware, and other industry-standard platforms. The module can be integrated into both legacy D20 RTU installations and modernized hybrid architectures without requiring protocol conversion hardware.

Q3: Can the D20ADLUULU8U replace a failed analog output module in an existing D20 RTU system without reconfiguration?
In most cases, yes. The D20ADLUULU8U is a direct form-fit-function replacement for compatible GE D20 analog output modules. Configuration parameters are stored in the D20 CPU module, so a module swap typically does not require re-engineering of the control program. However, it is recommended to verify firmware compatibility with your specific D20 CPU version before installation. ZYPLC’s technical team can assist with compatibility verification prior to purchase.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every GE D20ADLUULU8U supplied by ZYPLC undergoes functional testing that verifies all analog output channels across the full signal range (4–20 mA and 0–10 V as applicable), power supply integrity, and backplane communication. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides replacement or repair support with priority handling to minimize impact on production operations.
