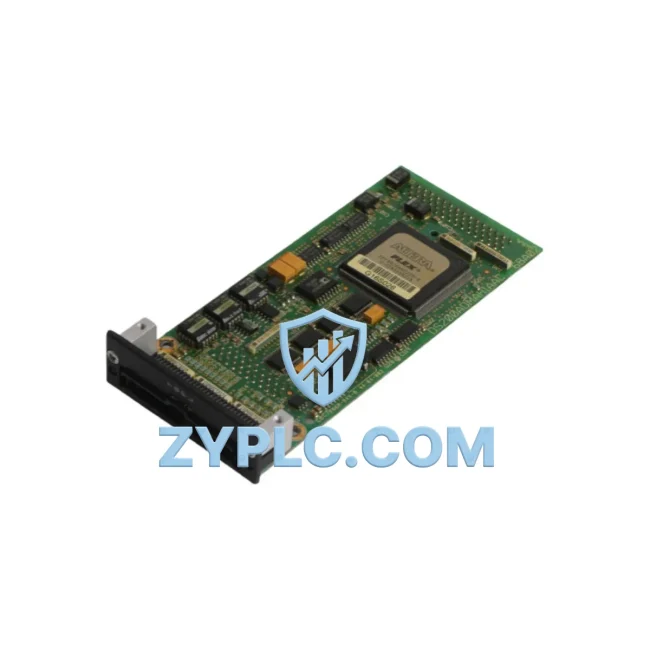

GE DS200ADMAH1AAC Industrial Network Interface for Mark VI Systems

GE DS200ADMAH1AAC Industrial Network Interface for Mark VI Systems: Precision Analog Data Link for Smart Factory Connectivity

The GE DS200ADMAH1AAC is a high-performance Analog Input Board engineered for the GE Mark VI turbine control platform — one of the most widely deployed distributed control architectures in power generation, oil & gas, and heavy industrial environments. Designed to serve as a critical node in the plant-wide data acquisition chain, the DS200ADMAH1AAC captures real-time analog signals from field instruments and transmits structured process data upstream to DCS controllers, SCADA servers, and HMI workstations with minimal latency and maximum signal fidelity.

In modern smart factory and power plant environments, the integrity of the analog signal chain is foundational to operational transparency. The DS200ADMAH1AAC fulfills this role by converting milliamp and voltage signals from thermocouples, RTDs, pressure transmitters, and flow sensors into digital values that the Mark VI controller can process, log, and relay across the plant network. Its tight integration with the GE Mark VI architecture ensures deterministic scan cycles, synchronized data timestamping, and seamless compatibility with GE’s proprietary IONet communication backbone — enabling real-time data visibility from the turbine skid to the control room.

Network Communication Table

Connected Automation Data Flow

The DS200ADMAH1AAC sits at the front end of the Mark VI signal acquisition chain. Field instruments — including Rosemount 3051 pressure transmitters, Yokogawa EJA series differential pressure sensors, and Pt100 RTD temperature probes mounted on turbine bearing housings — feed their 4–20 mA or millivolt signals directly into the DS200ADMAH1AAC terminal board. The board digitizes these signals and passes structured data across the Mark VI backplane to the GE DS200TCQAG1BHF TCQA processor board, which executes the turbine protection and sequencing logic.

From the TCQA processor, process values are transmitted over the plant’s GE IONet industrial Ethernet segment to the GE Mark VI UCSC controller, which aggregates data from multiple I/O boards — including the DS200DSPCH1ADA digital signal processor board and the DS200SDCCG1AFB speed and dynamics control card — before forwarding consolidated real-time data to the SCADA layer. At the SCADA level, platforms such as GE iFIX, Wonderware System Platform, or Ignition SCADA receive OPC-DA or OPC-UA data streams from the Mark VI gateway, enabling operators to monitor turbine exhaust temperature, compressor inlet pressure, vibration amplitude, and shaft speed on unified HMI dashboards.

For remote diagnostic access, the Mark VI network connects through an industrial firewall and VPN concentrator to enterprise historian systems such as OSIsoft PI or GE Proficy Historian, where the DS200ADMAH1AAC’s analog channel data is archived at millisecond resolution. This data pipeline supports predictive maintenance algorithms that correlate bearing temperature trends — captured via the DS200ADMAH1AAC — with vibration data from the DS200VPRO vibration protection board, enabling early fault detection before equipment damage occurs.

In multi-unit power plants, the DS200ADMAH1AAC-equipped Mark VI controllers communicate with plant-level DCS systems — such as ABB System 800xA or Emerson DeltaV — through protocol gateways that translate GE IONet data into standard Modbus TCP or PROFIBUS DP frames. This cross-platform integration ensures that turbine analog data flows seamlessly into the plant-wide process control network, supporting coordinated load dispatch, emissions monitoring, and regulatory compliance reporting without data silos or manual transcription.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power plant and industrial automation environments is protocol fragmentation — where turbine control systems, compressor PLCs, auxiliary skid controllers, and plant DCS platforms each speak different communication languages, creating data islands that prevent unified operational visibility. The GE DS200ADMAH1AAC, as part of the Mark VI ecosystem, directly addresses this challenge by providing a standardized, high-integrity analog input interface that feeds into GE’s IONet communication backbone, which can be bridged to open protocols including Modbus TCP, DNP3, and OPC-UA through certified protocol gateways.

For plants undergoing digital transformation, the DS200ADMAH1AAC enables a phased integration approach: existing field wiring and terminal boards are retained, while the Mark VI controller’s network interface is upgraded to support OPC-UA server functionality, making turbine analog data available to modern SCADA, MES, and cloud-based analytics platforms without replacing the entire control system. This approach dramatically reduces integration cost and commissioning risk while delivering the real-time data transparency required for production line digitalization, remote monitoring, and regulatory reporting.

Remote diagnostics capability is another key value delivered by the DS200ADMAH1AAC data chain. When an analog channel drifts out of calibration range or a field transmitter fails, the Mark VI controller generates a diagnostic alarm that propagates through the IONet network to the SCADA alarm management system, triggering notifications to maintenance teams via email, SMS, or SCADA pop-up alerts. This closed-loop alarm feedback eliminates the need for manual field inspections during normal operation, reducing maintenance labor costs and improving mean time to repair (MTTR) for instrumentation faults.

System scalability is built into the Mark VI architecture. Additional DS200ADMAH1AAC boards can be added to expand analog input capacity as new field instruments are commissioned, without disrupting existing control logic or network configuration. This modular expansion capability supports phased plant upgrades and greenfield extensions, ensuring that the control system grows with the facility’s operational requirements.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE DS200ADMAH1AAC support for SCADA integration?
The DS200ADMAH1AAC operates natively within the GE Mark VI IONet architecture, which uses GE’s proprietary industrial Ethernet protocol for real-time I/O communication. For integration with third-party SCADA, DCS, or HMI systems, the Mark VI controller supports OPC-DA and OPC-UA server interfaces, and can be connected to Modbus TCP, DNP3, or PROFIBUS DP networks through certified protocol gateways. This makes the DS200ADMAH1AAC’s analog data accessible to virtually any modern industrial automation platform.

Q2: How is network stability and data integrity ensured for the DS200ADMAH1AAC in critical turbine control applications?
The Mark VI system employs a triple-redundant (TMR) control architecture option, where three independent DS200ADMAH1AAC boards can be configured in parallel to provide voted analog inputs — eliminating single-point failures in the signal acquisition chain. The IONet communication backbone uses dedicated industrial Ethernet switches with VLAN segmentation to isolate turbine control traffic from plant IT networks, ensuring deterministic communication latency and protecting against network congestion or cybersecurity threats.

Q3: Can the DS200ADMAH1AAC be integrated into an existing plant network without replacing the entire Mark VI system?
Yes. The DS200ADMAH1AAC is a modular I/O board that can be installed into an existing Mark VI rack without system-wide reconfiguration. Replacement boards are plug-compatible with the original terminal board wiring, minimizing installation time and commissioning risk. All units supplied by ZYPLC are pre-tested and verified against GE factory specifications before shipment, with a 12-month warranty covering hardware defects and communication failures.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
Every GE DS200ADMAH1AAC supplied by ZYPLC undergoes a comprehensive pre-shipment test protocol that includes analog channel accuracy verification across the full input range (4–20 mA, thermocouple, RTD), backplane communication integrity checks, and visual inspection for component condition and connector integrity. The 12-month warranty covers hardware failures under normal operating conditions, including analog channel drift, communication faults, and power supply failures. Technical support is available throughout the warranty period to assist with installation, configuration, and troubleshooting.
