GE DS200CTBAG1ADD Industrial Network Interface for Mark V Systems

GE DS200CTBAG1ADD: Industrial Data Link for Smart Factory Connectivity in Mark V Systems

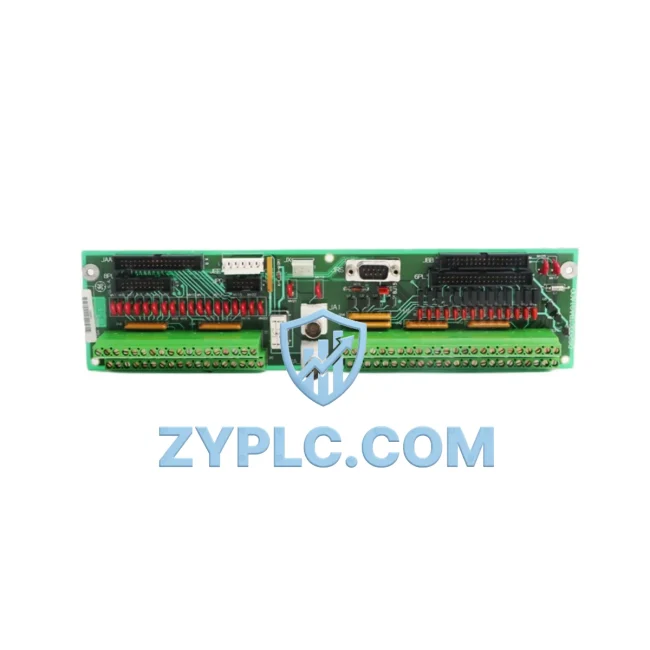

The GE DS200CTBAG1ADD is a high-performance Analog I/O Terminal Board engineered for the GE Mark V Turbine Control System. Designed to serve as a critical node in industrial data architectures, this board bridges the gap between field-level instrumentation and upper-layer control networks — enabling seamless signal acquisition, real-time data transmission, and system-wide visibility across complex industrial environments. Whether deployed in power generation, oil & gas, or heavy manufacturing, the DS200CTBAG1ADD delivers the connectivity backbone that modern smart factories demand.

Network Communication Table

Connected Automation Data Flow

In a fully integrated Mark V turbine control architecture, the DS200CTBAG1ADD sits at the heart of the analog signal chain. Field sensors — including thermocouples, RTDs, pressure transmitters, and vibration probes — feed live process data into the terminal board’s analog input channels. This raw signal data is conditioned and digitized before being passed upstream through the GE Mark V VCMI (VME Communications Module Interface), which manages inter-board communication across the Mark V’s redundant control racks.

From the VCMI, structured process data flows into the DS200SDCIG2AGB Speed/Dynamics Control Board and the DS200TCQAG1BHF Turbine Control Board, where real-time control logic executes based on the analog inputs provided by the DS200CTBAG1ADD. Simultaneously, the DS200DSPCH7BBA Digital Signal Processor handles high-speed computation tasks, ensuring that analog feedback loops — such as fuel valve positioning and exhaust temperature regulation — respond within milliseconds.

For operator visibility, the processed data is transmitted via the Mark V’s IONET communication bus to HMI workstations running GE Cimplicity SCADA or third-party SCADA platforms. Operators can monitor turbine exhaust temperatures, compressor inlet pressures, and generator output parameters in real time. When integrated with an industrial Ethernet gateway such as the DS200IIBDG1A IONET Interface Board, the DS200CTBAG1ADD’s data can be further routed to plant-level MES or ERP systems, enabling full production transparency.

On the output side, the DS200CTBAG1ADD drives analog control signals to actuators, servo valves, and variable frequency drives (VFDs) connected to auxiliary systems. In turbine applications, this includes fuel control valves and inlet guide vane actuators. The board’s multi-channel analog output capability ensures that the DS200CTBAG1ADD can simultaneously manage multiple control loops without signal interference or latency degradation — a critical requirement in high-availability power generation environments.

For remote diagnostics and predictive maintenance, the Mark V system’s DS200TCDAG1AAA Turbine Control Diagnostic Board continuously monitors the health of I/O boards including the DS200CTBAG1ADD, flagging anomalies such as signal drift, channel faults, or communication timeouts. Alarm data is propagated through the SCADA layer, enabling maintenance teams to respond proactively before unplanned downtime occurs. This closed-loop diagnostic architecture — from field sensor through terminal board, control processor, SCADA gateway, and remote monitoring console — exemplifies the industrial connectivity value that the DS200CTBAG1ADD delivers in every deployment.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating legacy turbine control systems face a common challenge: data silos. Analog signals from field instruments remain trapped at the device level, unable to reach SCADA dashboards, historian databases, or cloud analytics platforms. The GE DS200CTBAG1ADD directly addresses this problem by providing a reliable, multi-channel analog interface that integrates seamlessly with the Mark V’s communication infrastructure.

Protocol unification is achieved through the Mark V controller’s upstream communication modules, which translate analog I/O data into Modbus TCP, OPC-DA, or proprietary IONET frames — making the DS200CTBAG1ADD’s data accessible to any SCADA or DCS platform without custom middleware. This eliminates the protocol fragmentation that typically forces engineers to deploy separate protocol converters for each field device type.

Production line transparency is enhanced by the board’s ability to simultaneously monitor dozens of process variables — temperatures, pressures, flows, and positions — and deliver them to the control layer with sub-second latency. Plant managers gain a real-time view of turbine performance metrics, enabling data-driven decisions on load scheduling, maintenance intervals, and fuel optimization.

System scalability is built into the Mark V architecture. As production capacity expands, additional DS200CTBAG1ADD boards can be added to the control rack to accommodate new field instruments, additional control loops, or expanded monitoring points — without redesigning the communication backbone. This modular expandability protects capital investment and reduces commissioning time for future upgrades.

Remote monitoring and diagnostics are enabled through the SCADA integration layer, allowing engineering teams to access live turbine data, review alarm histories, and perform remote fault isolation from any networked workstation — reducing the need for on-site intervention and minimizing mean time to repair (MTTR).

Industrial Connectivity FAQ

Q1: What communication protocols does the GE DS200CTBAG1ADD support?
The DS200CTBAG1ADD is a native analog I/O terminal board within the GE Mark V system. It interfaces with the Mark V’s IONET communication bus, and through upstream gateway modules, data can be exposed via Modbus RTU, Modbus TCP, or OPC-DA to external SCADA and DCS platforms. No additional protocol converters are required within the Mark V architecture.

Q2: Is the DS200CTBAG1ADD compatible with third-party SCADA and HMI systems?
Yes. When integrated with the GE Mark V controller and an appropriate communication interface board (such as the DS200IIBDG1A), the DS200CTBAG1ADD’s analog data can be accessed by any SCADA or HMI platform that supports Modbus TCP or OPC-DA — including Wonderware, Ignition, Siemens WinCC, and GE Cimplicity.

Q3: How is network stability and signal integrity ensured during continuous operation?
The DS200CTBAG1ADD is designed for 24/7 industrial operation with built-in signal conditioning and noise filtering on all analog channels. The Mark V system’s redundant communication architecture ensures that a single board fault does not interrupt overall system communication. Each unit undergoes functional testing prior to shipment to verify channel accuracy and communication integrity.

Q4: What warranty and support terms apply to the DS200CTBAG1ADD?
All DS200CTBAG1ADD units supplied by ZYPLC carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Units are tested before shipment, and global logistics support is available to minimize lead times. For technical inquiries, replacement sourcing, or volume orders, contact our team directly.
