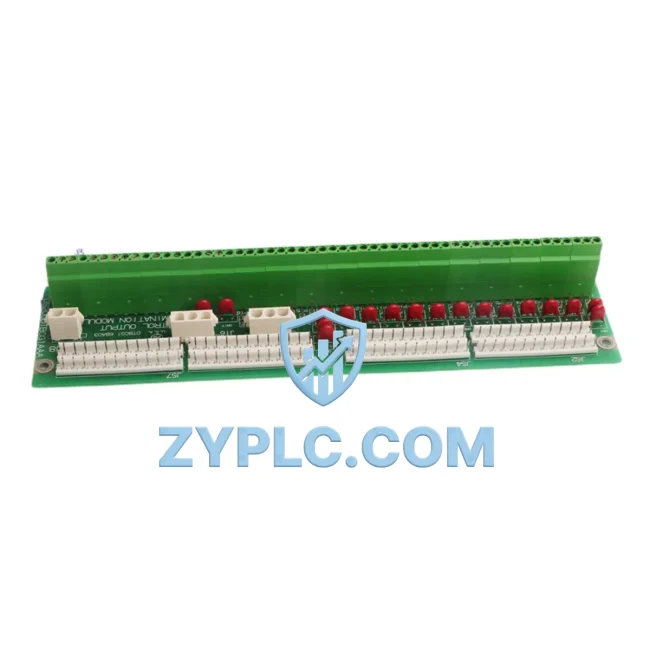

GE DS200DTBAG1AAA Industrial Network Interface for Mark V Systems

GE DS200DTBAG1AAA Industrial Network Interface for Mark V Systems: Bridging Field Devices to Smart Factory Data Links

The GE DS200DTBAG1AAA is a high-reliability Digital Input Terminal Board engineered for the GE Mark V Turbine Control System — one of the most widely deployed distributed control platforms in power generation, oil & gas, and heavy industrial environments. As a critical node in the industrial data chain, the DS200DTBAG1AAA captures discrete field signals from sensors, limit switches, proximity detectors, and protective relay contacts, converting them into structured digital data that flows upstream through the Mark V controller architecture to SCADA, HMI, and enterprise monitoring systems.

In modern smart factory and power plant environments, the integrity of the digital input layer determines the quality of every decision made at the control and supervisory level. The DS200DTBAG1AAA ensures that field-level signal acquisition is accurate, noise-immune, and fully compatible with the Mark V’s internal communication bus — enabling real-time data visibility from the turbine floor to the control room.

Network Communication Table

Connected Automation Data Flow

The DS200DTBAG1AAA sits at the foundation of the Mark V control architecture’s signal acquisition layer. Field devices — including vibration sensors, thermocouple transmitters, flame detectors, speed pickups, and emergency shutdown (ESD) relay contacts — wire directly to the terminal board’s screw terminals. From there, the board interfaces with the GE DS200DIDAG1A Digital Input Driver Board, which conditions and routes the signals into the Mark V’s core processor modules, such as the GE DS200TCQAG1B Quad Core Processor Board.

Within the Mark V rack, the processor communicates with I/O expander boards including the GE DS200IOCAG1A I/O Controller Board, aggregating data from multiple terminal boards across the turbine’s protective and control circuits. This consolidated data stream is then transmitted via the Mark V’s proprietary communication bus to the GE Mark V UCSC Operator Interface Panel — the local HMI — where operators monitor turbine speed, exhaust temperature, vibration levels, and trip status in real time.

For facilities integrating the Mark V into a plant-wide SCADA network, a GE DS200TCRAG1A Communication Gateway Board or a third-party Modbus TCP/RTU gateway bridges the Mark V’s internal bus to Ethernet-based supervisory systems such as GE iFIX, Wonderware InTouch, or Ignition SCADA. This enables the DS200DTBAG1AAA’s captured field signals to appear as live data tags on the SCADA historian, supporting trend analysis, alarm management, and remote diagnostics from the control room or cloud-based monitoring platforms.

In multi-unit power plants, the DS200DTBAG1AAA-equipped Mark V controllers on individual gas turbine units connect to a plant DCS backbone — often via GE DS200SDCIG2A Serial Communication Interface Boards — allowing centralized operators to monitor all units simultaneously. Remote I/O extensions using GE DS200EXPAG1A Expansion I/O Boards further extend the digital input network to auxiliary systems such as fuel gas skids, inlet air filtration units, and cooling water circuits, all feeding data back through the same terminal board architecture.

Variable frequency drives (VFDs) controlling auxiliary motors — cooling fans, lube oil pumps, fuel forwarding pumps — report their run/fault status back to the Mark V via discrete digital inputs wired through DS200DTBAG1AAA-type terminal boards, ensuring the turbine control system has full visibility of auxiliary equipment health before and during startup sequences.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging turbine control installations is data isolation — field signals trapped at the terminal board level, invisible to plant-wide monitoring systems. The DS200DTBAG1AAA directly addresses this by providing a reliable, standards-compliant wiring interface that ensures every discrete field signal is captured, conditioned, and made available to the Mark V controller without signal loss or protocol mismatch.

Protocol Unification: Many industrial sites operate mixed-generation control systems where older relay logic panels coexist with modern PLC and DCS platforms. The DS200DTBAG1AAA’s compatibility with the Mark V’s internal bus — and its ability to interface with Modbus RTU gateways — allows legacy turbine control signals to be unified into a single data stream accessible by modern SCADA and MES systems, eliminating the need for manual data transcription or isolated local displays.

Production Line Transparency: By ensuring that every digital input — from turbine trip signals to auxiliary equipment status — is reliably captured and transmitted upstream, the DS200DTBAG1AAA enables plant managers to achieve full production line transparency. Real-time dashboards in SCADA systems can display turbine health KPIs, alarm histories, and predictive maintenance indicators derived from the digital input data flowing through this terminal board.

Remote Monitoring and Diagnostics: With the DS200DTBAG1AAA maintaining signal integrity at the field level, remote diagnostic sessions become reliable. Maintenance engineers can interrogate the Mark V controller remotely via the SCADA gateway to verify input signal states, identify open-circuit faults, and diagnose spurious trip events — without requiring physical access to the turbine control cabinet. This capability is especially valuable for unmanned or remotely operated compressor stations and offshore platforms.

System Expansion: As plant capacity grows, additional DS200DTBAG1AAA boards can be added to the Mark V I/O rack to accommodate new field devices — additional protective relays, new sensor points, or expanded ESD logic — without requiring a complete control system upgrade. This modular expandability protects the capital investment in the existing Mark V infrastructure while supporting phased smart factory upgrades.

All DS200DTBAG1AAA units supplied by ZYPLC are fully tested prior to shipment, with functional verification of all input channels under simulated field conditions. In-stock inventory ensures rapid dispatch to minimize turbine downtime, and every unit is backed by a 12-month warranty covering manufacturing defects and functional failures.

Industrial Connectivity FAQ

Q1: What communication protocols does the DS200DTBAG1AAA support, and can it integrate with modern SCADA systems?
The DS200DTBAG1AAA is a terminal board that interfaces with the GE Mark V’s internal I/O bus — it does not independently implement Modbus or Ethernet protocols. However, when used within a complete Mark V system equipped with a communication gateway board (such as the DS200TCRAG1A or a third-party Modbus RTU/TCP gateway), the digital input signals captured by the DS200DTBAG1AAA become accessible as data tags in SCADA platforms including GE iFIX, Wonderware, and Ignition, enabling full supervisory integration.

Q2: How does the DS200DTBAG1AAA ensure network stability and signal integrity in high-EMI turbine environments?
The board features optically isolated digital inputs designed to reject electrical noise common in turbine generator environments — including high-frequency switching transients from VFDs, ground loops from long cable runs, and electromagnetic interference from high-voltage switchgear. This isolation ensures that the Mark V controller receives clean, stable digital signals regardless of the electrical environment, maintaining network stability and preventing spurious trips or false alarms.

Q3: Is the DS200DTBAG1AAA compatible with GE Mark VI systems, and what are the system expansion options?
The DS200DTBAG1AAA is natively designed for the GE Mark V platform. Compatibility with Mark VI systems depends on the specific I/O rack configuration and may require adapter hardware. For Mark VI applications, GE offers dedicated IS200 series terminal boards. Within the Mark V platform, system expansion is straightforward — additional DS200DTBAG1AAA boards can be installed in available I/O rack slots to increase the number of monitored digital input points, supporting phased plant expansion without disrupting existing control logic.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the DS200DTBAG1AAA?
Every DS200DTBAG1AAA unit supplied by ZYPLC undergoes functional testing prior to shipment, including verification of all digital input channels, isolation integrity checks, and visual inspection for component condition. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available to minimize turbine downtime, and our technical team provides pre-sales compatibility consultation and post-sales support throughout the warranty period.
