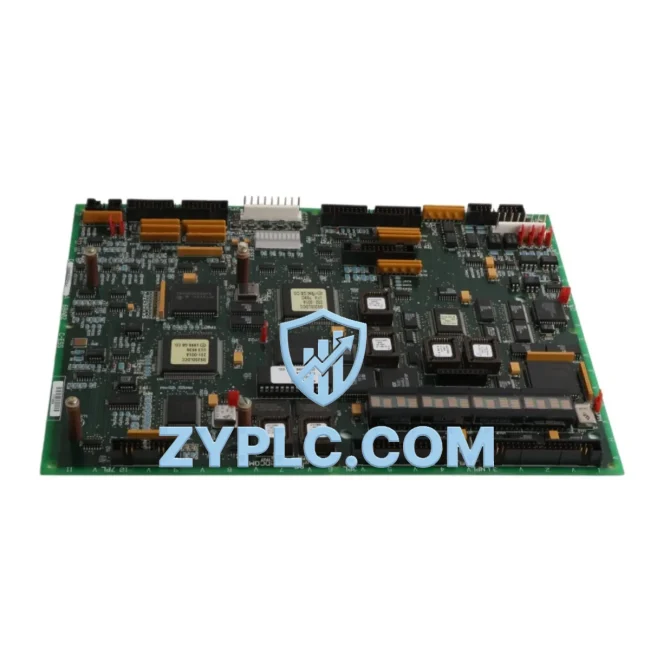

GE DS200LDCCH1AKA Industrial Network Interface for Mark V Systems

GE DS200LDCCH1AKA: Industrial Data Link for Mark V Turbine Control Networks

The GE DS200LDCCH1AKA is a high-performance LAN Communication Card engineered for the GE Mark V turbine control platform. Designed to serve as the critical network interface between field-level control hardware and upper-level supervisory systems, this card enables seamless, real-time data exchange across complex industrial automation architectures. Whether deployed in gas turbine power generation, combined-cycle plants, or heavy industrial process environments, the DS200LDCCH1AKA delivers the communication backbone that modern smart factory operations demand.

In today’s industrial landscape, data isolation between field devices and control systems is one of the most persistent challenges facing plant engineers. The DS200LDCCH1AKA addresses this directly by providing a stable, high-integrity LAN interface that bridges the Mark V controller with SCADA platforms, HMI workstations, and distributed control networks. Its architecture supports continuous signal acquisition from turbine sensors, thermocouple inputs, vibration monitors, and speed pickups, transmitting structured data packets upstream to historian servers and operator consoles without latency or packet loss.

Network Communication Table

Connected Automation Data Flow

The DS200LDCCH1AKA sits at the heart of the Mark V communication architecture, acting as the gateway between the turbine’s real-time control loop and the plant’s broader data infrastructure. Within the Mark V panel, the card interfaces directly with the GE DS200TCQAG1BHF Quad Analog I/O Board, collecting analog process values — temperatures, pressures, and flow rates — and formatting them for network transmission. Simultaneously, it communicates with the GE DS200SDCCG1AFB Speed Detector Card, ensuring that shaft speed and overspeed trip signals are accurately relayed to the supervisory layer without delay.

Upstream, the DS200LDCCH1AKA connects to GE Cimplicity HMI workstations, where operators monitor turbine health in real time. The card’s LAN interface feeds live process data into the Cimplicity historian, enabling trend analysis, alarm management, and performance reporting. For plants running GE iFIX SCADA or third-party SCADA platforms, the DS200LDCCH1AKA provides the network entry point through which OPC-DA or OPC-UA data servers retrieve Mark V process variables.

In multi-unit power plants, the DS200LDCCH1AKA enables peer-to-peer communication between multiple Mark V panels via the plant LAN, coordinating load sharing and unit sequencing logic. It also interfaces with GE DS200TCRAG1AAA Relay Output Boards to ensure that network-triggered relay commands — such as fuel valve actuation or breaker trip signals — are executed with deterministic timing. For remote I/O expansion, the card supports communication with GE DS200IOCAG1B I/O Controller Boards, extending the Mark V’s data acquisition reach to remote field junction boxes.

At the edge of the network, the DS200LDCCH1AKA can feed data to industrial edge gateways compatible with MQTT or REST API protocols, enabling cloud-based analytics and predictive maintenance platforms to consume Mark V turbine data. This positions the card as a foundational component in digital twin implementations and IIoT-enabled power plant modernization projects. Integration with GE Mark VIe migration architectures is also supported in hybrid plant configurations, where legacy Mark V panels coexist with next-generation control hardware.

For drive and motor control integration, the DS200LDCCH1AKA communicates with GE Drive systems and variable frequency drives (VFDs) connected to auxiliary turbine equipment — cooling fans, lube oil pumps, and fuel gas compressors — ensuring that drive status and fault data are visible at the SCADA level. The card’s network stability under high electromagnetic interference (EMI) conditions, typical of turbine generator halls, makes it a reliable choice for continuous 24/7 industrial operation.

Solving Data Isolation in Industrial Sites

One of the most critical challenges in turbine control environments is the fragmentation of data across incompatible systems. Legacy Mark V installations often operate as isolated control islands, with process data locked inside the controller and inaccessible to plant-wide SCADA, MES, or ERP systems. The DS200LDCCH1AKA directly resolves this by providing a standards-based LAN interface that integrates the Mark V into the plant’s Ethernet backbone.

Protocol incompatibility between the Mark V’s proprietary communication bus and modern Ethernet-based supervisory systems is a common barrier to plant digitalization. The DS200LDCCH1AKA bridges this gap, enabling OPC server connectivity and allowing SCADA platforms to poll Mark V process variables at configurable scan rates. This eliminates the need for costly protocol converters or custom middleware, reducing integration complexity and maintenance overhead.

Remote monitoring and diagnostics are significantly enhanced with the DS200LDCCH1AKA in place. Plant engineers can access real-time turbine data from control rooms located hundreds of meters from the turbine hall, or even from remote operations centers via secure VPN connections. Alarm events, trip records, and performance trends are transmitted instantly to the SCADA historian, enabling rapid fault diagnosis and reducing mean time to repair (MTTR).

Production line transparency is another key benefit. With the DS200LDCCH1AKA providing continuous data flow from the Mark V to upper-level systems, plant managers gain full visibility into turbine operating parameters — exhaust temperatures, compressor discharge pressures, fuel consumption rates, and power output — in real time. This data transparency supports predictive maintenance scheduling, fuel efficiency optimization, and regulatory compliance reporting.

System scalability is preserved through the card’s standard LAN interface. As plant networks expand — adding new turbine units, remote I/O nodes, or additional HMI stations — the DS200LDCCH1AKA’s network architecture accommodates growth without requiring hardware redesign. All units supplied by ZYPLC undergo full functional testing prior to shipment, with each DS200LDCCH1AKA verified for communication integrity, network handshake performance, and signal transmission accuracy.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE DS200LDCCH1AKA support?
The DS200LDCCH1AKA is a LAN Communication Card designed for the GE Mark V turbine control platform. It supports Ethernet-based LAN communication, enabling integration with OPC-DA/OPC-UA servers, SCADA platforms such as GE Cimplicity and iFIX, and HMI workstations. For protocol conversion to Modbus TCP, PROFINET, or other industrial Ethernet standards, a compatible protocol gateway should be used in conjunction with this card.

Q2: Is the DS200LDCCH1AKA compatible with GE Mark VIe or other GE control platforms?
The DS200LDCCH1AKA is specifically designed for the GE Mark V turbine control system. In hybrid plant configurations where Mark V and Mark VIe panels coexist, the card can operate within the Mark V segment of the network. Direct plug-in compatibility with Mark VIe or Mark VI hardware is not guaranteed without engineering review. ZYPLC’s technical team can assist with compatibility assessment for your specific plant configuration.

Q3: How is network stability ensured in high-EMI turbine environments?
The DS200LDCCH1AKA is engineered to operate reliably in the high electromagnetic interference environments typical of turbine generator halls. The card’s hardware design incorporates EMI shielding and signal conditioning appropriate for continuous industrial operation. ZYPLC performs full communication integrity testing on every unit prior to shipment, verifying network handshake stability, packet transmission accuracy, and error recovery performance under simulated load conditions.

Q4: What warranty and support does ZYPLC provide for the DS200LDCCH1AKA?
Every GE DS200LDCCH1AKA supplied by ZYPLC is covered by a 12-month warranty from the date of shipment. All units are tested and verified before dispatch. In the event of a fault within the warranty period, ZYPLC provides replacement or repair support. For technical inquiries, pre-sales compatibility questions, or urgent spare parts requirements, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
