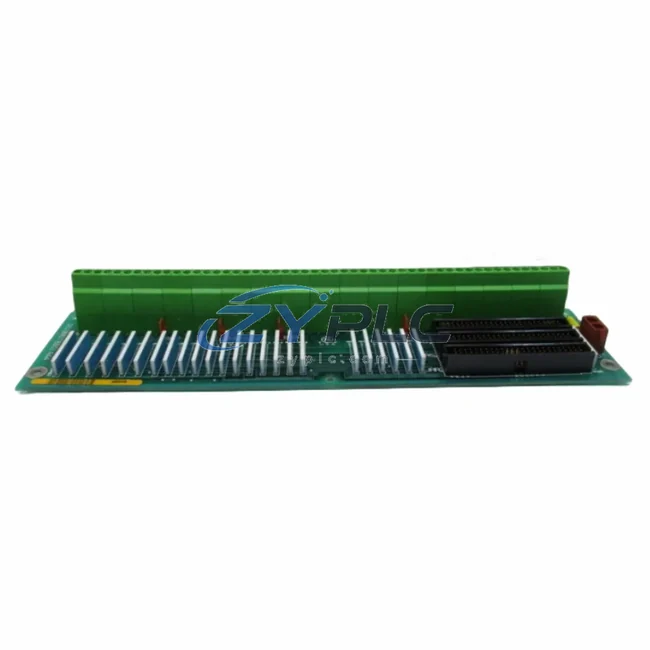

GE DS200TBCBG1AAA Terminal Board Mark V

GE DS200TBCBG1AAA Terminal Board for Mark V Automation

The GE DS200TBCBG1AAA is a precision-engineered terminal board module designed for the GE Mark V Speedtronic turbine control system. In modern industrial facilities where energy efficiency and production continuity are non-negotiable, this module serves as a critical interface layer between field instrumentation and the core control logic — enabling accurate signal routing, reduced electrical noise, and tighter closed-loop control over rotating machinery. By ensuring clean, reliable I/O connectivity, the DS200TBCBG1AAA directly contributes to lower unplanned downtime, improved drive utilization, and more predictable production line throughput.

Product Specification Table

System Compatibility and Application

The DS200TBCBG1AAA does not operate in isolation — it is the connective tissue of a broader industrial control architecture. Within a typical Mark V-based turbine control panel, this terminal board interfaces directly with the DS200TCQAG1BHF (Turbine Control Quad Analog Board) to condition and route analog feedback signals from temperature and pressure sensors. These signals feed into the DS200SDCCG3A (Speed and Dynamics Control Card), which governs turbine acceleration and deceleration profiles — a key lever for reducing fuel consumption during startup and load transitions.

On the drive side, the terminal board’s clean signal termination supports accurate speed reference delivery to connected variable frequency drives (VFDs), such as those in the GE Drive series, ensuring that motor loads track demand curves without overshoot or hunting — both of which waste energy. The DS200IOCAG1A (I/O Controller Board) works alongside the DS200TBCBG1AAA to manage discrete field signals, enabling the control system to respond rapidly to process deviations and avoid prolonged high-load operating states.

For power monitoring integration, the terminal board’s analog channels can be configured to accept 4–20 mA signals from power transducers and energy meters, feeding real-time consumption data into the DS200DSPCH1ADA (Digital Signal Processor Card). This closes the energy feedback loop — allowing the Mark V controller to make dynamic adjustments to fuel valve positioning, inlet guide vane angles, and compressor bleed valves based on live power draw data.

Communication integrity is maintained through the DS200SLCCG3AFG (Serial Link Communication Card), which ensures that energy data and control commands traverse the system’s internal bus without latency or packet loss. On the human-machine interface side, operators monitoring turbine efficiency via a GE Cimplicity HMI workstation rely on the accuracy of signals routed through the DS200TBCBG1AAA to make informed load-shedding and dispatch decisions. The DS200TCRAG1AAA (Turbine Control Relay Board) further extends the terminal board’s role by translating digital control outputs into relay-driven actuator commands — governing inlet valves, bypass dampers, and auxiliary motor starters that collectively determine the plant’s energy footprint.

Maintenance and Replacement Notes

In gas turbine power plants and combined-cycle facilities, unplanned downtime caused by faulty I/O terminations is one of the most costly sources of energy inefficiency. When a terminal board degrades — through connector oxidation, thermal cycling fatigue, or vibration-induced loosening — the resulting signal noise forces the control system into conservative operating modes, reducing turbine output and increasing specific fuel consumption. Replacing a worn DS200TBCBG1AAA with a tested, verified unit restores signal fidelity and allows the Mark V controller to operate at its designed efficiency envelope.

Beyond fault recovery, a properly functioning DS200TBCBG1AAA enables tighter production line cadence. In facilities where multiple turbine-generator sets operate in parallel, synchronized load sharing depends on accurate speed and power feedback — all of which passes through terminal board connections. Improved signal accuracy translates directly into reduced governor hunting, smoother load transitions, and lower auxiliary power consumption from balance-of-plant equipment such as cooling fans, lube oil pumps, and fuel gas compressors.

Predictive maintenance programs also benefit from a reliable terminal board. When vibration sensors, thermocouple inputs, and pressure transmitters deliver clean, uninterrupted signals through the DS200TBCBG1AAA, condition monitoring algorithms can detect early-stage bearing wear, seal degradation, and combustion anomalies — enabling maintenance teams to schedule interventions during planned outages rather than responding to emergency trips. This shift from reactive to predictive maintenance reduces both unplanned downtime from degraded equipment and the carbon cost of unplanned restarts.

Every DS200TBCBG1AAA unit supplied by ZYPLC undergoes full functional testing prior to shipment, including continuity verification, insulation resistance checks, and signal path validation. Units are held in climate-controlled inventory and shipped with anti-static packaging to preserve connector integrity. With availability confirmed by RFQ availability and rapid dispatch, facilities can minimize the window between fault detection and restoration — keeping turbines on-line and energy output stable.

Product Sourcing FAQ

Q1: How does replacing the DS200TBCBG1AAA improve energy efficiency in a Mark V-controlled turbine?
A degraded terminal board introduces signal errors that cause the Mark V controller to apply conservative control margins — effectively derating the turbine below its optimal operating point. A new or refurbished DS200TBCBG1AAA restores full signal accuracy, allowing the controller to operate the turbine at its designed efficiency curve, reducing specific fuel consumption and improving output per unit of fuel burned.

Q2: Is the DS200TBCBG1AAA compatible with all Mark V Speedtronic panel configurations?
The DS200TBCBG1AAA is designed for the GE Mark V Speedtronic control system (DS200 series). Compatibility depends on the specific panel revision and I/O assignment. We recommend cross-referencing your panel’s wiring diagram and board slot assignment before ordering. Our technical team can assist with compatibility verification based on your panel serial number and configuration drawings.

Q3: What is the recommended replacement interval, and how do I know when the board needs to be changed?
There is no fixed replacement interval, but common indicators include intermittent I/O faults logged in the Mark V diagnostic system, unexplained control deviations, increased governor activity, or visible connector corrosion. If your condition monitoring system shows rising signal noise on analog channels routed through this board, proactive replacement is advisable before a fault-induced trip occurs.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
All DS200TBCBG1AAA units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes continuity testing, insulation resistance measurement, and functional signal path verification. Units that do not meet specification are quarantined and not dispatched. Warranty claims are supported by our technical team with replacement or repair at no additional cost within the warranty period.
