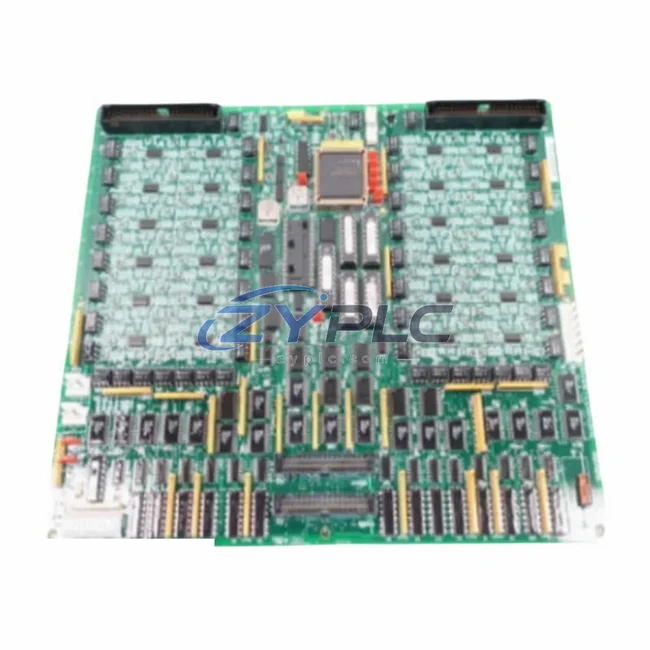

GE DS200TCDA-HBHE Turbine Control Board

GE DS200TCDA-HBHE Turbine Control Board: Replacement and Sourcing Information for Mark VI Automation

The GE DS200TCDA-HBHE is a high-performance turbine control board engineered for the GE Mark VI turbine control system — one of the most widely deployed distributed control platforms in power generation and heavy industrial environments. Designed to manage critical turbine sequencing, speed governing, and protection logic, this board plays a central role in reducing unplanned downtime risk, minimizing thermal losses, and ensuring that rotating machinery operates within its optimal efficiency band at all times.

In modern industrial facilities — from combined-cycle power plants to petrochemical processing units — unplanned downtime is rarely caused by a single component failure. More often, it results from degraded control response, miscalibrated feedback loops, or aging I/O boards that introduce latency into the control cycle. The DS200TCDA-HBHE addresses these root causes directly by maintaining precise, low-latency communication between the turbine’s sensor inputs and the Mark VI controller’s execution layer, enabling tighter closed-loop control over fuel flow, inlet guide vane positioning, and exhaust temperature management.

Product Specification Table

System Compatibility and Application

The DS200TCDA-HBHE does not operate in isolation. Its efficiency contribution is amplified when integrated within a well-structured Mark VI control architecture. In a typical turbine automation topology, this board interfaces directly with the GE DS200TCQC-HBHE turbine control quad core board, which handles the primary sequencing logic and distributes execution commands across the control rack. Upstream, the GE IS200TSVOH1A servo output board translates digital control signals into precise analog actuator commands — governing inlet guide vanes and fuel control valves with millisecond-level response times that are essential for heat rate optimization.

On the I/O side, the GE DS200IOCAG1A I/O controller board aggregates field sensor data — including thermocouple inputs, pressure transmitter signals, and vibration probe outputs — and feeds this data into the control loop managed by the DS200TCDA-HBHE. When sensor data is clean and latency is low, the control board can make faster, more accurate corrections to turbine operating parameters, directly reducing the fuel-to-output ratio and improving overall plant heat rate.

For facilities running GE’s Mark VIe platform alongside legacy Mark VI hardware, the GE IS200ECTBG1A Ethernet communication board provides the protocol bridge that allows both generations of control hardware to share real-time process data. This interoperability is critical for condition monitoring dashboards and for feeding data into plant-level SCADA systems that track operating-hour consumption per production unit.

Power quality at the rack level is maintained by the GE DS200PCCAG1A power supply board, which conditions incoming DC bus voltage and protects downstream control boards — including the DS200TCDA-HBHE — from voltage transients that could cause spurious trips or degraded control accuracy. Unplanned trips are among the most energy-intensive events in turbine operation, as restart sequences consume significant fuel and thermal energy before the unit returns to steady-state generation.

For human-machine interface and real-time energy visualization, the GE Mark VI HMI workstation running Cimplicity SCADA software provides operators with live trending of heat rate, exhaust temperature spread, and compressor efficiency — all derived from the control data processed through boards like the DS200TCDA-HBHE. Operators can identify efficiency drift early and schedule corrective maintenance before it escalates into an unplanned outage.

Maintenance and Replacement Notes

In a gas turbine power plant operating at partial load — a common scenario during off-peak grid demand periods — the DS200TCDA-HBHE enables the Mark VI system to execute precise load-following algorithms that match fuel input to actual grid demand in real time. Without accurate turbine control board function, the governor response slows, fuel trim corrections become coarse, and the turbine operates with a higher-than-necessary heat rate. Over a 12-month operating cycle, even a 0.5% improvement in heat rate translates to measurable reductions in fuel cost and CO₂ output per megawatt-hour generated.

In compressor train applications within LNG or petrochemical facilities, the DS200TCDA-HBHE supports anti-surge control logic that prevents compressor surge events — one of the most energy-wasteful and mechanically damaging failure modes in rotating equipment. By maintaining the compressor operating point within the stable region of its performance map, the control board reduces recycle valve losses and extends the interval between major maintenance overhauls, lowering both operating load and lifecycle cost.

Predictive maintenance integration is another key efficiency lever. When the DS200TCDA-HBHE is functioning correctly, vibration and temperature data from field instruments is processed with high fidelity, allowing condition monitoring systems to detect bearing wear, blade fouling, or seal degradation weeks before these issues cause a forced outage. Planned maintenance windows are shorter, less disruptive, and far less energy-intensive than emergency shutdowns and cold restarts.

Every unit of the DS200TCDA-HBHE supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O channel verification, communication bus integrity checks, and power rail validation. This pre-shipment testing protocol ensures that replacement boards restore control system performance immediately upon installation — minimizing the commissioning time that would otherwise extend the plant’s reduced-efficiency operating window. All units are covered by a warranty terms confirmed during quotation and are available from RFQ-confirmed sourcing for rapid global dispatch.

Product Sourcing FAQ

Q1: How does the DS200TCDA-HBHE contribute to measurable operational stability in turbine operation?
By maintaining precise closed-loop control over fuel flow, speed governing, and temperature management, the DS200TCDA-HBHE reduces the fuel-to-output ratio of the turbine. Faster, more accurate control corrections mean the turbine spends less time operating outside its optimal efficiency band, directly lowering heat rate and fuel consumption per megawatt-hour generated.

Q2: Is the DS200TCDA-HBHE compatible with both GE Mark VI and Mark VIe control systems?
The DS200TCDA-HBHE is designed for the GE Mark VI platform. For Mark VIe applications, compatibility depends on the specific rack configuration and firmware version. ZYPLC’s technical team can verify cross-compatibility based on your system’s panel drawing and software revision before shipment.

Q3: What is the recommended replacement procedure, and how quickly can the board be sourced?
Replacement involves powering down the affected control rack, removing the failed board, installing the DS200TCDA-HBHE, and performing a system I/O check before returning the turbine to service. ZYPLC maintains RFQ-confirmed sourcing of this board and can arrange expedited shipment to minimize plant downtime. Lead time for standard orders is typically 1–3 business days from order confirmation.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. Prior to shipment, each DS200TCDA-HBHE undergoes functional testing including I/O channel verification, communication bus integrity validation, and power rail checks. A test report is available upon request. Warranty claims are handled directly through ZYPLC’s after-sales support team.
