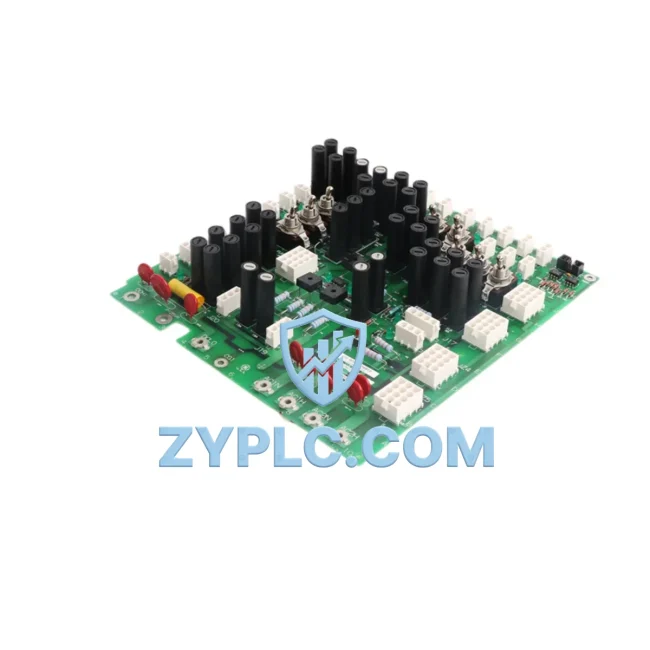

GE DS200TCDAG1ADA Industrial Network Interface for Mark VI Systems

GE DS200TCDAG1ADA Industrial Network Interface for Mark VI Systems: Bridging the Industrial Data Link in Smart Factory Environments

The GE DS200TCDAG1ADA is a high-reliability Digital I/O Board engineered for the GE Mark VI turbine control platform, serving as a critical node in the industrial data chain that connects field-level devices to supervisory control and data acquisition systems. In modern smart factory and power generation environments, seamless communication between field instruments, PLC controllers, remote I/O modules, HMI panels, SCADA gateways, variable frequency drives, and edge computing nodes is not optional — it is the backbone of operational continuity. The DS200TCDAG1ADA fulfills this role with precision, delivering deterministic digital signal processing, robust protocol handling, and stable network integration across the full Mark VI control architecture.

Designed for turbine control, compressor management, and critical process automation, the DS200TCDAG1ADA interfaces directly with the Mark VI controller backplane, enabling real-time acquisition of discrete digital signals from proximity sensors, limit switches, solenoid valve feedback, and emergency shutdown (ESD) circuits. Its signal conditioning capability ensures that raw field-level inputs are accurately digitized and transmitted upstream to the Mark VI controller — and from there, via the GE IS200TREGH1B Ethernet gateway module, to plant-wide SCADA and DCS platforms such as GE iFIX, Wonderware System Platform, or OSIsoft PI historian.

Network Communication Table

Connected Automation Data Flow

Understanding the DS200TCDAG1ADA’s role requires mapping the full data flow from field device to enterprise system. At the lowest layer, discrete sensors — including GE Bently Nevada 3500 series vibration transmitters, thermocouple inputs, and proximity probes — generate raw analog and digital signals that are routed to the Mark VI I/O terminal boards. The DS200TCDAG1ADA captures these digital channel states and passes them through the Mark VI backplane to the main controller board, such as the GE DS200TCQCG1BHF or DS200TCQAG1BHF controller cards, which execute the turbine protection and sequencing logic in real time.

From the controller layer, processed data is forwarded via the GE IS200TREGH1B Ethernet communication module to the plant network, where it becomes available to HMI workstations running GE Cimplicity or iFIX SCADA software. Operators can monitor turbine speed, exhaust temperature, valve positions, and trip status in real time, with alarm annunciation latency measured in milliseconds. For remote diagnostic access, the data path extends further through industrial-grade managed Ethernet switches — such as the Hirschmann RS20 or Moxa EDS-308 series — to the enterprise WAN, enabling remote engineers to perform live diagnostics without physical site access.

In parallel, the DS200TCDAG1ADA’s digital output channels drive actuator commands — opening and closing solenoid valves, activating relay outputs for fuel control, and triggering ESD sequences. These outputs are coordinated with the GE DS200TCEAG1BHF analog output board and the DS200TCPSG1A power supply board, forming a tightly integrated I/O subsystem that ensures deterministic response times critical to turbine protection. For plants integrating the Mark VI into a broader DCS environment, protocol conversion gateways such as the Moxa MGate MB3480 or ProSoft Technology MVI56-MCM Modbus Communication Module bridge the Mark VI’s proprietary bus to standard industrial protocols including Modbus TCP/IP and PROFIBUS DP, enabling seamless data exchange with third-party PLCs, remote I/O racks, and SCADA historians.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy power generation and process automation facilities is data isolation — the condition where critical operational data is trapped within proprietary control systems, inaccessible to plant-wide monitoring, analytics, or enterprise ERP platforms. The GE DS200TCDAG1ADA directly addresses this challenge by serving as the digital signal gateway within the Mark VI architecture.

When turbine control systems operate in isolation, operators lose visibility into real-time equipment health, maintenance teams cannot perform predictive diagnostics, and production managers lack the data needed for informed decision-making. By ensuring that every discrete digital signal — from valve limit switches to vibration trip relays — is accurately captured and transmitted through the Mark VI data highway, the DS200TCDAG1ADA eliminates blind spots in the control network.

For facilities undertaking digital transformation initiatives, the DS200TCDAG1ADA provides the foundational I/O layer that makes production line transparency possible. Combined with edge gateway solutions such as the Advantech WISE-5000 series or Moxa UC-8100 industrial computing platform, the digital signals acquired by the DS200TCDAG1ADA can be published to cloud-based IoT platforms, enabling AI-driven predictive maintenance, OEE (Overall Equipment Effectiveness) analytics, and remote asset management across multi-site operations.

System expansion is equally straightforward. The Mark VI’s modular I/O architecture allows additional DS200TCDAG1ADA boards to be installed as process requirements grow, without disrupting existing control logic or network topology. This scalability, combined with the board’s proven reliability in harsh industrial environments — including high-vibration, high-temperature, and electrically noisy plant floors — makes it a preferred choice for both greenfield installations and brownfield upgrades.

Every DS200TCDAG1ADA unit supplied by ZYPLC undergoes pre-shipment functional testing, including digital channel verification, backplane communication checks, and power integrity validation. Units are shipped with full documentation and are covered by a 12-month warranty, with in-stock availability ensuring rapid deployment to minimize plant downtime.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE DS200TCDAG1ADA support for SCADA integration?
The DS200TCDAG1ADA communicates natively over the GE Mark VI internal backplane bus. For SCADA integration, the Mark VI system uses Ethernet gateway modules such as the IS200TREGH1B to publish data via Modbus TCP/IP or OPC-DA/UA to SCADA platforms including GE iFIX, Wonderware, and OSIsoft PI. Protocol conversion to PROFIBUS DP or DeviceNet is achievable via third-party gateways.

Q2: How does the DS200TCDAG1ADA ensure network stability and low communication latency in turbine control applications?
The board is designed for deterministic real-time operation within the Mark VI control cycle, typically executing I/O scans at millisecond intervals synchronized with the controller’s processing cycle. Its backplane interface eliminates network-layer latency associated with Ethernet-based I/O, ensuring that digital signal states are reflected in the controller logic with minimal delay — critical for turbine protection and ESD applications.

Q3: Can the DS200TCDAG1ADA be integrated into a system alongside third-party PLCs or remote I/O modules?
Yes. While the DS200TCDAG1ADA operates within the GE Mark VI architecture, the Mark VI system can be integrated with third-party PLCs (such as Allen-Bradley ControlLogix or Siemens S7-300) and remote I/O platforms via protocol gateways. Modbus RTU/TCP and PROFIBUS DP are the most common integration paths, enabling the Mark VI to participate in hybrid control architectures common in oil & gas and power generation facilities.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?
All DS200TCDAG1ADA units supplied by ZYPLC are covered by a 12-month warranty against manufacturing defects and functional failures. Pre-shipment testing includes digital I/O channel verification, backplane communication integrity checks, and power supply validation. Units are tested under operational conditions to confirm full functionality before dispatch, and test reports are available upon request.
