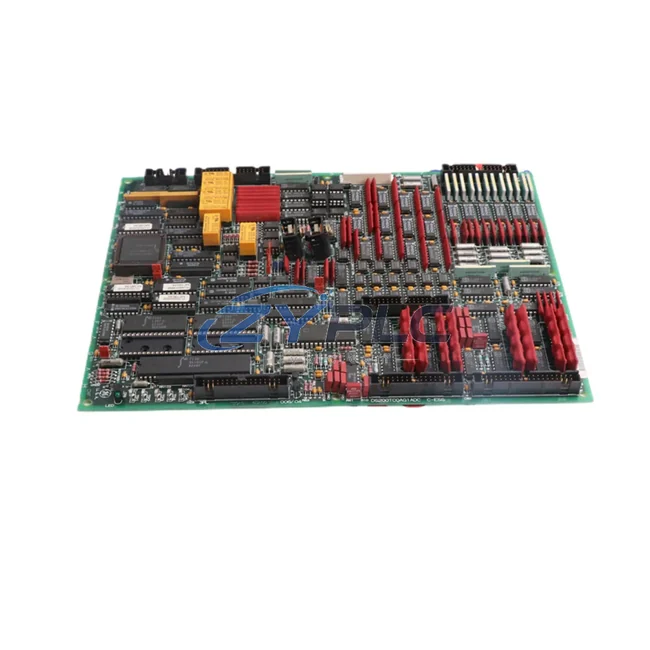

GE DS200TCEBG1BAA EOS Board for Mark V

GE DS200TCEBG1BAA EOS Board for Mark V: Compatibility and Replacement Notes

The GE DS200TCEBG1BAA is a dedicated EOS (Emergency Overspeed) control board engineered for integration within the GE Speedtronic Mark V turbine control platform. Rather than functioning as a standalone component, this board occupies a critical position within a layered automation architecture — serving as the primary overspeed detection and protection interface between the turbine’s speed sensing layer, the central processing layer, and the final trip execution layer. Understanding its role within the full control system hierarchy is essential for engineers responsible for turbine protection design, system commissioning, and long-term maintenance planning.

In a complete Mark V turbine control cabinet, the DS200TCEBG1BAA operates in close coordination with the DS200TCQCG1BEE (Turbine Control Quad Core board), the DS200SDCCG1AFB (System Dynamic Control Card), and the DS200TCDAG1AAA (Turbine Control DA board). These boards share a common VME-style backplane, enabling high-speed inter-board communication and synchronized trip logic execution. The EOS board receives speed pulse signals from magnetic pickup units (MPUs) and proximity probes, processes them through dedicated overspeed detection circuitry, and issues hardware-level trip commands that bypass software latency — a fundamental requirement for turbine protection systems operating under API 670 and IEC 61511 standards.

At the I/O layer, the DS200TCEBG1BAA interfaces with field-mounted speed sensors and connects to the DS200TCEAG1BDD terminal board, which provides the physical I/O termination points for field wiring. This terminal board arrangement ensures that the EOS board can be replaced or maintained without disturbing field wiring — a significant advantage in high-availability plant environments where turbine downtime carries substantial operational cost. The terminal board also supports the connection of redundant speed channels, enabling the triple-redundant (TMR) voting architecture that is characteristic of Mark V systems.

From a network and communication perspective, the Mark V platform in which the DS200TCEBG1BAA operates typically includes a DS200SLCCG1AFB (Serial Link Communication Card) or equivalent gateway module that bridges the turbine control system to plant-level DCS or SCADA networks via Modbus RTU or proprietary GE protocols. While the EOS board itself does not participate directly in network communication, its trip status and diagnostic data are relayed through the Mark V’s internal communication bus to the operator interface, typically a Mark V HMI workstation running GE’s proprietary CIMPLICITY or Toolbox software environment.

Power supply integrity is equally critical to EOS board performance. The DS200TCEBG1BAA is powered through the Mark V cabinet’s regulated DC power distribution system, which typically includes redundant DS200PCCAG1A power supply modules providing +5 VDC, ±15 VDC, and +28 VDC rails. Any voltage deviation on these rails can affect the EOS board’s detection thresholds and trip response timing. Engineers commissioning or maintaining systems with the DS200TCEBG1BAA should verify power rail stability as part of the standard pre-commissioning checklist.

For relay output and final element actuation, the EOS board’s trip commands are routed through the Mark V’s relay output modules — such as the DS200RTBAG1AAA relay terminal board — which interface with the turbine’s fuel shutoff valves, inlet guide vane actuators, and generator breaker trip coils. This execution layer integration ensures that the overspeed protection chain from detection to actuation is fully hardware-implemented, with response times measured in milliseconds rather than scan cycles.

Product Specification Table

System Compatibility Notes

Deploying the DS200TCEBG1BAA within a Mark V architecture requires careful coordination across multiple board types and system layers. A typical Mark V panel integrating this EOS board will include the following coordinated components:

The DS200TCQCG1BEE Quad Core board serves as the central processing unit for turbine sequencing and control logic, while the DS200SDCCG1AFB handles dynamic control calculations including speed governing and load control. The DS200TCDAG1AAA provides additional analog and digital I/O expansion, supporting the full range of turbine instrumentation inputs. At the termination layer, the DS200TCEAG1BDD terminal board provides the physical interface for field wiring connected to the EOS board’s speed sensor inputs.

Power distribution is managed by redundant DS200PCCAG1A power supply modules, ensuring that the EOS board and its associated protection circuitry remain energized even during single power supply failures. The DS200SLCCG1AFB serial link card provides the communication bridge to plant networks, while the DS200RTBAG1AAA relay terminal board executes the final trip commands generated by the EOS board’s overspeed detection logic. Together, these components form a tightly integrated protection and control architecture in which the DS200TCEBG1BAA plays a non-negotiable safety role.

For system integrators sourcing replacement or spare boards, maintaining a matched set of Mark V boards — including the DS200TCEBG1BAA — from a single verified supplier ensures firmware compatibility, reduces commissioning risk, and supports a consistent warranty terms confirmed during quotation coverage across the entire spare parts inventory.

Industrial Application Notes

The DS200TCEBG1BAA finds application across a wide range of industries where gas turbines, steam turbines, or combined-cycle power generation equipment is controlled by the GE Speedtronic Mark V platform. In power generation facilities — including utility-scale gas turbine plants and industrial cogeneration systems — the EOS board is a mandatory component of the turbine protection system, providing the hardware overspeed trip function that protects the turbine-generator set from catastrophic overspeed events during load rejection or governor failure scenarios.

In oil and gas applications, including offshore platforms, LNG compression trains, and pipeline compressor stations, the Mark V system with DS200TCEBG1BAA provides the turbine protection backbone for mechanical drive gas turbines. The board’s hardware-level trip architecture is particularly valued in these environments, where the consequences of a turbine overspeed event extend beyond equipment damage to personnel safety and environmental compliance.

In petrochemical and refinery settings, the DS200TCEBG1BAA supports continuous process operations by ensuring that turbine-driven compressors and pumps are protected against overspeed conditions that could disrupt critical process flows. The board’s compatibility with TMR voting architectures supports the high-availability requirements of SIL 2 and SIL 3 safety instrumented systems commonly specified in these environments.

For steel, mining, and heavy industry applications where turbine-driven blowers, fans, and generators are integral to production continuity, the DS200TCEBG1BAA provides the overspeed protection layer that allows plant operators to maintain turbine availability targets while meeting functional safety obligations. Its long-term availability as a serviceable spare — supported by ZYPLC’s global inventory and warranty terms confirmed during quotation — makes it a preferred choice for maintenance engineers managing aging Mark V fleets.

Product Compatibility FAQ

Q1: Is the DS200TCEBG1BAA compatible with all Mark V panel configurations, including simplex and TMR systems?
The DS200TCEBG1BAA is designed for use within the GE Speedtronic Mark V platform and is compatible with both simplex and Triple Modular Redundant (TMR) panel configurations. In TMR systems, three EOS boards operate in parallel with voting logic to eliminate single-point failures in the overspeed protection chain. Engineers should verify the specific panel revision and firmware version with their system documentation or contact ZYPLC for compatibility confirmation prior to installation.

Q2: What commissioning steps are required when replacing the DS200TCEBG1BAA in an operating turbine control system?
Replacement of the DS200TCEBG1BAA should be performed during a planned turbine outage. The commissioning procedure includes: verifying power rail voltages at the backplane connector, confirming speed sensor signal integrity at the DS200TCEAG1BDD terminal board, performing an overspeed trip test at reduced speed setpoint to validate detection threshold, and documenting the as-found and as-left trip response times. All replacement activities should be performed by qualified turbine control engineers in accordance with GE’s Mark V maintenance documentation.

Q3: What does the warranty terms confirmed during quotation from ZYPLC cover for the DS200TCEBG1BAA?
ZYPLC’s warranty terms confirmed during quotation covers the DS200TCEBG1BAA against manufacturing defects and functional failures under normal operating conditions within a correctly configured Mark V system. The warranty period begins from the date of shipment. In the event of a warranty claim, ZYPLC provides board-level replacement or repair support, with global logistics coordination to minimize turbine downtime. For warranty service inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
