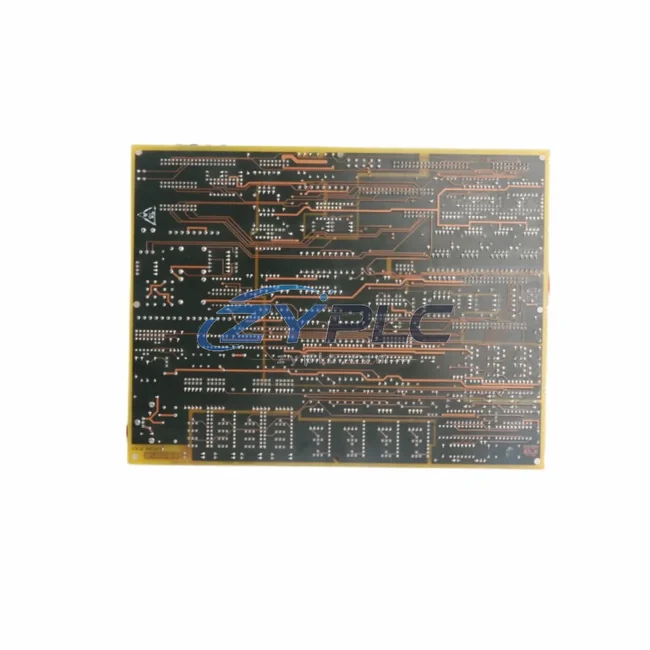

GE DS200TCRAG1ACC Analog Output for Mark V Automation

GE DS200TCRAG1ACC Analog Output for Mark V Automation

In modern turbine-driven power generation and heavy industrial facilities, the ability to precisely regulate analog output signals is the foundation of energy-efficient machine control. The GE DS200TCRAG1ACC is a high-performance analog output board engineered for the GE Speedtronic Mark V turbine control platform — a system trusted globally for gas turbine, steam turbine, and combined-cycle power plant automation. This board plays a critical role in translating digital control commands into accurate analog signals that govern actuators, valve positioners, and drive systems, directly influencing how efficiently a turbine consumes fuel and converts it into usable power.

Unlike generic I/O modules, the DS200TCRAG1ACC is purpose-built for the Mark V architecture, ensuring seamless integration with the Mark V controller core boards such as the DS200TCQCG1BHF (TCQC processor board) and the DS200TCDAG1AAA (analog input board). Together, these boards form a tightly coupled signal chain: the TCDAG captures real-time process variables — turbine exhaust temperature, compressor inlet pressure, fuel flow rate — while the DS200TCRAG1ACC converts the controller’s computed output into precise 4–20 mA or 0–10 V analog signals that drive downstream actuators and variable-speed equipment.

Product Specification Table

System Compatibility and Application

The DS200TCRAG1ACC does not operate in isolation — it is one node in a sophisticated industrial automation system that spans the entire turbine control loop. In a typical Mark V installation, the control sequence begins with the DS200TCDAG1AAA analog input board collecting live sensor data from thermocouples, pressure transducers, and flow meters distributed across the turbine skid. This data is processed by the DS200TCQCG1BHF TCQC processor, which executes the turbine’s control algorithms — fuel scheduling, load sharing, speed governing — and generates output commands that are then routed to the DS200TCRAG1ACC for analog signal conversion.

The analog outputs from the DS200TCRAG1ACC drive critical field devices: electro-hydraulic servo valves that control fuel flow to combustion chambers, inlet guide vane actuators that regulate compressor airflow, and bypass valve positioners that manage steam extraction in combined-cycle configurations. Each of these actuators directly affects the turbine’s heat rate — the amount of fuel consumed per unit of electrical output. By delivering stable, low-noise analog signals with high resolution, the DS200TCRAG1ACC enables the Mark V controller to maintain the turbine at its optimal operating point, minimizing fuel consumption while maximizing power output.

For facilities running multiple turbine units, the Mark V system communicates plant-wide efficiency data through the DS200DSPCH1A communication board, which links individual unit controllers to the plant DCS or SCADA system. Operators monitoring the GE Cimplicity HMI or third-party SCADA platforms can observe real-time analog output values, actuator positions, and efficiency KPIs — all traceable back to the signal quality delivered by the DS200TCRAG1ACC. In plants where the DS200TCPSG1A power supply board has been upgraded for improved voltage regulation, the analog output board benefits from cleaner power rails, further enhancing signal accuracy and reducing drift over long operating cycles.

Variable-speed auxiliary equipment — cooling water pumps, lube oil pumps, fuel gas compressors — is often controlled through GE AF-650 GP or compatible variable frequency drives (VFDs) that accept 4–20 mA setpoint signals. The DS200TCRAG1ACC provides these reference signals, allowing the Mark V controller to modulate auxiliary equipment speed in response to turbine load changes, eliminating the unplanned downtime associated with fixed-speed operation. This integration between the analog output board and the VFD layer is one of the most impactful operational-efficiency measures available in turbine auxiliary systems.

Maintenance and Replacement Notes

In gas-fired power plants operating under variable load dispatch, the ability to precisely position fuel control valves is the single most important factor in heat rate optimization. A miscalibrated or degraded analog output board introduces signal offset errors that cause the fuel valve to operate away from its optimal position — even a 1% deviation in fuel flow can translate to measurable increases in fuel cost over a year of continuous operation. The DS200TCRAG1ACC, when functioning correctly, eliminates this source of inefficiency by delivering repeatable, drift-free analog outputs that keep the fuel control valve precisely on its setpoint curve.

Beyond fuel efficiency, the DS200TCRAG1ACC contributes to reducing unplanned downtime — one of the largest hidden costs in power generation. Degraded analog output boards often manifest as erratic actuator behavior, unexplained load swings, or spurious turbine trips. These symptoms are frequently misdiagnosed as mechanical actuator failures, leading to unnecessary field maintenance. Replacing a faulty DS200TCRAG1ACC with a tested, verified unit restores signal integrity and eliminates the root cause of these control anomalies, reducing maintenance labor costs and extending the service life of downstream actuators.

For facilities transitioning from the Mark V to the GE Mark VIe platform, the DS200TCRAG1ACC remains relevant as a spare part for units still operating on the legacy system. Maintaining an inventory of critical analog output boards ensures that a board failure does not force an unplanned outage while waiting for a replacement to be sourced. ZYPLC maintains ready stock of the DS200TCRAG1ACC with full pre-shipment functional testing, allowing facilities to receive a verified replacement board within days rather than weeks.

Product Sourcing FAQ

Q1: How does the DS200TCRAG1ACC contribute to turbine energy efficiency?
The DS200TCRAG1ACC converts digital control commands from the Mark V processor into precise analog output signals (4–20 mA / 0–10 V) that position fuel valves, inlet guide vanes, and other actuators at their optimal setpoints. Accurate actuator positioning directly reduces fuel consumption and improves the turbine’s heat rate, making this board a key component in maintenance planning strategies.

Q2: Is the DS200TCRAG1ACC compatible with both Mark V and Mark VI systems?
The DS200TCRAG1ACC is natively designed for the GE Speedtronic Mark V platform. With appropriate interface adapters and engineering review, certain analog output functions can be mapped to Mark VI I/O modules, but direct plug-in compatibility with Mark VI is not guaranteed. For Mark VI applications, consult with a GE controls engineer or contact ZYPLC for compatibility assessment.

Q3: What testing is performed before shipment?
Every DS200TCRAG1ACC unit shipped by ZYPLC undergoes pre-shipment functional testing that verifies analog output channel accuracy, signal linearity, and board communication with the Mark V backplane. Test reports are available upon request. All units are covered by a warranty terms confirmed during quotation from the date of shipment.

Q4: How quickly can a replacement DS200TCRAG1ACC be delivered, and what is the warranty coverage?
ZYPLC maintains RFQ-confirmed sourcing of the DS200TCRAG1ACC for shipment arranged after confirmation via DHL or FedEx Express to global destinations. Standard delivery to most regions is 3–7 business days. All units carry a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available for emergency outage situations.
