GE DS3800HCMC1A1B Industrial Network Interface for Mark V Systems

GE DS3800HCMC1A1B: Industrial Data Link for Mark V Speedtronic Network Systems

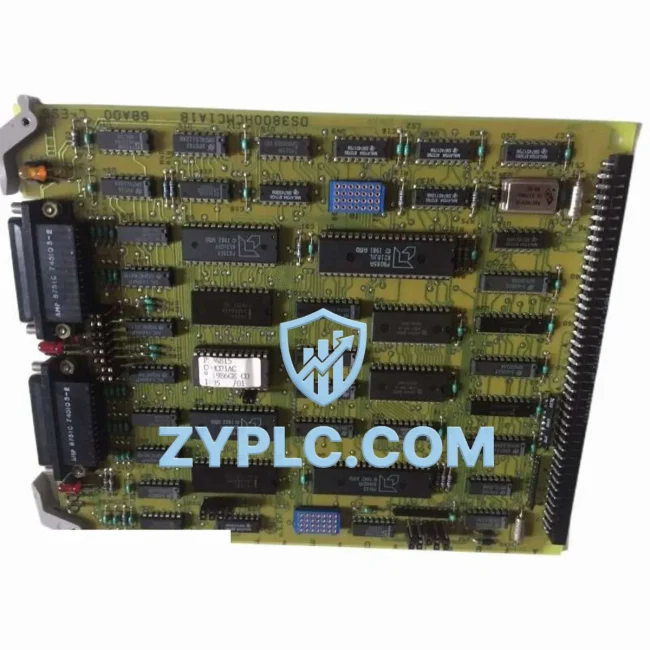

The GE DS3800HCMC1A1B Dual Communication Board is a mission-critical industrial network interface module engineered for the GE Mark V Speedtronic turbine control platform. In modern smart factory and power generation environments, seamless data flow between field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, and upper-level management networks is non-negotiable. The DS3800HCMC1A1B serves as the backbone of this communication architecture — bridging legacy turbine control logic with contemporary industrial Ethernet and serial protocol ecosystems.

From signal acquisition at the sensor level through protocol conversion, network transmission, real-time monitoring, alarm feedback, and remote diagnostics, this dual communication board ensures that every data packet traverses the control loop with minimal latency and maximum integrity. Whether deployed in gas turbine power plants, combined-cycle facilities, or heavy industrial process lines, the DS3800HCMC1A1B delivers the network stability and protocol compatibility that modern SCADA/HMI integration demands.

Network Communication Table

Connected Automation Data Flow

In a typical Mark V Speedtronic turbine control architecture, the DS3800HCMC1A1B sits at the heart of the communication hierarchy. At the field level, thermocouples, pressure transmitters, and vibration sensors feed raw process data into the Mark V I/O core. The DS3800HCMC1A1B then aggregates these signals and translates them across dual communication channels — enabling simultaneous data delivery to both local HMI panels and remote SCADA servers without signal contention or data loss.

Working alongside the GE DS3800HMPD1C1F Mark V processor board and the DS3800HUMB1A1A universal I/O module, the DS3800HCMC1A1B forms a tightly integrated control node. On the network side, it interfaces with industrial Ethernet switches — such as those in the GE Multilin protection relay network — to route turbine status data upstream to the plant DCS. For facilities running GE iFIX or Wonderware InTouch SCADA platforms, the board’s Modbus TCP/IP gateway capability ensures that real-time turbine parameters — shaft speed, exhaust temperature, fuel flow, and bearing vibration — are continuously visible on operator workstations.

In multi-unit power plants, the DS3800HCMC1A1B enables peer-to-peer communication between Mark V controllers across units, coordinating load-sharing logic through the DS3800HPPC1A1A power management module. Remote I/O expansion via DS3800HRPC1A1A remote processor cards further extends the data acquisition perimeter to auxiliary systems — cooling water circuits, lube oil skids, and inlet air filtration — all feeding into a unified SCADA dashboard. Variable frequency drives (VFDs) controlling auxiliary pumps and fans also report their operational status through the RS-485 serial link managed by the DS3800HCMC1A1B, completing the full-loop data chain from actuator to control room.

Edge gateway devices deployed at the plant network boundary collect aggregated data from the DS3800HCMC1A1B and forward it to cloud-based asset performance management (APM) platforms, enabling predictive maintenance analytics and remote diagnostics without requiring direct access to the turbine control network. This architecture supports both air-gapped security requirements and open industrial IoT connectivity models.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in aging power generation and heavy industrial facilities is protocol fragmentation. Legacy Mark V turbine controllers were designed in an era before unified industrial Ethernet standards, leaving many plants with isolated data islands — turbine data locked inside proprietary GE communication formats, inaccessible to modern DCS or SCADA platforms without costly middleware solutions.

The DS3800HCMC1A1B directly addresses this challenge. Its dual-channel architecture allows simultaneous operation of serial (RS-232/RS-485 Modbus RTU) and Ethernet (Modbus TCP/IP) communication paths, effectively acting as an onboard protocol gateway. This eliminates the need for external protocol converters and reduces network topology complexity. Plant engineers can now connect Mark V turbine data directly to OSIsoft PI historians, GE Predix APM platforms, or any OPC-DA/OPC-UA compliant SCADA system without intermediate translation hardware.

For production line transparency, the DS3800HCMC1A1B enables real-time KPI dashboards that display turbine efficiency, heat rate, and availability metrics alongside process data from adjacent systems. Alarm management is significantly improved — fault codes generated within the Mark V control logic are immediately propagated through the communication board to SCADA alarm servers, triggering automated notifications to maintenance teams via SMS or email, dramatically reducing mean time to repair (MTTR).

System scalability is another key advantage. As plant operators expand their monitoring scope — adding new turbine units, integrating renewable energy sources, or connecting to enterprise ERP systems — the DS3800HCMC1A1B’s network architecture supports incremental expansion without requiring a full control system overhaul. Its compatibility with the broader GE Mark V and Mark VI ecosystem means that future upgrades to DS3800-series processor and I/O modules can be integrated without disrupting existing communication configurations.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE DS3800HCMC1A1B support?
The DS3800HCMC1A1B supports Modbus RTU over RS-232/RS-485 serial links and Modbus TCP/IP over industrial Ethernet, making it compatible with the vast majority of SCADA, DCS, and HMI platforms used in power generation and process industries. Its dual-channel design allows both protocol paths to operate simultaneously without mutual interference.

Q2: How does this board ensure network stability in high-noise industrial environments?
The DS3800HCMC1A1B is designed to GE’s industrial-grade EMC specifications, with shielded communication interfaces and hardware-level error detection on both serial and Ethernet channels. In the Mark V Speedtronic architecture, the board operates within a redundant control framework, so communication faults trigger automatic failover to backup channels, maintaining continuous data flow to SCADA and HMI systems even during partial network disruptions.

Q3: Can the DS3800HCMC1A1B integrate with third-party SCADA or HMI systems?
Yes. Because the board exposes standard Modbus TCP/IP and Modbus RTU interfaces, it is natively compatible with SCADA platforms such as GE iFIX, Wonderware InTouch, Siemens WinCC, and Inductive Automation Ignition, as well as OPC server middleware. No proprietary GE software license is required for basic SCADA connectivity.

Q4: What quality assurance and warranty coverage does ZYPLC provide for this module?
Every DS3800HCMC1A1B unit shipped by ZYPLC undergoes a full functional outgoing inspection, including communication channel verification, protocol handshake testing, and power integrity checks. All units are covered by a 12-month warranty from the date of shipment. In the event of a verified hardware defect within the warranty period, ZYPLC provides replacement or repair at no additional cost. Our inventory is sourced from verified industrial surplus and OEM channels, ensuring authenticity and traceability.
