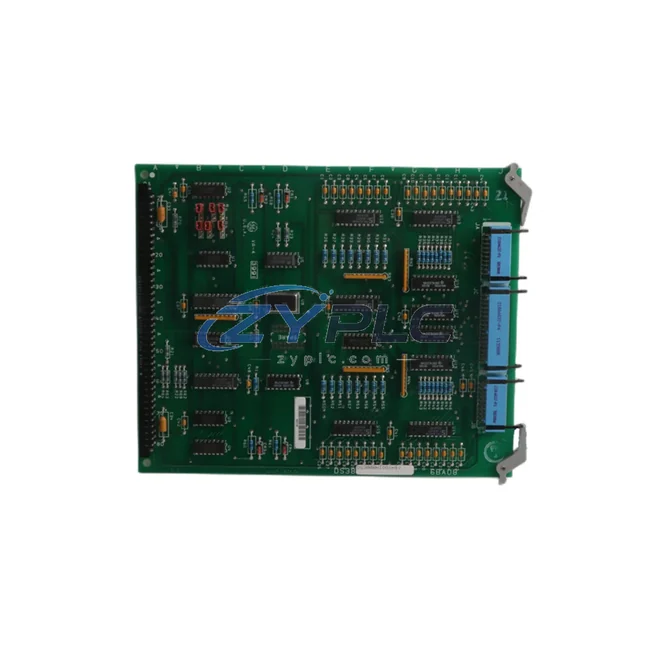

GE DS3800HIOD1H1G Digital I/O for DS3800

GE DS3800HIOD1H1G Digital I/O Board: Compatibility and Replacement Notes

The GE DS3800HIOD1H1G is a digital input/output board engineered specifically for the GE Mark IV Speedtronic turbine control platform, operating as a critical signal-routing node within the DS3800 series rack architecture. Rather than functioning as a standalone component, this board is designed to integrate seamlessly across the full control system hierarchy — from the CPU and backplane layer down through the I/O field termination layer — ensuring consistent signal integrity, deterministic scan cycles, and long-term maintainability in demanding industrial environments.

In a complete Mark IV Speedtronic control system, the DS3800HIOD1H1G occupies the digital I/O layer, receiving discrete signals from field sensors, limit switches, solenoid valve feedback circuits, and protective relay outputs, then routing processed logic states to the system CPU for real-time decision-making. Its role is not isolated — it operates in tight coordination with adjacent modules across the control, power, communications, and execution layers to deliver a unified automation response.

Product Specification Table

System Compatibility Notes

The DS3800HIOD1H1G achieves its full value only when understood within the broader Mark IV Speedtronic system architecture. At the CPU layer, the DS3800HPIB (High-Performance Interface Board) and DS3800NMEC (Mark IV CPU module) serve as the processing core, executing turbine control logic and issuing commands that flow downstream through the I/O layer where the DS3800HIOD1H1G resides. The digital I/O board translates CPU logic states into field-level discrete signals and returns field status back to the processor in real time.

At the power layer, the DS3800DPCA power supply board and associated DS3800DPCB power conditioning module provide regulated DC power to the rack backplane, ensuring that all installed boards — including the DS3800HIOD1H1G — receive stable, noise-free supply voltage. Power layer integrity is foundational: voltage fluctuations at the backplane directly affect I/O scan reliability and signal accuracy.

Within the I/O layer itself, the DS3800HIOD1H1G works alongside analog counterparts such as the DS3800HAIC (Analog Input Card) and DS3800HAOC (Analog Output Card), which handle continuous process variables like temperature, pressure, and speed references. Together, these I/O modules form a complete signal acquisition and command distribution layer that feeds the CPU with a full picture of turbine operating state.

At the communications layer, the DS3800HRCA (Redundant Communications Adapter) and associated network interface modules enable the Mark IV system to exchange data with plant-level SCADA systems, DCS platforms, and historian servers. The DS3800HIOD1H1G’s digital status outputs — trip signals, permissive states, alarm flags — are aggregated at this layer and transmitted upstream for plant-wide visibility and logging.

For human-machine interface integration, operator workstations running GE’s Mark IV HMI software receive real-time digital status from the DS3800HIOD1H1G via the CPU and communications layer, enabling operators to monitor discrete I/O states, acknowledge alarms, and issue manual overrides without direct field access. Terminal boards such as the DS3800XTBA and DS3800XTBB provide the physical field wiring termination points that connect field devices to the DS3800HIOD1H1G’s I/O channels, completing the signal path from sensor to screen.

In redundant architecture configurations, a secondary DS3800HIOD1H1G board can be installed in a mirrored rack slot, with the system’s redundancy management logic — coordinated through the DS3800HRCA — performing automatic switchover in the event of a primary board fault. This hot-standby capability is essential in continuous-process applications where unplanned downtime carries significant operational and safety consequences.

Industrial Application Notes

Power Generation — Gas and Steam Turbine Control: The DS3800HIOD1H1G is most commonly deployed in gas turbine and steam turbine control panels where the GE Mark IV Speedtronic system governs start-up sequencing, speed control, load sharing, and protective shutdown. Digital I/O channels monitor flame detector status, inlet guide vane limit switches, lube oil pressure switches, and vibration trip relays. The board’s deterministic scan cycle ensures that protective trip signals reach the CPU within the required response time to prevent equipment damage.

Petrochemical and Refinery Process Control: In compressor train control applications within refineries and LNG facilities, the DS3800HIOD1H1G handles discrete interlocks for anti-surge valve position feedback, emergency shutdown (ESD) system inputs, and motor control center (MCC) status signals. Its compatibility with the DS3800 rack architecture allows it to be integrated into existing control cabinets without panel redesign, reducing retrofit project scope and cost.

Power Utility and Grid Infrastructure: Utility-scale power plants operating GE Frame 5, Frame 6, or Frame 7 gas turbines rely on the Mark IV Speedtronic platform for unit control. The DS3800HIOD1H1G provides the discrete I/O interface for generator protection relay outputs, breaker status feedback, and excitation system permissives — all critical signals in grid synchronization and load dispatch operations.

Mining and Mineral Processing: In mining applications where large rotating equipment such as ball mills, SAG mills, and conveyor drives are controlled through PLC or DCS platforms interfaced with legacy turbine-driven equipment, the DS3800HIOD1H1G serves as the digital bridge between field instrumentation and the Mark IV control core, supporting long-term asset life extension strategies without full system replacement.

Marine and Offshore Platforms: Offshore oil and gas platforms operating gas turbine-driven generators and compressors in hazardous area classifications depend on the reliability of the Mark IV Speedtronic platform. The DS3800HIOD1H1G’s robust industrial design and compatibility with the DS3800 rack system make it suitable for marine-grade control cabinet installations where vibration, humidity, and temperature cycling are ongoing operational challenges.

Product Compatibility FAQ

Q1: Is the DS3800HIOD1H1G a direct drop-in replacement for an existing DS3800 series digital I/O board, and does it require any firmware or configuration changes upon installation?
A: Yes. The DS3800HIOD1H1G is designed for system integration within the DS3800 rack architecture, meaning it installs directly into the designated rack slot without requiring firmware updates, address reconfiguration, or backplane rewiring. The Mark IV Speedtronic CPU automatically recognizes the board upon power-up through the backplane bus enumeration process. Engineers should verify that the replacement board’s hardware revision is compatible with the installed CPU module version — consult the GE Mark IV system configuration record or contact our technical team for revision compatibility confirmation before installation.

Q2: Can the DS3800HIOD1H1G be used in a redundant I/O architecture, and what is required to enable automatic failover?
A: Redundant digital I/O operation in the Mark IV Speedtronic platform requires a mirrored rack configuration with a secondary DS3800HIOD1H1G installed in the corresponding redundant slot, coordinated through the DS3800HRCA redundancy communications adapter. The CPU’s redundancy management software continuously monitors both primary and secondary board health via backplane diagnostics. In the event of a primary board fault, switchover to the secondary board occurs automatically within the system’s configured fault response time. No manual intervention is required during failover, making this configuration suitable for unattended or remotely monitored installations.

Q3: What does the warranty terms confirmed during quotation cover for the DS3800HIOD1H1G, and what is the support process if a board fails during the warranty period?
A: The warranty terms confirmed during quotation covers all manufacturing defects, component failures, and functional performance issues that arise under normal operating conditions within the DS3800 rack environment. Physical damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the board’s rated operating range is excluded. In the event of a warranty claim, contact our support team at plc.sales@zyplc.com or +86 19859288691 with the board’s serial number and a description of the fault symptom. Our technical team will assess the failure mode and arrange for board repair or replacement. Advance replacement service is available for critical applications where extended downtime is not acceptable.
