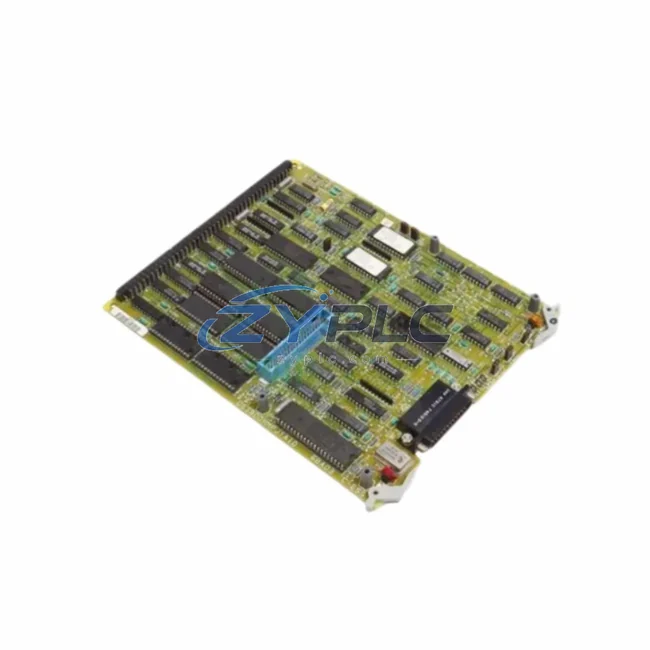

GE DS3800HMPK1J1J Microprocessor for Mark IV

GE DS3800HMPK1J1J Microprocessor for Mark IV: The Control System Intelligence Layer

In any high-availability turbine control environment, the microprocessor board is not simply a component — it is the cognitive core of the entire control system architecture. The GE DS3800HMPK1J1J Microprocessor Board, designed for the Speedtronic Mark IV turbine control platform, occupies the most critical position in the control hierarchy: it orchestrates signal acquisition, logic execution, inter-board communication, and real-time output to actuators and protection circuits. Understanding this board means understanding how a Mark IV system thinks, responds, and sustains continuous operation across demanding industrial environments.

The DS3800HMPK1J1J is engineered to operate within the Mark IV’s multi-board rack architecture, where it works in close coordination with companion boards such as the DS3800HXPD1C1E Expander Board, which extends the I/O capacity of the control rack, and the DS3800HPPC1A1A Power Supply Board, which delivers the regulated voltages required for stable microprocessor operation. Together, these boards form the backbone of a complete turbine control cabinet, where every millisecond of processing latency and every millivolt of supply stability directly affects turbine safety and efficiency.

Product Specification Table

System Compatibility Notes

The DS3800HMPK1J1J does not operate in isolation. Its value is fully realized only when it is integrated into a complete Mark IV control rack alongside the full suite of system boards. In a typical turbine control cabinet, the microprocessor board receives analog and digital signals from field-mounted sensors — thermocouples, RTDs, pressure transmitters, and speed pickups — through dedicated I/O boards such as the DS3800HSIA1A1A Analog Input Board and the DS3800HDID1D1D Digital Input Board. These boards condition and digitize field signals before passing them across the backplane to the DS3800HMPK1J1J for logic processing.

On the output side, the microprocessor board drives actuator commands through boards like the DS3800HSQB1A1A Sequence Output Board and the DS3800HPPC1A1A Power Supply Board, which together manage valve positioning, relay activation, and protection trip circuits. For systems requiring expanded I/O capacity — common in combined-cycle or multi-shaft configurations — the DS3800HXPD1C1E Expander Board connects directly to the main rack, extending the system’s signal handling capability without requiring additional CPU resources.

Communication between the Mark IV control panel and the plant-level SCADA or DCS is typically handled through a dedicated communication gateway or interface board such as the DS3800HCMA1A1A Communication Board, which bridges the Mark IV’s internal ARCNET protocol to Modbus RTU or other plant-standard protocols. This allows operators at the HMI workstation — often running GE’s proprietary Mark IV operator interface or a third-party SCADA platform — to monitor turbine parameters, acknowledge alarms, and issue setpoint changes in real time. The DS3800HMPK1J1J processes all incoming operator commands and translates them into precise actuator outputs, maintaining closed-loop control across the entire turbine operating envelope.

For systems with redundancy requirements, the DS3800HMPK1J1J supports Triple Modular Redundancy (TMR) configurations, where three independent microprocessor boards vote on control outputs to eliminate single-point failures. In such architectures, the DS3800HVOT1A1A Voter Board arbitrates between the three processors, ensuring that any single board fault does not interrupt turbine operation. This level of architectural redundancy is essential in power generation, petrochemical, and LNG applications where unplanned shutdowns carry significant operational and financial consequences.

Industrial Application Notes

The DS3800HMPK1J1J finds application across a wide range of industries where gas turbines, steam turbines, or combined-cycle units form the core of the power generation or mechanical drive infrastructure. In power generation plants, the board manages the full turbine start sequence, load control, and protective shutdown logic, interfacing with plant DCS systems via the communication gateway to provide real-time generation data to the maintenance planning system. In petrochemical and refinery facilities, it controls mechanical drive turbines that power compressors and pumps, where process continuity is directly tied to turbine availability.

In LNG liquefaction plants, the DS3800HMPK1J1J operates within multi-train turbine control architectures, where each train’s Mark IV system must communicate with a plant-wide DCS to coordinate production throughput. In steel and metallurgical plants, it controls turbine-driven blowers and compressors that support blast furnace and rolling mill operations, where the control system must respond to rapid load changes without compromising turbine protection. In water treatment and pumping stations, the board manages turbine-driven high-pressure pumps, where remote monitoring via SCADA is essential for unmanned or semi-attended operation.

Across all these applications, the DS3800HMPK1J1J delivers the same core value: deterministic, real-time control logic execution with the architectural flexibility to support both standalone and redundant system configurations. Its compatibility with the full Mark IV board ecosystem ensures that system integrators and maintenance engineers can source replacement boards, expand I/O capacity, and upgrade communication interfaces without redesigning the control architecture.

Product Compatibility FAQ

Q1: Is the DS3800HMPK1J1J compatible with all Mark IV turbine control configurations, including TMR systems?
Yes. The DS3800HMPK1J1J is designed for the GE Speedtronic Mark IV platform and supports both simplex and Triple Modular Redundancy (TMR) configurations. In TMR systems, three DS3800HMPK1J1J boards operate in parallel, with the DS3800HVOT1A1A Voter Board arbitrating outputs. All boards are tested for backplane compatibility and inter-board communication integrity before shipment.

Q2: How do I verify that a replacement DS3800HMPK1J1J will integrate correctly with my existing Mark IV rack without requiring full system reconfiguration?
The DS3800HMPK1J1J is a direct form-fit-function replacement for the original GE board. It uses the same backplane connector pinout, firmware interface, and I/O addressing as the original. Upon installation, the board initializes from the system’s existing configuration EEPROM, eliminating the need for full system reconfiguration. Our technical team can provide pre-shipment configuration verification upon request.

Q3: What does the warranty terms confirmed during quotation cover, and what is the process for warranty claims?
Our warranty terms confirmed during quotation covers all manufacturing defects, component failures, and functional faults that arise under normal operating conditions. Every DS3800HMPK1J1J undergoes full functional testing — including backplane communication, logic execution, and I/O interface verification — before shipment. In the event of a warranty claim, we provide advance replacement to minimize system downtime, with return logistics coordinated by our support team. Contact us at plc.sales@zyplc.com or +86 19859288691 to initiate a claim.
