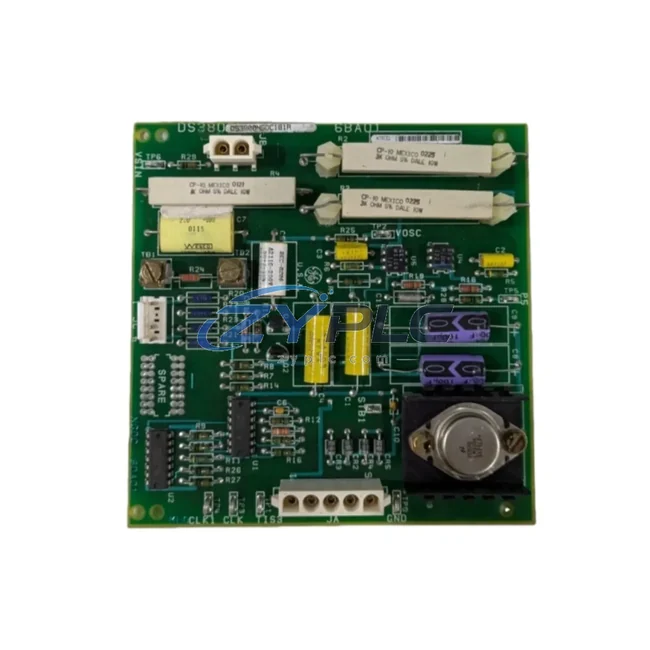

GE DS3800NGDC1B1A Ground Detector Mark IV

GE DS3800NGDC1B1A Ground Detector Module for Mark IV Automation

The GE DS3800NGDC1B1A is a precision ground detection module engineered for the GE Mark IV turbine control platform. In modern industrial power generation and heavy manufacturing environments, undetected ground faults are among the leading causes of unplanned downtime, excessive unplanned downtime, and accelerated equipment degradation. The DS3800NGDC1B1A addresses this challenge directly — continuously monitoring insulation integrity across the control system’s DC bus, enabling operators to identify fault conditions before they escalate into costly failures. By catching ground faults early, facilities can maintain optimal motor control efficiency, reduce reactive maintenance cycles, and keep production lines running at their designed throughput and energy performance targets.

Product Specification Table

System Compatibility and Application

The DS3800NGDC1B1A does not operate in isolation — it is a critical sensing node within a broader industrial automation system. In a typical GE Mark IV turbine control cabinet, the ground detector module works in concert with the DS3800NPPC power supply board, which regulates the DC bus voltage that the DS3800NGDC1B1A monitors. Any instability in the power supply directly affects ground fault detection accuracy, making these two modules functionally interdependent.

Upstream, the DS3800HPPC and DS3800NDAC analog output cards manage actuator drive signals that influence turbine load and fuel flow. When the ground detector identifies an insulation anomaly, the Mark IV’s central processor — typically coordinated through the DS3800NMEC master encoder card — can initiate a controlled load reduction sequence, preventing the kind of abrupt shutdowns that waste significant amounts of fuel and generate thermal stress on rotating components.

On the I/O side, the DS3800DMPG digital I/O module collects discrete status signals from field devices including temperature switches, pressure transmitters, and vibration sensors. These signals feed into the same control loop that the DS3800NGDC1B1A protects, ensuring that a ground fault event is correlated with real-time process data rather than treated as an isolated electrical anomaly. This correlation is essential for root cause analysis and for minimizing the energy penalty associated with unnecessary full-system shutdowns.

For facilities that have integrated modern SCADA or DCS overlays onto their legacy Mark IV infrastructure, the DS3800HPID PID control card and DS3800NPSV power supply module provide the bridge between the turbine’s native control logic and higher-level maintenance planning systems. When the ground detector flags a developing fault, these components allow the maintenance planning layer to dynamically adjust setpoints — reducing turbine output in a controlled ramp rather than a hard trip — preserving both equipment integrity and energy efficiency.

Communication between the Mark IV rack and plant-level monitoring systems is often handled through serial interface modules such as the DS3800NTBA terminal board assembly, which aggregates I/O signals and transmits status data to the operator HMI. Real-time visibility into ground fault status, combined with drive efficiency metrics from the turbine’s speed control loop, gives maintenance teams the data they need to schedule interventions during planned maintenance windows rather than reacting to emergency shutdowns.

Maintenance and Replacement Notes

In gas turbine power plants and combined-cycle facilities, the GE Mark IV control system governs fuel metering, compressor inlet guide vane positioning, and generator excitation — all of which have direct energy consumption implications. A ground fault that goes undetected in this environment can cause erratic behavior in the fuel control actuators, leading to combustion inefficiency, elevated NOx emissions, and increased heat rate. The DS3800NGDC1B1A prevents this scenario by providing continuous, real-time ground fault surveillance across the DC control bus.

In petrochemical and refinery applications, where Mark IV systems are often used to control large compressor trains and pump drives, the energy stakes are even higher. A single unplanned compressor trip can result in hours of restart time, during which the facility draws power without producing output — a direct energy efficiency loss. By maintaining ground fault detection integrity, the DS3800NGDC1B1A helps keep these critical drives online, reducing the frequency of energy-wasteful restart cycles.

From a predictive maintenance perspective, trending ground fault resistance values over time — made possible by the DS3800NGDC1B1A’s continuous monitoring — allows maintenance engineers to identify gradual insulation degradation before it reaches the trip threshold. This approach shifts maintenance from a reactive, energy-disruptive model to a planned, energy-neutral one. Scheduled maintenance during low-demand periods means the turbine or compressor can be brought down and restored without impacting the facility’s overall energy balance.

Every DS3800NGDC1B1A unit supplied by ZYPLC undergoes functional testing prior to shipment, verifying detection circuit integrity, signal output accuracy, and board-level power consumption within specification. Stock is maintained for fast dispatch, supporting both emergency replacement and planned maintenance schedules. All units are covered by a warranty terms confirmed during quotation, reflecting confidence in the quality of each tested module.

Product Sourcing FAQ

Q1: How does the DS3800NGDC1B1A contribute to energy efficiency in a Mark IV turbine control system?
By continuously monitoring the DC bus for ground faults, the DS3800NGDC1B1A enables early fault detection that prevents unplanned turbine trips. Avoiding emergency shutdowns eliminates the unplanned downtime associated with uncontrolled rundowns and extended restart sequences, directly improving the facility’s overall energy utilization rate.

Q2: Is the DS3800NGDC1B1A compatible with GE Mark V or other turbine control platforms?
The DS3800NGDC1B1A is designed for the GE Mark IV control platform. Compatibility with Mark V systems depends on the specific rack configuration and terminal board layout. We recommend consulting your system documentation or contacting our technical team to confirm fitment before ordering for non-Mark IV applications.

Q3: What is the recommended replacement procedure to minimize production downtime?
For planned replacements, the module should be swapped during a scheduled maintenance window with the turbine at standstill and the DC bus de-energized. ZYPLC maintains ready stock of tested DS3800NGDC1B1A units to support fast turnaround. Our team can advise on pre-replacement testing steps to confirm the fault is isolated to the ground detector module rather than a wiring or bus issue.

Q4: What does the warranty terms confirmed during quotation cover, and what testing is performed before shipment?
Every DS3800NGDC1B1A unit is functionally tested prior to dispatch, covering detection circuit continuity, output signal integrity, and power consumption verification. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or repaired at no additional cost.
