GE DS3800NGDD1C1B Field Ground Detector Mark IV

GE DS3800NGDD1C1B Field Ground Detector Mark IV: Precision Ground Fault Control for Turbine Automation

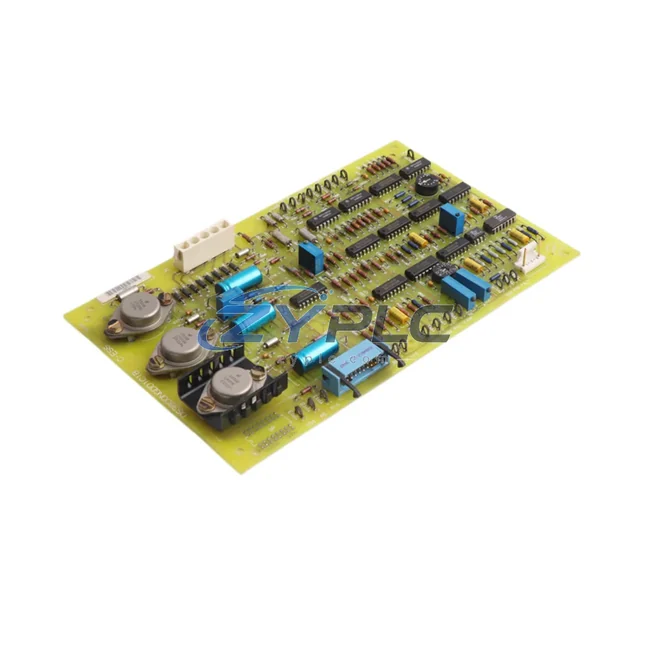

The GE DS3800NGDD1C1B is a high-performance Field Ground Detector Module designed for the GE Mark IV Speedtronic Turbine Control System. In modern industrial power generation and heavy manufacturing environments, undetected ground faults in excitation field circuits are among the leading causes of unplanned downtime, excessive unplanned downtime, and accelerated equipment degradation. The DS3800NGDD1C1B addresses this challenge directly — providing continuous, real-time ground fault monitoring that enables plant operators to maintain peak electrical efficiency, protect rotating machinery, and reduce the hidden energy costs associated with insulation breakdown and reactive fault currents.

By integrating the DS3800NGDD1C1B into your Mark IV turbine control architecture, your facility gains a proactive layer of electrical health monitoring that directly supports energy conservation goals. Rather than waiting for a fault to escalate into a full trip event — with the associated restart energy surge, production loss, and maintenance labor — this module enables early detection and controlled response, keeping your turbine running at its optimal efficiency point for longer periods between interventions.

Product Specification Table

System Compatibility and Application

The DS3800NGDD1C1B does not operate in isolation — it is a critical node within a broader industrial automation system built around the GE Mark IV platform. Understanding how this module interacts with adjacent system components reveals its true value in an efficiency-optimized plant.

At the control execution layer, the Mark IV system relies on boards such as the DS3800HMPK (Master Processor Card) and the DS3800NPPC (Power Supply Card) to coordinate turbine sequencing and maintain stable voltage rails across the control backplane. When the DS3800NGDD1C1B detects an incipient ground fault in the excitation field circuit, it signals the processor layer immediately — allowing the DS3800NREG (Regulator Card) to adjust excitation output before the fault propagates into a full trip condition. This closed-loop response is fundamental to maintaining generator efficiency without sacrificing protection.

On the I/O and signal conditioning side, modules like the DS3800HSIA (Analog Input Card) and DS3800HSIB (Digital Input Card) feed real-time process data — temperatures, pressures, vibration signals — into the Mark IV processor. The ground detector module complements this data stream by adding electrical health status to the overall picture, giving operators a complete view of both mechanical and electrical efficiency parameters from a single control platform.

For facilities that have integrated the Mark IV system with modern SCADA or DCS environments via Modbus RTU or PROFIBUS DP communication protocols, the fault status signals from the DS3800NGDD1C1B can be mapped to higher-level maintenance planning dashboards. This enables plant energy managers to correlate ground fault events with real-time power consumption data — identifying patterns where insulation degradation is silently increasing reactive current draw and reducing overall power factor.

In excitation systems paired with static excitation controllers or brushless exciter configurations, the DS3800NGDD1C1B works alongside the DS3800NPSV (Power Supply Voltage Card) and field flashing circuits to ensure that excitation energy is delivered cleanly and efficiently to the generator rotor. A ground fault left undetected in this circuit does not merely create a safety hazard — it introduces resistive losses and harmonic distortion that measurably reduce generator output efficiency. Early detection by the DS3800NGDD1C1B preserves the integrity of the excitation path and keeps the generator operating at its rated power factor.

For plants running parallel turbine-generator sets, the DS3800NDAC (Digital-to-Analog Converter Card) and load-sharing modules within the Mark IV architecture depend on accurate excitation feedback to balance reactive load distribution between units. A ground fault on one unit’s field circuit, if undetected, can cause that unit to absorb disproportionate reactive power — increasing its internal losses while reducing the efficiency of the entire generation fleet. The DS3800NGDD1C1B prevents this scenario by providing the early warning needed to isolate and correct the fault before load-sharing algorithms are compromised.

Maintenance and Replacement Notes

In practical plant operations, the maintenance planning value of the DS3800NGDD1C1B is best understood through the lens of total cost of ownership and production continuity. Consider a combined-cycle power plant operating two GE Frame 7 gas turbines under Mark IV control. Each turbine-generator set represents tens of megawatts of generation capacity. A single undetected field ground fault, if allowed to develop into a double ground fault, can force an emergency trip — taking the unit offline for hours or days while the excitation system is inspected and repaired.

The energy cost of an unplanned trip is substantial: the restart sequence alone consumes significant fuel energy to bring the turbine back to synchronous speed, and the lost generation during the outage must be compensated by less efficient peaking units or purchased from the grid at premium rates. The DS3800NGDD1C1B eliminates this scenario by providing continuous first-ground detection, allowing operators to schedule a controlled maintenance window rather than responding to an emergency.

Beyond trip prevention, the module supports predictive maintenance workflows. By trending the ground fault resistance readings over time, maintenance teams can identify gradual insulation degradation in the rotor winding — a process that typically unfolds over weeks or months before reaching a critical threshold. This trending capability allows maintenance to be planned during scheduled outages, maximizing equipment utilization and avoiding the unplanned downtime associated with emergency restarts.

For facilities focused on ISO 50001 maintenance planning compliance or internal energy KPI reporting, the DS3800NGDD1C1B contributes directly to the electrical efficiency metrics that auditors and energy managers track. Maintaining high insulation resistance in the excitation circuit is a prerequisite for achieving rated generator efficiency — and the DS3800NGDD1C1B is the module that makes continuous monitoring of that parameter possible within the Mark IV architecture.

All units supplied by ZYPLC are fully tested prior to shipment, with functional verification of ground detection sensitivity and alarm output circuits. RFQ-confirmed availability supports rapid deployment to minimize production disruption, and every DS3800NGDD1C1B is backed by a warranty terms confirmed during quotation covering parts and workmanship.

Product Sourcing FAQ

Q1: How does the DS3800NGDD1C1B contribute to operational stability in a turbine plant?
By detecting the first ground fault in the excitation field circuit before it develops into a double ground fault and forced trip, the DS3800NGDD1C1B prevents the energy-intensive restart sequences and production losses associated with unplanned outages. It also helps maintain optimal excitation efficiency by ensuring the field circuit remains free of resistive leakage paths that increase reactive current draw and reduce generator power factor.

Q2: Is the DS3800NGDD1C1B compatible with my existing GE Mark IV system?
Yes. The DS3800NGDD1C1B is designed specifically for the GE Mark IV Speedtronic Turbine Control platform and is a direct drop-in replacement for the original module. No firmware changes or hardware modifications are required for standard installations. If your system has been upgraded or modified, our technical team can assist with compatibility verification prior to shipment.

Q3: What is the recommended replacement interval, and how do I know when the module needs to be replaced?
There is no fixed replacement interval for the DS3800NGDD1C1B under normal operating conditions. Replacement is typically indicated by recurring nuisance alarms without a confirmed field ground fault, failure to reset after a known fault has been cleared, or diagnostic testing that reveals degraded detection sensitivity. ZYPLC recommends keeping a tested spare in inventory to minimize replacement lead time when the need arises.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every DS3800NGDD1C1B supplied by ZYPLC undergoes functional testing to verify ground detection circuit operation, alarm output response, and backplane interface integrity before dispatch. The warranty terms confirmed during quotation covers defects in parts and workmanship under normal operating conditions. Units that fail within the warranty period are repaired or replaced at no charge. Contact our team at plc.sales@zyplc.com for warranty claims or pre-shipment technical questions.
