GE DS3800NPSE1E1G Power Supply for Speedtronic

GE DS3800NPSE1E1G Power Supply for Speedtronic Mark IV

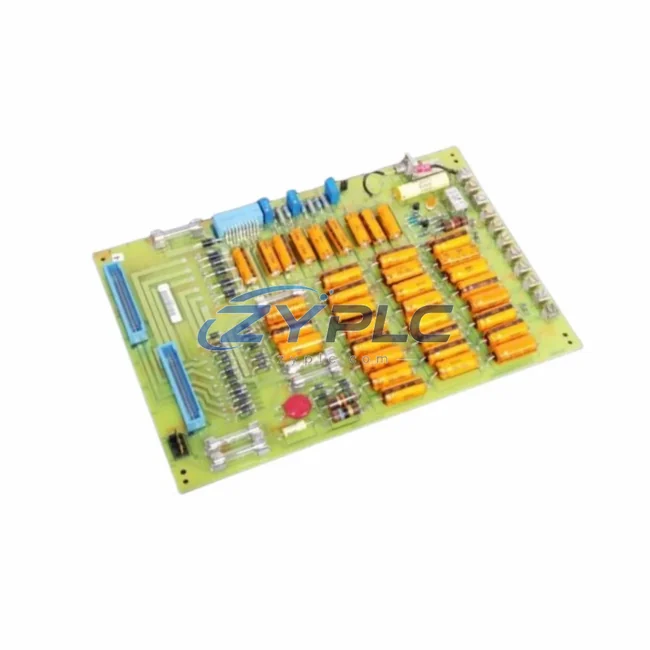

The GE DS3800NPSE1E1G is a dedicated power supply board engineered for deployment within the GE Speedtronic Mark IV turbine control platform. In modern industrial automation environments, power integrity is not a standalone concern — it is the foundation upon which every control layer depends. This module is designed to deliver stable, conditioned DC power across the full Speedtronic backplane, ensuring that CPU modules, I/O expansion cards, communication gateways, and operator interface systems all receive the regulated voltage levels required for deterministic, fault-tolerant operation. Understanding the DS3800NPSE1E1G within its system architecture context is essential for engineers responsible for turbine control reliability, long-term maintenance planning, and multi-site fleet standardization.

Product Specification Table

System Compatibility Notes

The DS3800NPSE1E1G does not operate in isolation. Its value is realized through its role as the power backbone of a coordinated Speedtronic Mark IV control panel, where every downstream module depends on its output stability. In a typical Mark IV turbine control architecture, the power supply board feeds regulated voltage to the DS3800HPIB (High-Performance Interface Board), the DS3800NPSB (auxiliary power supply module), and the DS3800DMPX (digital multiplexer board), all of which share the same backplane bus. The DS3800NMEC (Mark IV executive controller) relies on clean power delivery to maintain scan cycle integrity and real-time turbine sequencing logic.

At the I/O layer, analog input modules such as the DS3800HVIA and thermocouple input cards require stable ±15 VDC rails to maintain signal accuracy across temperature and vibration ranges typical of gas turbine environments. Any ripple or dropout at the power supply level propagates directly into measurement error at the process input layer. The DS3800NPSE1E1G’s regulated output architecture prevents this cascade failure mode.

For communication continuity, the Mark IV panel typically integrates an ARCNET communication module (such as the DS3800NANA or equivalent) that links the turbine controller to the plant DCS or SCADA system. This communication layer depends on the power supply board maintaining consistent voltage during load transients — particularly during startup sequences when multiple I/O modules initialize simultaneously. The DS3800NPSE1E1G is rated to handle these transient load conditions without triggering protective shutdowns.

In redundant Mark IV configurations, a secondary power supply module — often the DS3800NPSB — operates in hot-standby mode. The DS3800NPSE1E1G is designed to support seamless bumpless transfer to the standby supply, ensuring that the DS3800NMEC executive controller and all connected I/O modules remain powered without interruption during primary supply maintenance or failure events. This redundancy architecture is critical in power generation and petrochemical applications where unplanned turbine trips carry significant operational and safety consequences.

At the human-machine interface layer, operator workstations and Mark IV HMI panels connected via serial or ARCNET links depend on the control panel’s power stability to maintain real-time data refresh rates. Voltage instability at the DS3800NPSE1E1G level can manifest as communication timeouts or display anomalies at the HMI — symptoms that are often misdiagnosed as software or network issues rather than traced back to their root cause at the power supply board.

Industrial Application Notes

The DS3800NPSE1E1G finds its primary application in gas turbine and steam turbine control systems across power generation, oil and gas, petrochemical refining, and heavy industrial sectors. In combined-cycle power plants, the Mark IV Speedtronic system governs fuel control, inlet guide vane positioning, exhaust temperature monitoring, and protective trip logic — all of which depend on uninterrupted, regulated power from the DS3800NPSE1E1G.

In offshore and onshore oil and gas compression stations, where turbine-driven compressors operate continuously in hazardous environments, the power supply board’s reliability directly impacts production uptime. Operators in these facilities typically maintain a spare DS3800NPSE1E1G in their critical spares inventory, recognizing that lead times for OEM-sourced replacements can extend beyond acceptable downtime windows. Having a tested, verified replacement available — backed by a warranty terms confirmed during quotation — allows maintenance teams to execute planned or emergency replacements with confidence.

In petrochemical and refinery applications, the Mark IV system is often integrated into a plant-wide DCS architecture via gateway modules. The DS3800NPSE1E1G’s stable power output ensures that these gateway communications remain synchronized with the plant historian and safety instrumented system (SIS), supporting both operational continuity and regulatory compliance requirements.

For water treatment and municipal utility operators managing turbine-driven pump stations, the DS3800NPSE1E1G supports long-term asset life extension strategies. Rather than full panel replacement, targeted component-level maintenance — replacing the power supply board while retaining the existing Mark IV backplane, I/O modules, and communication infrastructure — delivers significant capital cost savings while maintaining system performance and system integration with existing plant control architecture.

Product Compatibility FAQ

Q1: Is the DS3800NPSE1E1G compatible with both early and late Mark IV Speedtronic panel configurations?
The DS3800NPSE1E1G is designed for the DS3800 series backplane used across Mark IV Speedtronic panels. Compatibility depends on the specific panel revision and backplane connector configuration. Engineers should verify the panel’s power supply slot specification and voltage rail requirements against the DS3800NPSE1E1G datasheet before installation. In most standard Mark IV configurations, this board provides direct form-fit-function replacement capability. Our technical team can assist with cross-referencing your panel’s bill of materials to confirm compatibility prior to procurement.

Q2: How does the DS3800NPSE1E1G support redundant power architectures, and what is the switchover behavior?
In redundant Mark IV configurations, the DS3800NPSE1E1G operates as the primary power supply with a secondary module (typically DS3800NPSB) in hot-standby. The switchover is designed to be bumpless — meaning the transition occurs without a detectable voltage dropout at the backplane bus. This behavior is governed by the panel’s power management logic and requires that both the primary and standby modules are correctly seated and within specification. During commissioning, engineers should verify switchover behavior under load using a calibrated DC voltmeter at the backplane test points. The warranty terms confirmed during quotation covers the DS3800NPSE1E1G’s performance in both primary and standby roles.

Q3: What long-term maintenance considerations apply to the DS3800NPSE1E1G, and how does the warranty terms confirmed during quotation support maintenance planning?
Power supply boards in continuous-duty turbine control applications are subject to capacitor aging, thermal cycling stress, and voltage rail drift over time. Recommended maintenance practice includes periodic voltage rail verification at the backplane test points (annually or per OEM maintenance schedule), visual inspection for capacitor bulging or PCB discoloration, and functional testing during planned outage windows. The warranty terms confirmed during quotation provided with every DS3800NPSE1E1G covers functional defects identified under normal operating conditions, giving maintenance planners a defined warranty period to validate the replacement module’s performance before transitioning it into the long-term asset register. Stocking a verified spare with active warranty coverage is a recognized best practice in turbine fleet maintenance programs.
