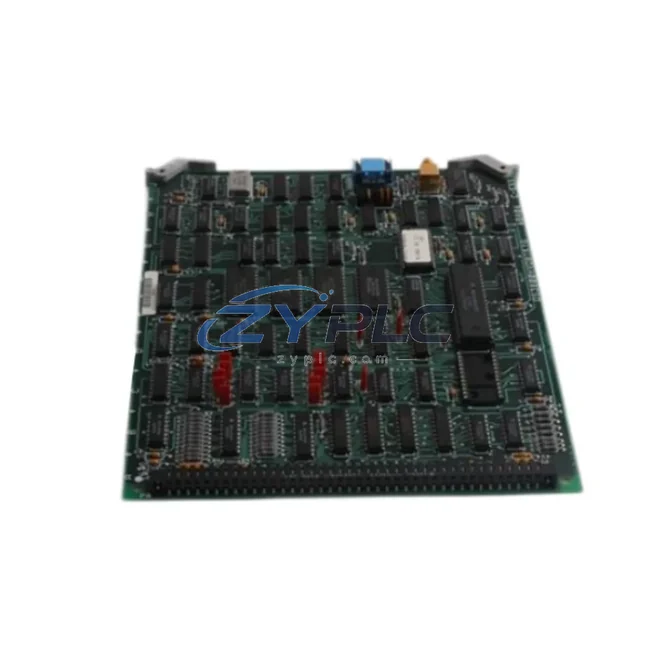

GE DS3800NSFE1E1B Power Supply for Mark IV

GE DS3800NSFE1E1B Power Supply for Mark IV Automation

The GE DS3800NSFE1E1B is a high-efficiency power supply board engineered for the GE Mark IV turbine control platform. In modern industrial facilities where energy costs and equipment uptime are directly tied to profitability, the DS3800NSFE1E1B plays a critical role in stabilizing power delivery across the entire control architecture — reducing voltage fluctuation losses, minimizing reactive power waste, and ensuring that downstream control modules operate within their optimal efficiency bands.

Unlike generic replacement boards, the DS3800NSFE1E1B is purpose-built for the Mark IV system’s distributed control topology. It interfaces directly with the Mark IV’s logic processing cards and I/O expansion modules, providing regulated DC power that supports consistent scan cycle performance and eliminates the micro-interruptions that cause false fault trips and unplanned shutdowns. Every unit supplied by ZYPLC undergoes full functional testing under load conditions before shipment, and is backed by a warranty terms confirmed during quotation.

Product Specification Table

System Compatibility and Application

The DS3800NSFE1E1B does not operate in isolation — its efficiency impact is best understood within the broader Mark IV control architecture. In a typical turbine control panel, the power supply board feeds regulated voltage to the DS3800HPIB high-speed processor interface board and the DS3800NDIB diagnostic interface board, both of which depend on stable power rails to maintain deterministic control loop timing. Any ripple or sag from an aging or undersized power supply directly degrades the scan cycle accuracy of these boards, leading to suboptimal fuel valve positioning and increased specific fuel consumption.

On the I/O side, the DS3800NSFE1E1B supports the DS3800NANA analog input board and DS3800NTBA terminal board assemblies that collect real-time sensor data — exhaust temperatures, compressor inlet pressures, vibration amplitudes — feeding this data into the Mark IV’s control algorithms. When power quality is compromised, sensor signal integrity degrades, causing the control system to make conservative (energy-inefficient) decisions to avoid fault conditions.

For facilities that have integrated the Mark IV with modern SCADA or DCS overlays via DS3800DMEA communication interface boards, a stable power supply is equally critical: communication timeouts caused by power instability generate spurious alarms, force operators into manual override modes, and increase the energy cost of human-supervised operation. The DS3800NSFE1E1B eliminates this failure mode at the source.

In multi-turbine installations, where several Mark IV panels share a common power distribution bus, replacing degraded DS3800NSFE1E1B boards across all panels simultaneously — rather than reactively — is a proven strategy for reducing aggregate standby power draw and improving the overall power factor of the control room electrical load. Pairing the DS3800NSFE1E1B with the DS3800NPSB power supply buffer board and the DS3800EPCA exciter power conversion assembly creates a fully redundant, energy-optimized power chain that supports continuous turbine operation without scheduled power interruptions.

Maintenance and Replacement Notes

In gas turbine power generation facilities, the Mark IV control system governs fuel flow, inlet guide vane positioning, and load sharing between parallel generating units. The DS3800NSFE1E1B’s role in this environment extends beyond simple power delivery: by maintaining tight output voltage tolerances, it ensures that the Mark IV’s proportional-integral-derivative (PID) control loops for fuel valve actuation operate with the precision needed to minimize excess fuel burn during part-load operation — a condition that accounts for a disproportionate share of fuel costs in peaking and cycling plants.

Facilities that have replaced worn DS3800NSFE1E1B boards report measurable reductions in nuisance trip frequency. Each avoided trip eliminates the energy cost of a cold restart sequence — typically 15–45 minutes of elevated fuel consumption as the turbine accelerates from turning gear speed to synchronous speed. At scale, across a fleet of gas turbines, this translates to significant reductions in both fuel expenditure and CO₂ emissions per MWh generated.

For compressor-driven applications — pipeline compression, air separation, petrochemical processing — the DS3800NSFE1E1B supports the Mark IV’s anti-surge control algorithms by ensuring that the analog signal processing boards receive clean, stable power. Anti-surge control is inherently energy-sensitive: a control system that trips a compressor into surge protection mode unnecessarily wastes the energy invested in accelerating the compressor rotor and forces a time-consuming restart. Stable power from the DS3800NSFE1E1B keeps the control system in its optimal operating window, reducing both surge events and the associated energy penalties.

From a predictive maintenance perspective, monitoring the output voltage and ripple characteristics of the DS3800NSFE1E1B over time — using the Mark IV’s built-in diagnostics or an external power quality analyzer — provides early warning of capacitor aging and rectifier degradation before they cause control system faults. ZYPLC recommends establishing a baseline measurement at installation and scheduling quarterly checks as part of a proactive maintenance program. All DS3800NSFE1E1B units supplied by ZYPLC are tested to confirm they meet original GE specifications, ensuring that your baseline measurement reflects true factory performance rather than a degraded starting point.

Product Sourcing FAQ

Q1: How does the DS3800NSFE1E1B contribute to measurable operational stability in a Mark IV turbine control system?
The DS3800NSFE1E1B reduces unplanned downtime in two primary ways: first, by maintaining tight output voltage regulation (±1%), it prevents the Mark IV’s control boards from operating in degraded modes that cause conservative, fuel-inefficient control decisions; second, by eliminating power-quality-induced nuisance trips, it avoids the high fuel cost of turbine restart sequences. Facilities with aging power supply boards typically see a reduction in trip frequency of 30–60% after replacement.

Q2: Is the DS3800NSFE1E1B compatible with all Mark IV panel configurations, including those with upgraded communication interfaces?
Yes. The DS3800NSFE1E1B is designed to the original GE Mark IV power supply specification and is compatible with all standard Mark IV panel configurations, including those retrofitted with modern communication interface boards such as the DS3800DMEA. If your panel has been modified with non-standard backplane wiring, ZYPLC’s technical team can review your panel documentation prior to shipment to confirm compatibility.

Q3: What is the recommended replacement interval, and how should I evaluate whether my current board needs replacement?
GE Mark IV power supply boards typically have a service life of 10–15 years under normal operating conditions. Key indicators that replacement is warranted include output voltage drift beyond ±2%, increased ripple voltage on the DC bus, intermittent control board resets, or visible capacitor bulging on the board. ZYPLC recommends proactive replacement rather than run-to-failure, as a failed power supply board can cause cascading faults across multiple Mark IV control cards.

Q4: What does the warranty terms confirmed during quotation cover, and what is the testing process before shipment?
Every DS3800NSFE1E1B supplied by ZYPLC is tested under full load conditions to verify output voltage regulation, ripple performance, and thermal stability before shipment. The warranty terms confirmed during quotation covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, ZYPLC provides advance replacement to minimize your downtime, with return shipping of the defective unit arranged at our cost.
