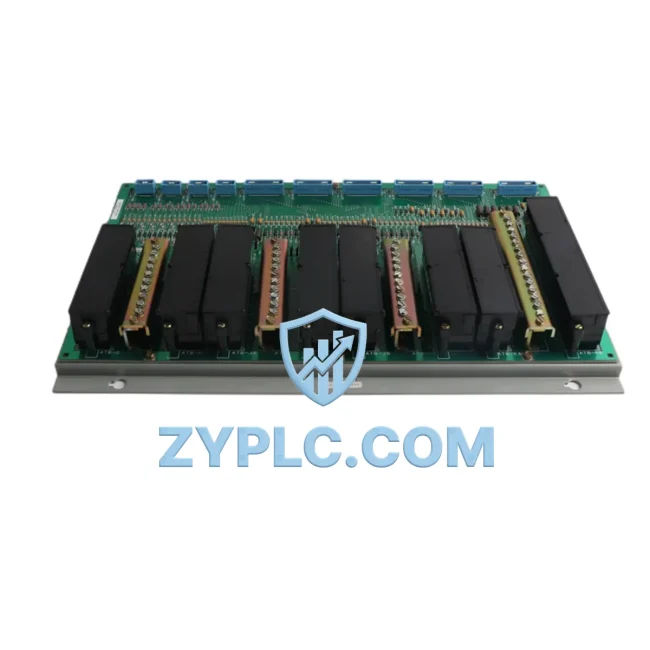

GE DS3820AIQA1A1A Analog I/O Module | Mark V Series

GE DS3820AIQA1A1A: Industrial Data Link for Mark V Speedtronic Automation Networks

The GE DS3820AIQA1A1A is a high-performance Analog I/O Module engineered for the GE Mark V Speedtronic turbine control platform. Designed to serve as a critical data acquisition and signal conditioning node, this module bridges the gap between field instrumentation and the upper-level control architecture — enabling real-time analog signal processing, protocol-transparent data exchange, and seamless integration across distributed control systems (DCS), SCADA platforms, and HMI environments.

In modern smart factory and power generation environments, the DS3820AIQA1A1A functions as the analog backbone of the Mark V control loop. It collects 4–20 mA and voltage-based signals from thermocouples, pressure transmitters, flow sensors, and vibration probes, then conditions and routes that data upstream to the Mark V controller core — where it feeds into turbine protection logic, load control algorithms, and remote monitoring dashboards.

Network Communication Table

Connected Automation Data Flow

The DS3820AIQA1A1A sits at the heart of the Mark V signal chain. Field sensors — including GE Bently Nevada 3500 Series vibration monitors, Rosemount 3051 pressure transmitters, and Yokogawa EJA temperature transmitters — feed analog signals directly into this module’s input channels. The module performs signal isolation, scaling, and A/D conversion before passing structured data to the GE Mark V TCCA Processor Card, which executes turbine protection and sequencing logic in real time.

Within the Mark V rack, the DS3820AIQA1A1A communicates with companion modules such as the DS3820AIQA1B1B and DS3820SLCC1A1A I/O boards via the internal Mark V backplane bus. Upstream, the Mark V controller interfaces with the plant SCADA layer through the GE Mark V HMI Gateway, enabling operators to visualize analog trends, configure alarm thresholds, and execute remote setpoint adjustments from CIMPLICITY or iFIX workstations.

For plants integrating legacy Mark V systems into modern IIoT architectures, the DS3820AIQA1A1A data stream can be bridged to Ethernet-based networks using protocol gateways such as the Moxa MGate MB3480 or Red Lion Data Station Plus, converting Mark V serial data to Modbus TCP or OPC-UA for upstream MES and ERP connectivity. Remote I/O extensions using GE RX3i PACSystems modules can further expand analog channel capacity without replacing the core Mark V platform.

In combined cycle power plants, the DS3820AIQA1A1A works in parallel with GE DS3800HPID PID control boards and DS3820AIQA1C1C redundant analog modules to maintain triple-redundant (TMR) control integrity — a critical requirement for turbine overspeed protection and load shedding events. The analog data collected by this module also feeds into historian platforms such as OSIsoft PI System or GE Proficy Historian, enabling long-term performance trending, predictive maintenance analytics, and regulatory compliance reporting.

Solving Data Isolation in Industrial Sites

Many power generation and heavy industrial facilities face a persistent challenge: aging Mark V Speedtronic systems that operate as data islands, unable to share real-time analog values with modern SCADA platforms, cloud-based monitoring tools, or enterprise asset management systems. The GE DS3820AIQA1A1A directly addresses this by maintaining the analog signal integrity that the Mark V platform depends on — while enabling protocol bridge solutions to unlock that data for broader system integration.

When analog I/O modules fail or degrade, the consequences are immediate: loss of turbine temperature feedback, blind spots in vibration monitoring, and failed alarm annunciation. Replacing the DS3820AIQA1A1A with a verified, pre-tested unit restores full signal chain continuity — eliminating data gaps that compromise both operational safety and production transparency.

For facilities pursuing digital transformation, the DS3820AIQA1A1A serves as the foundation for a phased connectivity upgrade. By maintaining the existing Mark V hardware while adding protocol gateways at the network edge, plant engineers can achieve full SCADA visibility, remote diagnostics, and predictive maintenance capability without the cost and risk of a full DCS replacement. This approach supports production line transparency, reduces unplanned downtime, and enables system expansion as operational requirements evolve.

Every DS3820AIQA1A1A unit supplied by ZYPLC undergoes pre-shipment functional verification, ensuring analog channel accuracy, backplane communication integrity, and compatibility with the target Mark V rack configuration before dispatch.

Industrial Connectivity FAQ

Q1: What communication protocols does the GE DS3820AIQA1A1A support?
The DS3820AIQA1A1A communicates via the GE Mark V internal backplane bus, which uses a proprietary ARCNET-based protocol for inter-module data exchange. For integration with external SCADA or HMI systems, the Mark V platform supports serial RS-232/RS-485 gateway connections, enabling Modbus RTU or proprietary GE communication to upstream monitoring systems. Protocol bridging to Modbus TCP or OPC-UA is achievable via third-party gateways.

Q2: Is the DS3820AIQA1A1A compatible with all Mark V Speedtronic configurations?
Yes. The DS3820AIQA1A1A is designed for use across Mark V TMR (Triple Modular Redundant) and Simplex configurations. It is compatible with TCCA, TCCB, and TCCC processor cards and can be installed in both primary and redundant I/O slots. Compatibility with specific rack revisions should be confirmed against the plant’s Mark V Bill of Materials prior to installation.

Q3: How is network stability and signal integrity ensured during operation?
The DS3820AIQA1A1A incorporates hardware-level signal isolation and filtering to suppress electrical noise common in turbine environments — including high-frequency interference from variable frequency drives (VFDs) and high-voltage switching equipment. The module’s A/D conversion architecture maintains analog accuracy within ±0.1% of full scale, ensuring stable, low-latency data delivery to the Mark V processor even under adverse electrical conditions.

Q4: What warranty and testing standards apply to this module?
All GE DS3820AIQA1A1A units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing — including analog channel verification, backplane communication checks, and visual inspection — to confirm operational readiness before dispatch. Expedited global shipping via DHL and FedEx is available for urgent replacement requirements.
