GE EPSCPE100-ABAA CPU for PACSystems RX3i

GE EPSCPE100-ABAA CPU for PACSystems RX3i: Control Layer Coordination and system integration

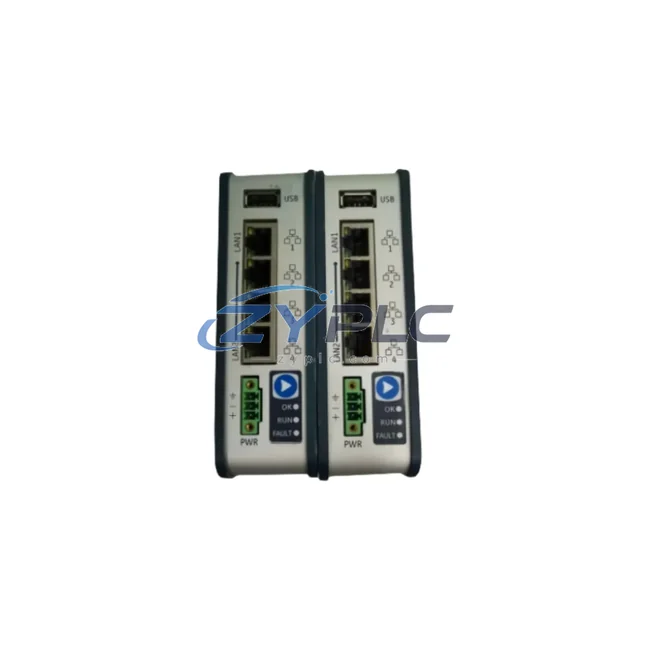

The GE EPSCPE100-ABAA, commercially designated as the EPS CPE100, is a high-performance central processing unit engineered for deployment within GE’s PACSystems RX3i control platform. Rather than functioning as a standalone component, this CPU module is designed from the ground up to serve as the command nucleus of a fully integrated, multi-layer industrial automation architecture. Its role spans real-time program execution, deterministic I/O scanning, multi-protocol communications management, and system-wide diagnostic coordination — making it a foundational element in any RX3i-based control system.

Understanding the EPSCPE100-ABAA requires viewing it not in isolation, but within the broader context of the control hierarchy it governs. From the field device layer through the I/O subsystem, across the backplane bus, up through the network communications layer, and into the supervisory HMI environment, this CPU module maintains coherent, synchronized control across every tier of the automation stack.

Product Specification Table

System Compatibility Notes

The EPSCPE100-ABAA achieves its full operational value when integrated within a complete PACSystems RX3i rack assembly. At the power layer, the IC695PSA040 or IC695PSD040 power supply modules provide stable, regulated DC power to the backplane, ensuring that the CPU and all co-resident modules receive clean, uninterrupted supply voltage — a prerequisite for deterministic scan cycle performance.

Within the same rack, discrete and analog I/O modules such as the IC695MDL740 (16-point 24VDC discrete output) and IC695ALG600 (analog mixed I/O module) connect directly to the CPU via the high-speed RX3i backplane bus, eliminating the latency associated with remote I/O polling for local signal processing. For applications requiring expanded I/O beyond the local rack, the IC695ETM001 Ethernet communications module enables the CPU to manage distributed I/O drops over standard Ethernet infrastructure, supporting EGD and SRTP protocols for high-throughput, low-latency data exchange.

In architectures where network segmentation and protocol bridging are required — such as integrating legacy Genius bus devices or PROFIBUS field instruments — the IC695PBM300 PROFIBUS Master module can be co-installed in the same RX3i backplane, with the EPSCPE100-ABAA managing all inter-module coordination transparently. Similarly, the IC695CMM002 serial communications module extends the system’s reach to RS-232/RS-485 field devices, RTUs, and third-party instrumentation without burdening the CPU’s onboard serial port.

For redundancy-critical applications — common in power generation, water treatment, and continuous process industries — the EPSCPE100-ABAA supports Hot Standby CPU Redundancy when paired with the IC695RMX128 redundancy memory exchange module. In this configuration, a secondary CPU module mirrors the primary’s program state in real time, enabling bumpless switchover in the event of a primary CPU fault. This architecture eliminates single points of failure at the control layer without requiring a complete system redesign.

At the human-machine interface layer, GE’s QuickPanel+ operator panels or third-party SCADA systems communicate with the EPSCPE100-ABAA via Modbus TCP or SRTP over Ethernet, providing operators with real-time process visualization, alarm management, and trend logging. The CPU’s dual Ethernet ports allow simultaneous connection to both the plant network and an isolated control network, supporting defense-in-depth cybersecurity architectures without sacrificing supervisory visibility.

Terminal block modules such as the IC694TBB032 and field wiring accessories complete the physical layer, providing organized, labeled termination points that simplify both initial commissioning and long-term maintenance activities. When combined with GE Proficy Machine Edition’s online diagnostic tools, engineers can perform live program monitoring, force I/O states, and execute controlled fault injection tests without interrupting production — a capability that significantly reduces mean time to repair (MTTR) across the system lifecycle.

Industrial Application Notes

The EPSCPE100-ABAA is deployed across a wide spectrum of industrial verticals, each leveraging the RX3i platform’s combination of processing power, communications flexibility, and environmental robustness.

In power generation and electrical substation automation, the CPU manages protection relay coordination, transformer tap changer control, and breaker sequencing logic, communicating upstream to SCADA systems via DNP3 over Ethernet. Its deterministic scan cycle ensures that protection logic executes within defined time windows, meeting IEC 61850 substation automation requirements when paired with appropriate communications modules.

In petrochemical and refinery process control, the EPSCPE100-ABAA governs continuous process loops — flow, pressure, temperature, and level — through PID function blocks executed in the CPU’s application program. Integration with distributed control system (DCS) architectures is achieved via OPC-UA or Modbus TCP gateways, allowing the RX3i system to function as a subsystem controller within a larger process automation hierarchy.

In municipal water and wastewater treatment, the CPU coordinates pump sequencing, chemical dosing, filtration backwash cycles, and effluent monitoring across geographically distributed lift stations and treatment facilities. Remote I/O drops connected via fiber-optic Ethernet extend the system’s reach to remote field locations while maintaining centralized program control from the EPSCPE100-ABAA.

In mining and mineral processing, the CPU manages conveyor interlocking, crusher sequencing, and ore classification logic in environments characterized by high vibration, dust ingress, and wide temperature variation. The RX3i platform’s industrial-grade construction and conformal coating options ensure reliable operation under these demanding conditions.

In discrete manufacturing and packaging lines, the EPSCPE100-ABAA executes high-speed motion coordination, vision system integration, and recipe management logic, supporting production rates that demand sub-millisecond I/O response times and deterministic program execution.

Product Compatibility FAQ

Q1: Is the EPSCPE100-ABAA compatible with existing RX3i backplanes and I/O modules already installed in my facility?
Yes. The EPSCPE100-ABAA is fully compatible with the RX3i universal backplane family, including the IC695CHS007 (7-slot), IC695CHS012 (12-slot), and IC695CHS016 (16-slot) configurations. All existing RX3i I/O modules, communications modules, and power supplies installed in these backplanes will continue to operate without modification. Program migration from earlier RX3i CPU variants is supported through GE Proficy Machine Edition, typically requiring only a hardware configuration update rather than a full program rewrite.

Q2: Can the EPSCPE100-ABAA be integrated into a redundant control architecture without replacing the entire control panel?
Yes. Hot Standby CPU Redundancy can be implemented by adding a second EPSCPE100-ABAA and an IC695RMX128 redundancy memory exchange module to an adjacent RX3i rack. The redundancy configuration is managed entirely within Proficy Machine Edition’s hardware configuration tool, and the switchover logic is handled transparently by the RX3i platform firmware — no application program changes are required. This allows existing control panels to be upgraded to redundant architectures with minimal downtime and without replacing field wiring or I/O modules.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available during the warranty period?
Every EPSCPE100-ABAA unit supplied by ZYPLC is fully tested prior to shipment, covering functional verification of CPU operation, communications port integrity, backplane interface, and program execution. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. During the warranty period, ZYPLC provides technical support for installation, commissioning, and system integration questions. Replacement units are dispatched promptly to minimize control system downtime. For warranty claims or technical assistance, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
