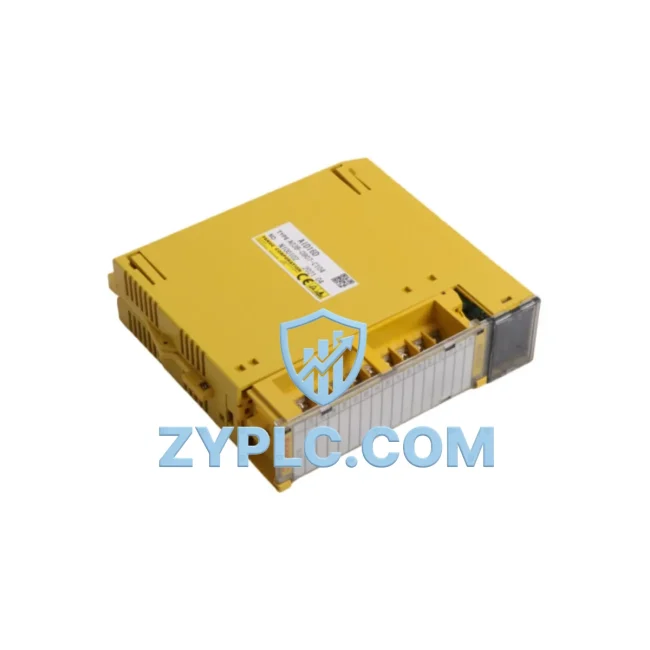

GE Fanuc AID16D A03B-0807-C104 I/O Module Series 90-30

GE Fanuc AID16D A03B-0807-C104: Industrial Data Link for Series 90-30 Smart Factory Systems

The GE Fanuc AID16D (A03B-0807-C104) is a 16-channel analog input I/O module engineered for the GE Fanuc Series 90-30 PLC platform — one of the most widely deployed modular control architectures in discrete manufacturing, process automation, and smart factory environments. Designed to slot directly into the Series 90-30 rack backplane, this module serves as a critical data acquisition node, converting real-world analog signals from field sensors and transmitters into structured digital data that flows seamlessly into the PLC’s CPU, SCADA systems, and HMI displays.

In modern industrial networks, the integrity of the data chain begins at the field level. The AID16D A03B-0807-C104 captures analog inputs — including 4–20 mA current loops and 0–10 V voltage signals — from pressure transmitters, flow meters, temperature sensors, and level transducers installed across the production floor. These signals are digitized at high resolution and transmitted over the Series 90-30 backplane bus to the CPU module, where they are processed in real time by the PLC ladder logic or function block programs. This tight integration between field instrumentation and the control layer is the foundation of any transparent, data-driven manufacturing operation.

Compatibility & Integration Notes

Connected Automation Data Flow

The AID16D A03B-0807-C104 sits at the heart of a layered industrial data architecture. At the field level, analog signals from Yokogawa EJA pressure transmitters, Endress+Hauser Promag flow meters, and Pt100 RTD temperature sensors are wired directly into the module’s input terminals. Once digitized, this process data travels across the Series 90-30 backplane to the GE Fanuc IC693CPU374 CPU module, where control logic executes scan cycles typically under 10 ms, enabling near-real-time closed-loop regulation.

For plant-wide visibility, the CPU communicates upstream via the GE Fanuc IC693CMM321 Ethernet TCP/IP communications module, pushing live process values to iFIX or Proficy HMI/SCADA servers. Operators monitoring the control room HMI — such as a GE Fanuc QuickPanel+ industrial panel PC — receive continuous analog trend data, alarm states, and setpoint deviations without latency. Simultaneously, the IC693CMM302 Genius Bus Controller extends the data network to remote I/O drops on the plant floor, allowing the AID16D’s analog data to be correlated with discrete inputs from GE Fanuc IC693MDL655 digital input modules and outputs from IC693MDL940 relay output modules installed in satellite racks.

Where legacy field devices communicate over Modbus RTU or RS-485, the GE Fanuc IC693CMM311 serial communications module bridges the protocol gap, aggregating data from variable frequency drives — such as ABB ACS880 series inverters — and feeding normalized values back into the PLC data table alongside the AID16D’s analog inputs. This unified data stream is then available for historian logging, OEE calculation, and predictive maintenance analytics at the MES or cloud edge layer.

Solving Data Isolation in Industrial Sites

Many industrial facilities operating Series 90-30 platforms face a common challenge: analog field data exists in isolation, trapped within individual rack modules and inaccessible to plant-wide monitoring systems. The AID16D A03B-0807-C104 directly addresses this by providing a standardized, high-resolution analog input interface that integrates natively with the Series 90-30 CPU’s data table — making every channel’s value immediately available to any networked system that can communicate with the PLC.

Protocol fragmentation is another persistent barrier. A production line may include older Genius I/O networks, newer Ethernet/IP devices, and Modbus-based instruments — all generating data that must be unified before meaningful analysis is possible. By anchoring analog acquisition in the AID16D and routing data through the Series 90-30 CPU’s multi-protocol communication modules, engineers can normalize disparate signal sources into a single coherent dataset. This eliminates data silos between the field layer and SCADA, enabling production transparency, real-time alarming, and remote diagnostics from a centralized platform.

System expansion is equally straightforward. The Series 90-30 rack architecture supports up to 10 I/O slots per base rack, with expansion racks extending capacity further. Adding additional AID16D modules or complementary IC693ALG392 analog output modules requires no changes to the network topology — the backplane bus automatically enumerates new modules during CPU power-up, and Proficy Machine Edition software updates the I/O configuration in minutes. This scalability makes the AID16D A03B-0807-C104 a long-term investment for facilities planning phased automation upgrades.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying channel accuracy, backplane communication integrity, and LED status indication before dispatch. Combined with a 12-month warranty and verified in-stock availability, procurement teams can confidently specify the AID16D for both emergency replacement and planned capital projects.

Industrial Connectivity FAQ

Q1: What communication protocol does the AID16D A03B-0807-C104 use to transfer data to the PLC CPU?
The AID16D communicates via the GE Fanuc Series 90-30 parallel backplane bus. It occupies a standard I/O slot in the IC693 rack and exchanges data with the CPU module through the rack’s internal bus during each PLC scan cycle. No additional network cabling is required between the module and the CPU.

Q2: Can this module integrate with SCADA and HMI systems over Ethernet or Modbus?
Yes — indirectly. The AID16D’s analog data is stored in the CPU’s register table and can be accessed by any communication module installed in the same rack. The IC693CMM321 Ethernet module exposes this data over TCP/IP to SCADA platforms such as Proficy iFIX, Wonderware, or Ignition. Modbus RTU access is available via the IC693CMM311 serial module, enabling integration with third-party HMI panels and data loggers.

Q3: How does ZYPLC ensure network stability and signal accuracy before shipment?
Each AID16D A03B-0807-C104 unit is functionally tested prior to dispatch. Testing covers all 16 analog input channels for signal accuracy, backplane bus communication verification, and LED diagnostic indicator functionality. Units that do not meet GE Fanuc factory specifications are quarantined and not shipped. All units are covered by a 12-month warranty from the date of delivery.

Q4: Is the AID16D compatible with expanded Series 90-30 rack configurations and future system upgrades?
Yes. The AID16D is fully compatible with all standard and expansion IC693 rack configurations, including 5-slot, 10-slot, and remote expansion racks connected via the IC693BEM331 Bus Expansion Module. It is also supported by Proficy Machine Edition programming software, ensuring compatibility with current GE Vernova / Emerson automation toolchains for long-term maintainability.
