GE Fanuc AIF01A Interface for Series 16/18/21 CNC

GE Fanuc AIF01A Interface for Series 16/18/21 CNC

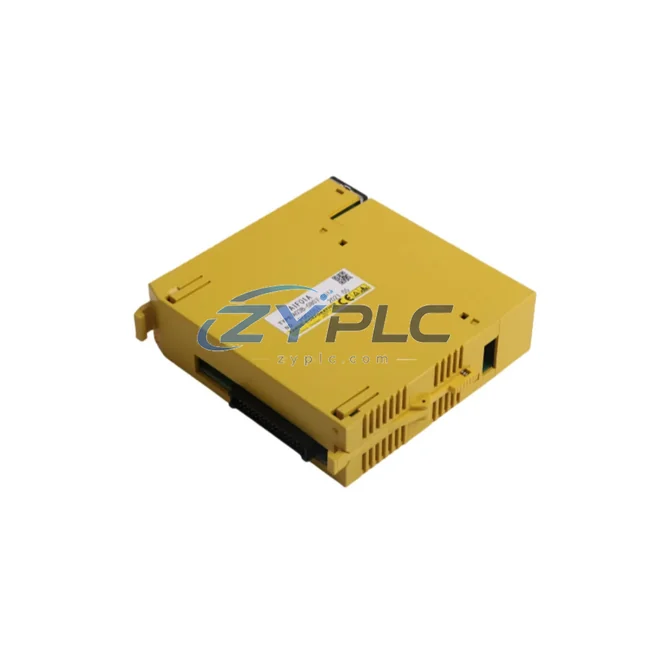

The GE Fanuc AIF01A (Part No. A03B-0807-C011) is a dedicated auxiliary interface module engineered for seamless integration within the GE Fanuc Series 16, Series 18, and Series 21 CNC control architecture. Rather than functioning as a standalone peripheral, the AIF01A occupies a critical position in the layered automation hierarchy — bridging the CNC control layer with downstream I/O expansion, communication gateways, and machine-side execution components. Its role in maintaining signal integrity, reducing inter-module latency, and enabling system integration across the full control stack makes it an indispensable element in both new system builds and long-term maintenance programs.

In modern CNC machining environments, system architects must account for the interaction between every layer of the control platform. The AIF01A supports this requirement by providing a stable, electrically isolated auxiliary interface path that complements the primary CPU module — such as the GE Fanuc A16B-3200-0040 main CPU board — without introducing signal contention or bus loading. This design philosophy ensures that the overall system remains deterministic and predictable under full production load, a requirement that is non-negotiable in high-throughput manufacturing and precision machining applications.

Product Specification Table

System Compatibility Notes

The AIF01A achieves its full value when evaluated within the context of a complete GE Fanuc CNC system rather than as an isolated component. In a typical Series 16 or Series 18 CNC installation, the control rack houses the main CPU board alongside power supply modules such as the A16B-1212-0901 PSU, which provides regulated DC power to all rack-mounted cards including the AIF01A. The auxiliary interface module then coordinates signal routing between the CPU and the machine’s I/O expansion units — commonly the GE Fanuc A03B-0807-C001 I/O module or the A03B-0807-C002 digital output expansion card — ensuring that discrete signals from limit switches, proximity sensors, and solenoid outputs are processed without delay or data loss.

At the communication layer, the AIF01A works in conjunction with the CNC’s serial communication interface, supporting connectivity to operator panels such as the GE Fanuc A02B-0236-C120 MDI/LCD unit and to external devices via RS-232C or RS-422 ports managed by the A20B-8001-0550 communication board. This multi-layer communication architecture enables the machine tool builder to implement a fully integrated human-machine interface layer without requiring additional protocol converters or external gateways.

For systems requiring expanded axis control or spindle management, the AIF01A interfaces cleanly with the GE Fanuc Series 16 axis control cards and the αi-series servo amplifier modules, maintaining the timing relationships required for coordinated multi-axis motion. In redundant or high-availability configurations, the module’s isolated interface paths reduce the risk of a single-point failure propagating across the control bus, supporting the overall system’s mean time between failures (MTBF) targets. Maintenance engineers also benefit from the module’s compatibility with the GE Fanuc LADDER-III diagnostic software environment, which allows real-time signal monitoring and fault tracing without interrupting production.

Industrial Application Notes

The GE Fanuc AIF01A finds application across a broad range of industrial sectors where the Series 16, 18, and 21 CNC platforms are deployed. In precision machining and metalworking facilities, the module supports multi-spindle machining centers and turning centers where auxiliary I/O channels manage tool changers, coolant systems, and workpiece clamping fixtures. The module’s stable backplane interface ensures that these auxiliary functions remain synchronized with the primary motion control loop, preventing cycle interruptions caused by I/O timing errors.

In the power generation and heavy equipment manufacturing sector, CNC systems equipped with the AIF01A are used to machine large structural components such as turbine housings, pump bodies, and valve manifolds. The module’s ability to handle auxiliary signal routing in high-vibration, thermally variable environments — common in foundry-adjacent machining operations — makes it well suited for these demanding applications. Similarly, in the automotive and aerospace supply chain, where process traceability and cycle time consistency are mandatory, the AIF01A contributes to system-level data integrity by ensuring that auxiliary I/O events are logged with the same timestamp accuracy as primary axis motion events.

Water treatment and chemical processing facilities that use CNC-controlled machining equipment for in-house maintenance of pump impellers, valve seats, and pipe fittings also benefit from the AIF01A’s long-term availability and backward compatibility with the Series 16/18/21 platform. Because these facilities typically operate on extended maintenance cycles, the warranty terms confirmed during quotation and verified system integration support provided with each unit reduce the risk associated with unplanned downtime during critical production periods.

Product Compatibility FAQ

Q1: Is the AIF01A A03B-0807-C011 directly interchangeable with other auxiliary interface modules in the Series 16/18/21 rack?
The AIF01A is specifically designed for the Series 16, 18, and 21 CNC backplane architecture. While the physical connector format is shared across several GE Fanuc auxiliary modules, firmware compatibility and signal mapping are platform-specific. Before substituting the AIF01A with an alternative part number, engineers should verify the slot assignment and I/O address mapping in the CNC parameter tables to ensure system integration is maintained without requiring a full system re-parameterization.

Q2: What is the recommended procedure for replacing the AIF01A in a live production environment, and does the warranty terms confirmed during quotation cover installation-related issues?
Replacement should be performed with the CNC control rack powered down and the main circuit breaker locked out. After physical installation, the system should be powered up in diagnostic mode to verify that the auxiliary interface is recognized by the CPU and that all I/O addresses are correctly mapped. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or use outside the specified environmental parameters. Detailed installation guidance is available from ZYPLC’s technical support team.

Q3: How does the AIF01A support long-term maintenance planning for aging Series 16/18/21 CNC systems?
Because the GE Fanuc Series 16, 18, and 21 platforms have been in service for several decades, maintaining a verified inventory of key interface modules such as the AIF01A is a standard practice among maintenance engineers responsible for legacy CNC fleets. The AIF01A’s role in the auxiliary signal path means that its failure can affect multiple machine functions simultaneously, making proactive stock management essential. ZYPLC maintains verified inventory of the A03B-0807-C011 with full functional testing prior to shipment, and each unit is covered by a warranty terms confirmed during quotation to support multi-year maintenance contracts and planned overhaul schedules.
