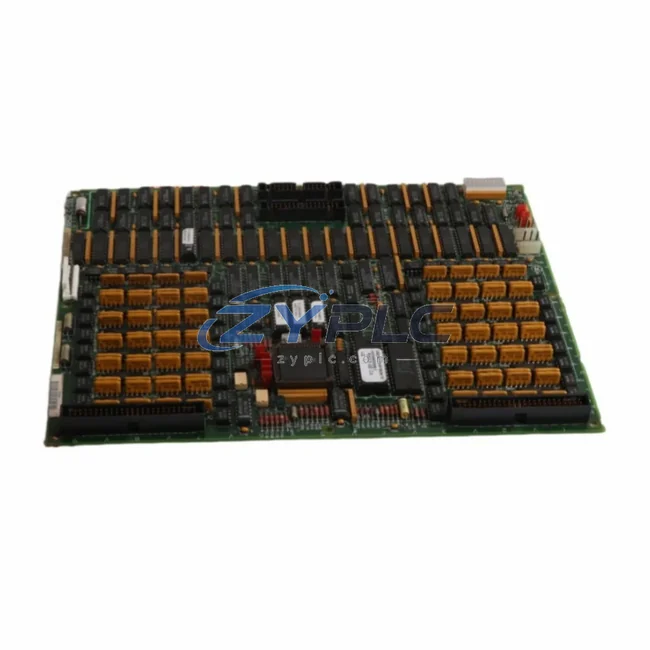

GE Fanuc DS215UCIAG1AZZ05A UCI Module for Series 90

GE Fanuc DS215UCIAG1AZZ05A UCI Module for Series 90 Control System

The GE Fanuc DS215UCIAG1AZZ05A is a Universal Communications Interface (UCI) module engineered for deployment within the GE Series 90-70 programmable logic controller platform. Rather than functioning as a standalone component, this module is designed to serve as a critical communications bridge within a layered industrial automation architecture — connecting the control layer to field devices, remote I/O racks, and supervisory systems with deterministic, high-integrity signal exchange. In complex automation environments spanning manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, and continuous process control, the DS215UCIAG1AZZ05A provides the communications backbone that ensures every layer of the control hierarchy operates in coordinated synchrony.

Modern industrial control systems are not built around individual modules — they are built around architectures. The DS215UCIAG1AZZ05A occupies a defined role within the Series 90-70 rack system, where it works alongside CPU modules such as the IC697CPX935 or IC697CPU772, power supply units including the IC697PWR711 and IC697PWR724, and a full complement of analog and digital I/O modules to form a complete, scalable control node. Its communications capability allows the Series 90-70 rack to interface with remote I/O drops, peer controllers, and SCADA systems — making it indispensable in architectures that demand both horizontal scalability and vertical data transparency.

Product Specification Table

System Compatibility Notes

The DS215UCIAG1AZZ05A achieves its full value when integrated within a complete Series 90-70 control system architecture. At the control layer, it operates in the same rack as high-performance CPU modules such as the IC697CPX935 or IC697CPU772, receiving and transmitting process data across the backplane at deterministic scan rates. The rack itself is powered by redundant-capable power supply modules including the IC697PWR711 or IC697PWR724, ensuring that communications continuity is maintained even during power transient events.

At the I/O layer, the UCI module coordinates with analog input modules such as the IC697ALG440 and digital output modules like the IC697MDL940, enabling the CPU to receive field signals and issue control commands through a unified data highway. For remote I/O expansion — a common requirement in large-scale process plants and distributed manufacturing lines — the DS215UCIAG1AZZ05A interfaces with Genius Bus Controller (GBC) modules and remote I/O drop assemblies, extending the control architecture across physical distances without sacrificing scan time integrity.

At the network layer, the module supports connectivity to supervisory systems via IC697CMM742 Ethernet communications modules and serial gateway devices, enabling real-time data exchange with SCADA platforms, historian servers, and MES systems. For human-machine interface integration, the architecture connects to GE Fanuc QuickPanel or third-party HMI terminals through the communications network, providing operators with live process visualization and alarm management capabilities.

In redundancy-critical applications — such as power substation automation, offshore platform control, or continuous chemical processing — the DS215UCIAG1AZZ05A supports hot-standby CPU configurations where a secondary rack mirrors the primary controller state. The UCI module’s role in maintaining communications synchronization between primary and standby racks is essential to achieving seamless failover without process interruption. Terminal modules and marshalling panels within the control cabinet complete the signal chain, ensuring that field wiring connects cleanly to the I/O layer without introducing noise or grounding issues that could compromise communications integrity.

Industrial Application Notes

In discrete manufacturing environments — automotive assembly, electronics production, and precision machining — the DS215UCIAG1AZZ05A enables the Series 90-70 controller to manage high-speed I/O scanning while simultaneously reporting production metrics to plant-level MES systems. Its communications architecture supports the tight cycle-time requirements of conveyor control, robotic cell coordination, and quality inspection systems.

In power generation and electrical substation applications, the module provides the communications link between protection relay systems, switchgear control panels, and the central SCADA platform. Its ability to operate reliably in electrically noisy environments — characteristic of high-voltage switchyards and generator control rooms — makes it a preferred choice for utilities and independent power producers.

In petrochemical and refinery process control, the DS215UCIAG1AZZ05A supports continuous process loops where communications latency directly affects product quality and safety. Integrated within a Series 90-70 architecture managing distillation columns, heat exchangers, and compressor trains, the module ensures that analog process variables are transmitted to the CPU with the fidelity required for advanced process control (APC) strategies.

In water and wastewater treatment facilities, the module connects distributed pump stations, chemical dosing systems, and filtration controls to a central SCADA system, enabling remote monitoring and automated process adjustment across geographically dispersed infrastructure. In mining and metallurgical operations, it supports the demanding communications requirements of conveyor drive systems, crusher controls, and smelter process automation — environments where equipment reliability and long mean-time-between-failure (MTBF) are non-negotiable operational requirements.

Product Compatibility FAQ

Q1: Is the DS215UCIAG1AZZ05A compatible with all Series 90-70 rack configurations, and can it coexist with other communications modules in the same rack?
Yes. The DS215UCIAG1AZZ05A is designed for the GE Series 90-70 VME-based backplane and can be installed in any available slot within a standard 9-slot or 21-slot Series 90-70 rack. It is fully compatible with coexisting CPU, power, I/O, and other communications modules within the same rack assembly. Slot assignment should follow GE Fanuc’s rack configuration guidelines to ensure proper backplane addressing and avoid I/O map conflicts. When deploying in a multi-rack architecture, ensure that the Genius Bus or Ethernet network topology is configured to recognize the UCI module’s node address prior to commissioning.

Q2: How does this module support redundant architecture designs, and what engineering considerations apply during commissioning?
In hot-standby redundancy configurations, the DS215UCIAG1AZZ05A participates in the communications synchronization between primary and secondary CPU racks. During commissioning, engineers should verify that both racks are running identical firmware revisions and that the UCI module’s communications parameters — baud rate, node address, and protocol selection — are mirrored across both racks. Switchover testing should be performed under simulated load conditions to confirm that communications continuity is maintained during failover. GE Fanuc’s Logicmaster 90 or Proficy Machine Edition programming environment should be used to validate rack configuration and I/O mapping before live commissioning.

Q3: What warranty terms are confirmed during quotation, and how does ZYPLC support long-term maintenance and spare parts availability?
The warranty terms confirmed during quotation covers the full functional integrity of the DS215UCIAG1AZZ05A, including backplane communications performance, module initialization, and protocol operation under normal industrial operating conditions. Each unit is tested prior to shipment to verify operational status. ZYPLC maintains inventory of Series 90-70 platform components — including CPU modules, power supplies, I/O cards, and communications modules — to support long-term maintenance programs and emergency replacement requirements. For planned maintenance shutdowns or spare parts procurement strategies, our engineering team can assist with compatibility verification and system architecture review to ensure that replacement modules integrate seamlessly into your existing control system without requiring reprogramming or reconfiguration.
