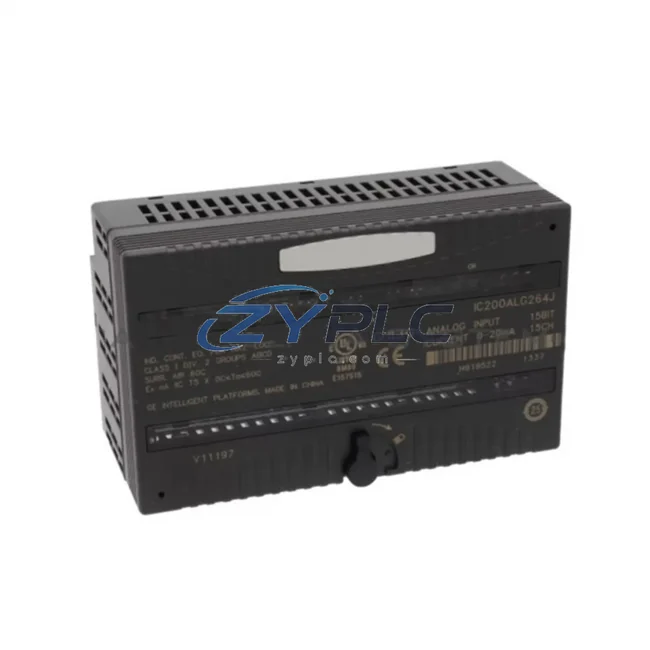

GE Fanuc IC200ALG264 Analog Input for VersaMax

GE Fanuc IC200ALG264: Analog Input for VersaMax

The GE Fanuc IC200ALG264 is a high-density analog input module purpose-built for integration within the VersaMax distributed control platform. Rather than functioning as a standalone component, the IC200ALG264 is engineered to operate as a precision signal acquisition node within a layered automation architecture — bridging field-level instrumentation with the control layer, I/O subsystems, communication networks, and supervisory interfaces. In modern industrial environments where system consistency, scalability, and long-term maintainability are paramount, the IC200ALG264 delivers the signal fidelity and architectural compatibility required for demanding process and discrete control applications.

Deployed across manufacturing, power generation, petrochemical processing, water treatment, mining, metallurgy, packaging lines, and continuous process control systems, this module supports the full signal chain from field transmitters through to CPU-level data processing — enabling engineers to design cohesive, expandable, and redundancy-capable control systems with confidence.

Product Specification Table

System Compatibility Notes

The IC200ALG264 achieves its full value when positioned within a coordinated VersaMax control system. At the CPU layer, it interfaces directly with the IC200CPUE05 or IC200CPU001 VersaMax CPU modules, which execute the ladder logic and function block programs that process the analog data acquired by the IC200ALG264. The CPU communicates with the I/O layer through the VersaMax local bus, ensuring deterministic scan-cycle data exchange with minimal latency.

Power integrity across the system is maintained by the IC200PWR002 or IC200PWR101 power supply modules, which provide regulated 24 VDC to the backplane and all installed I/O modules including the IC200ALG264. For applications requiring redundant power architectures, dual power supply configurations can be implemented to eliminate single points of failure at the power layer.

The IC200ALG264 is mounted on IC200CHS series carriers (such as the IC200CHS002 or IC200CHS014), which define the physical backplane structure and slot assignments within the VersaMax chassis. These carriers support mixed I/O configurations, allowing the IC200ALG264 to coexist with discrete input modules such as the IC200MDL640 (24 VDC discrete input) and discrete output modules such as the IC200MDL740, enabling unified analog and digital signal processing within a single rack.

For distributed architectures where the IC200ALG264 is deployed remotely from the main CPU, the IC200BEM002 Bus Expansion Module or a VersaMax Network Interface Unit (NIU) — such as the IC200PBI001 for PROFIBUS-DP or the IC200ETM001 for Ethernet — provides the communication gateway between the remote I/O drop and the control network. This enables system integration across geographically distributed process areas while maintaining centralized supervisory control.

At the human-machine interface layer, operator stations running GE iFIX SCADA or third-party HMI platforms communicate with the VersaMax CPU via OPC-DA or Ethernet/IP, visualizing the real-time analog values acquired by the IC200ALG264 — including temperature, pressure, flow, and level signals from field transmitters. The IC200ALG264 thus serves as the critical data acquisition bridge between physical process variables and the digital control and visualization layers.

For analog output coordination, the IC200ALG320 or IC200ALG432 analog output modules complement the IC200ALG264 within the same chassis, enabling closed-loop control strategies where analog inputs drive proportional analog outputs to actuators, control valves, and variable frequency drives.

Industrial Application Notes

Manufacturing & Discrete Production Lines: In automotive assembly and electronics manufacturing, the IC200ALG264 acquires analog signals from torque sensors, load cells, and temperature probes, feeding real-time data to the VersaMax CPU for quality control and process adjustment. Its 16-channel density reduces cabinet footprint while maximizing signal coverage across multi-zone production lines.

Power Generation & Electrical Utilities: In power plant auxiliary systems and substation automation, the IC200ALG264 monitors generator output parameters, transformer temperatures, and cooling system pressures. Its optical isolation protects the control system from high-voltage transients common in electrical utility environments, ensuring signal integrity and system longevity.

Petrochemical & Refinery Process Control: In continuous process environments such as distillation columns, heat exchangers, and reactor vessels, the IC200ALG264 interfaces with 4–20 mA transmitters for pressure, temperature, and flow measurement. Its compatibility with the VersaMax NIU enables deployment in hazardous area remote I/O configurations, supporting zone-segregated architectures required by process safety standards.

Water & Wastewater Treatment: Municipal water treatment facilities use the IC200ALG264 to monitor pH, turbidity, dissolved oxygen, and pump discharge pressure across multiple treatment stages. The module’s multi-channel architecture allows a single VersaMax drop to cover an entire treatment process area, reducing wiring complexity and maintenance overhead.

Mining & Metallurgical Processing: In ore processing, conveyor systems, and smelting operations, the IC200ALG264 acquires analog signals from vibration sensors, belt load cells, and furnace temperature probes. Its rugged industrial design and wide operating temperature range ensure reliable operation in the harsh environments typical of mining and metallurgical facilities.

Packaging & Material Handling: High-speed packaging lines rely on the IC200ALG264 for tension control, fill-level monitoring, and servo feedback acquisition. Its fast scan-cycle integration with the VersaMax CPU ensures that analog data is processed within the control loop timing requirements of high-throughput packaging machinery.

Product Compatibility FAQ

Q1: Is the IC200ALG264 compatible with both local and remote VersaMax I/O architectures?
Yes. The IC200ALG264 is fully compatible with both local VersaMax I/O configurations (directly connected to the CPU carrier) and remote I/O drops connected via VersaMax NIU modules (IC200PBI001 for PROFIBUS-DP, IC200ETM001 for Ethernet). This system integration capability allows the module to be deployed across distributed control architectures without hardware modification, supporting system expansion as process areas grow.

Q2: Can the IC200ALG264 be mixed with discrete I/O modules in the same VersaMax chassis?
Yes. The VersaMax platform supports mixed I/O configurations within the same IC200CHS carrier. The IC200ALG264 can be installed alongside discrete input modules (e.g., IC200MDL640) and discrete output modules (e.g., IC200MDL740) in any slot combination, provided the carrier’s power budget is respected. This flexibility enables unified analog and digital signal processing within a single compact chassis, reducing panel space and simplifying system architecture.

Q3: What does the warranty terms confirmed during quotation cover, and how is long-term maintenance supported?
The warranty terms confirmed during quotation covers manufacturing defects, component failures, and functional non-conformance from the date of shipment. During the warranty period, defective units are repaired or replaced at no charge. For long-term maintenance, ZYPLC maintains inventory of IC200ALG264 modules and compatible VersaMax components to support rapid replacement in the event of field failures, minimizing unplanned downtime. Our engineering team also provides pre-shipment functional testing and configuration verification to ensure every module is system-compatible upon arrival.
