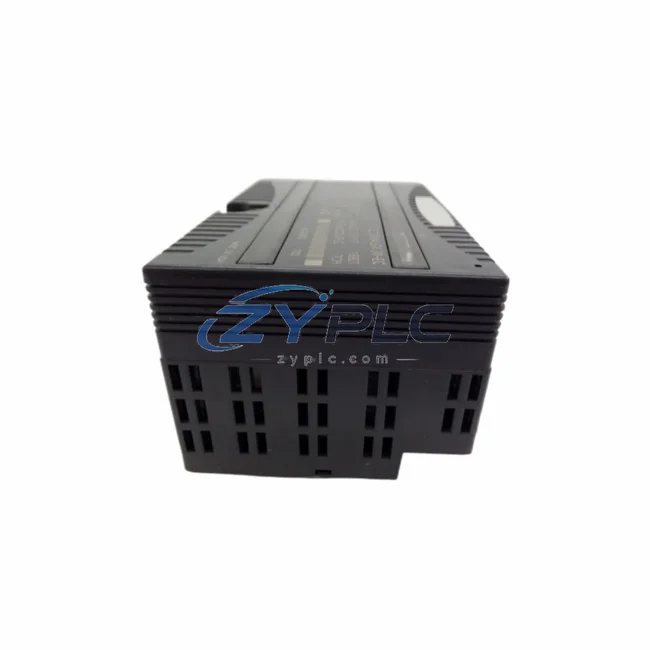

GE Fanuc IC200ALG326 Analog Output for VersaMax

GE Fanuc IC200ALG326 Analog Output for VersaMax: Compatibility and Replacement Notes

The GE Fanuc IC200ALG326 is a 4-channel analog output module purpose-built for the VersaMax distributed I/O platform. Within a layered industrial automation architecture, this module occupies a critical position at the field I/O layer, translating digital control commands from the CPU into precise analog signals that drive final control elements such as variable frequency drives, proportional control valves, and electro-pneumatic positioners. Its role is not simply to output a signal — it is to maintain signal fidelity, timing consistency, and electrical isolation across the full control loop, ensuring that the intent of the control strategy is faithfully executed at the process level.

In a complete VersaMax control system, the IC200ALG326 operates in close coordination with the IC200CPU001 or IC200CPU005 CPU module, which executes the ladder logic or function block programs that generate the analog setpoints. The CPU communicates with the I/O modules through the VersaMax backplane, where the IC200CHS022 or IC200CHS014 carrier provides the physical and electrical interface. The analog output module receives its data over this backplane bus and converts it to a 0–10 VDC or 4–20 mA signal depending on field wiring configuration, providing the downstream actuator with a stable, low-noise reference signal.

At the power layer, the IC200PWR002 or IC200PWR101 power supply module provides regulated 24 VDC to the backplane, ensuring that the analog output circuitry operates within its specified voltage window. Voltage ripple and transient events at the power layer directly affect analog output accuracy, which is why proper power supply selection and grounding practice are essential when deploying the IC200ALG326 in noise-sensitive process environments such as chemical dosing, flow control, or pressure regulation loops.

For distributed architectures where the IC200ALG326 is installed in a remote I/O drop rather than the main rack, the IC200BEM003 Bus Expansion Module or an equivalent remote I/O adapter connects the drop to the main CPU over a serial or Ethernet network. This configuration is common in large-scale manufacturing plants, water treatment facilities, and power distribution substations where field devices are physically separated from the control room. The IC200ALG326 maintains full functionality in these remote configurations, with the CPU polling the module’s output registers at each scan cycle to update the analog setpoints.

At the HMI layer, operator stations running GE’s Proficy HMI/SCADA or third-party SCADA platforms communicate with the CPU via Ethernet or serial protocols, allowing operators to adjust analog output setpoints in real time. The IC200ALG326’s output channels are mapped to specific memory addresses in the CPU’s data table, making them directly accessible from the HMI without additional configuration. This tight integration between the HMI layer and the I/O layer is a defining characteristic of the VersaMax platform’s architecture and simplifies both commissioning and ongoing process optimization.

For applications requiring redundancy, the IC200ALG326 can be deployed in dual-rack configurations where a standby CPU and I/O set mirror the primary system. In the event of a primary module failure, the redundancy controller — typically coordinated through the IC200CPU005 with redundancy firmware — switches control to the standby rack without interrupting the analog output signals. This capability is particularly valuable in continuous process industries such as oil refining, petrochemical production, and power generation, where an unplanned output interruption can trigger costly process upsets or safety system activations.

From an engineering and maintenance perspective, the IC200ALG326 supports in-service diagnostics through the CPU’s fault table. Channel-level fault detection allows maintenance engineers to identify open-circuit conditions, out-of-range outputs, or module health issues without removing the module from service. This reduces mean time to repair and supports predictive maintenance strategies that are increasingly central to modern industrial asset management programs. Spare module availability is a key consideration in long-term maintenance planning, and ZYPLC maintains availability subject to RFQ confirmation of the IC200ALG326 with full functional testing and a warranty terms confirmed during quotation on every unit shipped.

The module’s compact form factor and standard VersaMax carrier compatibility make it straightforward to integrate into both new system builds and retrofit projects where aging analog output modules are being replaced. Engineers upgrading legacy GE Series 90-30 systems to VersaMax architecture will find that the IC200ALG326 provides a direct functional equivalent to older analog output modules, with improved noise immunity and tighter output resolution. Paired with the IC200MDL740 discrete output module and IC200ALG260 analog input module, the IC200ALG326 forms a complete mixed I/O solution for mid-scale process control applications.

Product Specification Table

System Compatibility Notes

The IC200ALG326 achieves its full value when integrated within a coordinated VersaMax system architecture. A typical deployment includes the IC200CPU005 as the primary controller, executing scan-based analog setpoint updates at cycle times as low as 1 ms. The IC200PWR002 power supply provides stable backplane power, while the IC200CHS022 8-slot carrier houses the analog output module alongside discrete I/O modules such as the IC200MDL740 16-point 24 VDC output module. On the input side, the IC200ALG260 4-channel analog input module closes the control loop by feeding process variable signals back to the CPU for PID computation.

For networked architectures, the IC200BEM003 Bus Expansion Module extends the VersaMax I/O bus to remote drops, allowing the IC200ALG326 to be installed close to field devices while maintaining deterministic communication with the main CPU. In Ethernet-connected systems, a VersaMax Ethernet Network Interface Unit (NIU) provides TCP/IP connectivity, enabling integration with plant-level SCADA systems and MES platforms. Terminal modules and marshalling panels using IC200TBM001 terminal blocks provide the field wiring interface, ensuring clean signal routing and simplified maintenance access. Together, these components form a tightly integrated control architecture where the IC200ALG326 serves as the precision analog output backbone.

Industrial Application Notes

The IC200ALG326 is deployed across a wide range of industrial sectors where precise analog output control is essential to process stability and product quality. In water and wastewater treatment facilities, the module drives variable speed pump drives and chemical dosing pump controllers, maintaining flow rates and chemical concentrations within tight regulatory limits. In power generation and distribution substations, it provides setpoint signals to automatic voltage regulators and excitation control systems, supporting grid stability and reactive power management.

In oil and gas processing and petrochemical plants, the IC200ALG326 controls pressure control valves, flow control valves, and temperature controllers in continuous process loops where output stability directly affects product yield and safety system integrity. In metallurgical and mining operations, the module drives furnace temperature controllers, conveyor speed drives, and hydraulic pressure systems, where robust analog output performance under high-EMI conditions is a critical requirement. In packaging and discrete manufacturing lines, the IC200ALG326 provides precise speed references to servo amplifiers and tension controllers, ensuring consistent product quality at high throughput rates. Across all these applications, the module’s compatibility with the VersaMax platform’s system integration architecture allows engineers to deploy, configure, and maintain analog output channels within a unified control system environment.

Product Compatibility FAQ

Q1: Is the IC200ALG326 compatible with both local and remote VersaMax I/O configurations?
Yes. The IC200ALG326 is fully compatible with both local rack configurations — where it is installed in the same carrier as the CPU — and remote I/O drop configurations connected via the IC200BEM003 Bus Expansion Module or a VersaMax Ethernet NIU. In remote configurations, the CPU polls the module’s output registers at each scan cycle, maintaining the same update rate and diagnostic visibility as a local installation. No additional firmware or hardware modification is required to transition between local and remote deployment.

Q2: How does the IC200ALG326 support long-term maintenance and spare parts planning?
The IC200ALG326 uses a standard VersaMax carrier interface, meaning replacement modules can be swapped without rewiring field connections — the terminal block remains in place while only the module body is replaced. ZYPLC maintains availability subject to RFQ confirmation of the IC200ALG326 with full functional testing and a warranty terms confirmed during quotation on every unit, supporting both emergency replacement and planned preventive maintenance programs. Engineers are advised to maintain at least one spare module per active system to minimize mean time to repair in the event of an unexpected module failure.

Q3: What commissioning steps are required when integrating the IC200ALG326 into an existing VersaMax architecture?
Commissioning the IC200ALG326 involves three primary steps: first, configure the module’s I/O map in the VersaMax hardware configuration tool (Proficy Machine Edition or equivalent), assigning the four output channels to specific CPU memory addresses; second, verify backplane power supply voltage at the carrier slot using a calibrated multimeter to confirm the IC200PWR002 or IC200PWR101 is within specification; third, perform a channel-by-channel output calibration check using a loop calibrator or precision multimeter to confirm that the 0–10 VDC or 4–20 mA output range matches the configured engineering unit scaling. Fault table monitoring during initial power-up will confirm module health before the system is placed in automatic control mode.
