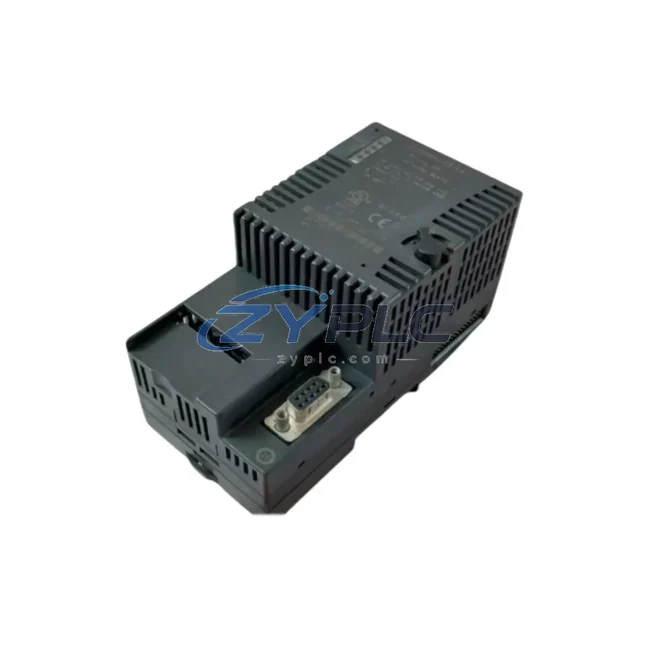

The GE Fanuc IC200BEM002 is a Network Slave Module engineered for deployment within the VersaMax distributed I/O platform, a modular, rack-based control architecture widely adopted across manufacturing, power generation, petrochemical processing, water treatment, and heavy industrial environments. Rather than functioning as a standalone component, the IC200BEM002 is designed to operate as an integral node within a layered automation system — bridging the field-level I/O layer with the control and communication layers above it, and enabling seamless data exchange between remote I/O stations and the central PLC controller.

In a complete VersaMax control architecture, the IC200BEM002 serves as the network interface for a remote I/O carrier assembly. It connects the local I/O modules — including discrete input modules such as the IC200MDL640, discrete output modules such as the IC200MDL740, and analog signal modules such as the IC200ALG260 — to the fieldbus network managed by the master controller. This architecture allows engineers to distribute I/O across large plant footprints without running individual signal cables back to a central panel, dramatically reducing installation complexity, wiring costs, and long-term maintenance burden.

The IC200BEM002 is compatible with the VersaMax carrier system, mounting directly onto standard VersaMax I/O carriers such as the IC200CHS002 or IC200CHS022, which support multiple I/O module slots per station. The module draws its configuration and addressing from the network master — typically a GE Fanuc Series 90-30 CPU such as the IC693CPU374 or a PACSystems RX3i controller — which manages the scan cycle, I/O mapping, and fault diagnostics across all connected slave nodes. This master-slave architecture ensures deterministic communication timing, which is critical in process control and motion-coordinated applications.

From a system architecture perspective, the IC200BEM002 occupies the I/O layer of the automation hierarchy. Above it, the control layer is managed by the PLC CPU and its associated power supply — such as the IC200PWR002 — which provides regulated DC power to the local backplane. The communication layer is handled by the fieldbus network, which may operate over Profibus-DP, DeviceNet, or Genius Bus depending on the system configuration. The IC200BEM002 acts as the slave endpoint on this network, receiving output data from the master and returning input data on each scan cycle. This bidirectional, real-time data exchange is the foundation of distributed control system design.

In redundant system architectures, the IC200BEM002 can be deployed in configurations where dual network paths or redundant master controllers provide failover capability. When paired with a redundant CPU module and a managed industrial Ethernet switch or fieldbus repeater, the overall system achieves the fault tolerance required for critical infrastructure applications such as substation automation, pipeline SCADA, and continuous process control. The module’s compact form factor and standardized carrier mounting also simplify hot-swap maintenance procedures, allowing field technicians to replace a faulty slave module without shutting down the entire I/O station.

For HMI integration, the IC200BEM002-connected I/O data is made available to operator interface terminals — such as GE Fanuc QuickPanel or third-party SCADA systems — through the master PLC’s data table. Tag-based addressing in the HMI software maps directly to the I/O module channels managed by the slave node, enabling real-time visualization of field signals, alarm management, and trend logging without additional hardware. This tight integration between the I/O layer and the HMI layer is a key advantage of the VersaMax architecture’s system integration design philosophy.

Engineering teams working on system commissioning benefit from the IC200BEM002’s compatibility with GE Fanuc’s Proficy Machine Edition programming environment, which provides online diagnostics, I/O forcing, and module status monitoring. During startup, the master controller automatically detects the slave node and verifies its configuration against the expected I/O map, flagging any mismatches as faults. This self-diagnostic capability reduces commissioning time and simplifies troubleshooting during both initial installation and ongoing maintenance cycles.

Long-term supply chain reliability is a critical consideration for industrial control system operators. ZYPLC maintains availability subject to RFQ confirmation of the IC200BEM002 alongside complementary VersaMax components, ensuring that replacement modules are available for both planned maintenance and emergency repair scenarios. All units supplied by ZYPLC are covered by a warranty terms confirmed during quotation, providing assurance of module integrity and operational readiness from the date of delivery.

Product Specification Table

System Compatibility Notes

The IC200BEM002 achieves its full operational value when integrated within a coordinated VersaMax control system. A typical architecture begins with a GE Fanuc PACSystems RX3i or Series 90-30 CPU — such as the IC693CPU374 — as the network master, housed in a main control panel alongside the IC200PWR002 power supply module. The master CPU manages the fieldbus scan and communicates with one or more IC200BEM002 slave nodes distributed across the plant floor.

Each slave station is assembled on a VersaMax carrier such as the IC200CHS022, populated with application-specific I/O modules: the IC200MDL640 for 24VDC discrete inputs from field sensors and limit switches, the IC200MDL740 for discrete output control of solenoids and motor starters, and the IC200ALG260 for 4–20mA analog signal acquisition from pressure transmitters and flow meters. Terminal block modules such as the IC200TBM002 provide the field wiring interface, ensuring clean, labeled connections between the I/O modules and field devices.

For applications requiring network-level communication beyond the fieldbus, a communication gateway module — such as the IC693CMM321 for Ethernet or the IC693CMM311 for serial communications — can be integrated at the master controller level, enabling the VersaMax system to exchange data with SCADA servers, MES platforms, and historian databases over standard industrial protocols including Modbus TCP and EtherNet/IP.

Industrial Application Notes

The IC200BEM002 is deployed across a wide range of industrial sectors where distributed I/O architecture is essential for operational efficiency and system reliability. In manufacturing and assembly lines, the module enables remote I/O stations at each production cell, reducing panel space and simplifying machine-level wiring while maintaining centralized PLC control. In power generation and substation automation, the VersaMax slave architecture supports the high-reliability, deterministic communication required for protection relay interfacing and switchgear control. In petrochemical and refinery applications, the module’s industrial-grade environmental ratings allow deployment in harsh environments where temperature variation, vibration, and electromagnetic interference are constant challenges. In water and wastewater treatment, the IC200BEM002 supports distributed pump station control, with each remote I/O station managing local instrumentation while reporting to a central SCADA system. In mining and metallurgical processing, the module’s robust carrier-based design withstands the mechanical stress of conveyor control and crusher automation applications.

Product Compatibility FAQ

Q1: Is the IC200BEM002 compatible with both Series 90-30 and PACSystems RX3i master controllers?
Yes. The IC200BEM002 is designed for the VersaMax distributed I/O platform, which is supported as a remote I/O subsystem by both the GE Fanuc Series 90-30 CPU family (including the IC693CPU374) and the PACSystems RX3i platform. The master controller manages the network scan and I/O mapping; the slave module operates transparently within the configured network topology. Verify the specific fieldbus protocol (Genius Bus, Profibus-DP, or DeviceNet) supported by your master’s communication module before deployment.

Q2: Can the IC200BEM002 be replaced in the field without a full system shutdown?
In most VersaMax architectures, the slave module can be replaced at the carrier level with minimal disruption. The master controller will detect the node absence and log a fault; once the replacement module is installed and the network re-scans, normal operation resumes. For critical processes, it is recommended to implement a maintenance window or use a redundant network path to maintain I/O availability during the swap. ZYPLC’s warranty terms confirmed during quotation covers the replacement unit from the date of delivery, ensuring continuity of supply for maintenance operations.
