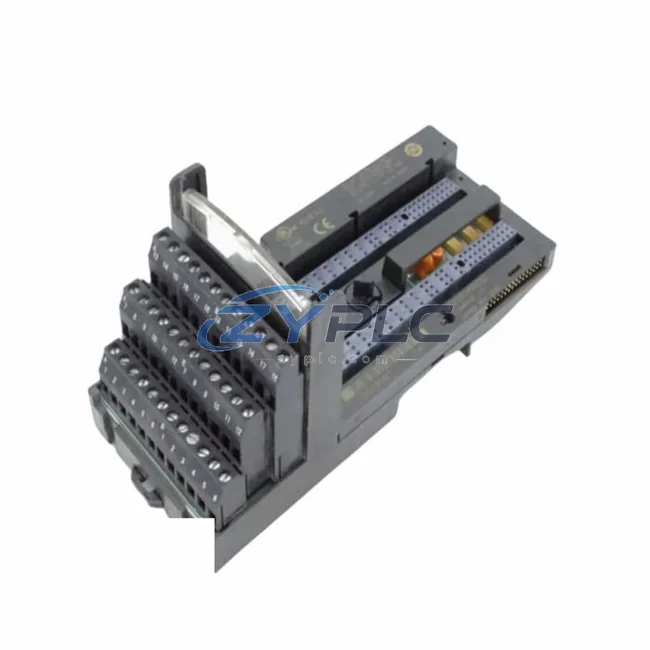

GE Fanuc IC200CHS0022 I/O Carrier for VersaMax

GE Fanuc IC200CHS0022: Modular I/O Carrier for Industrial Data Link and Smart Factory Connectivity

In modern industrial automation, the integrity of the data link between field devices and control systems determines the efficiency, reliability, and scalability of the entire production architecture. The GE Fanuc IC200CHS0022 VersaMax Modular I/O Carrier is engineered to serve as the structural backbone of distributed I/O expansion within GE Fanuc’s VersaMax control platform — enabling seamless signal acquisition, protocol-consistent data transmission, and real-time monitoring across layered automation environments.

As manufacturing facilities transition toward smart factory models, the demand for modular, scalable, and network-transparent I/O infrastructure has never been greater. The IC200CHS0022 addresses this demand by providing a robust carrier platform that supports multiple I/O modules in a compact DIN-rail-mounted form factor, ensuring that field-level signals from sensors, actuators, and process instruments are reliably captured and forwarded through the control network without data isolation or communication bottlenecks.

Compatibility & Integration Notes

Connected Automation Data Flow

The IC200CHS0022 operates at the I/O layer of a multi-tier automation architecture, where its role is to aggregate field-level signals and present them to the control layer in a structured, protocol-consistent format. In a typical VersaMax deployment, the carrier hosts a combination of discrete and analog I/O modules — such as the IC200MDL640 16-point 24VDC discrete input module and the IC200ALG260 analog output module — which together handle the full range of process signals from temperature transmitters, pressure sensors, flow meters, and motor feedback circuits.

At the network interface level, the IC200CHS0022 connects to the control backbone through a VersaMax Network Interface Unit (NIU), such as the IC200PBI001 Profibus-DP NIU or the IC200EBI001 Ethernet/IP NIU, which translates the backplane I/O data into standard industrial fieldbus or Ethernet packets. This protocol conversion capability is critical in heterogeneous plant environments where legacy Genius Bus devices must coexist with modern Ethernet-based SCADA systems.

The data collected at the IC200CHS0022 carrier level flows upward through the network interface to the primary PLC controller — typically a GE Fanuc PACSystems RX3i CPU315 or a Series 90-30 CPU374 — where it is processed against control logic and forwarded to the SCADA/HMI layer. HMI terminals such as the GE Fanuc QuickPanel+ IC755CSS10CDB display real-time process values, alarm states, and trend data sourced directly from the I/O modules mounted on the IC200CHS0022 carrier, enabling operators to monitor distributed field nodes from a centralized interface without communication delay.

For drive and motion control integration, the IC200CHS0022 supports signal routing to GE Fanuc AF-300E Series variable frequency drives, where speed reference and feedback signals are exchanged through the I/O carrier’s analog modules. This tight integration between the carrier, the drive, and the PLC controller ensures that motor control loops remain closed and responsive, even in high-cycle manufacturing environments such as packaging lines, conveyor systems, and press automation.

In remote I/O applications — common in water treatment plants, substations, and oil and gas facilities — the IC200CHS0022 is deployed as a distributed node connected to the main control room via Profibus-DP or Ethernet/IP. The carrier’s modular design allows field engineers to add or replace I/O modules without interrupting the network, supporting hot-swap maintenance strategies that minimize unplanned downtime. Edge gateway devices, such as industrial protocol converters supporting Modbus RTU to Ethernet/IP translation, can be integrated alongside the VersaMax NIU to extend connectivity to legacy field instruments that do not natively support modern fieldbus protocols.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, control systems, and enterprise networks operate in silos, preventing real-time visibility and coordinated decision-making. The IC200CHS0022, as part of the VersaMax modular I/O ecosystem, directly addresses this challenge by providing a standardized, expandable carrier platform that integrates seamlessly with both legacy GE Fanuc control architectures and modern Ethernet-based SCADA and MES systems.

In facilities where multiple generations of control equipment coexist — Series 90-30 PLCs alongside PACSystems RX3i controllers, Genius Bus field devices alongside Profibus-DP networks — the IC200CHS0022 carrier, combined with the appropriate NIU, acts as a protocol bridge that unifies disparate data streams into a single, coherent network topology. This eliminates the need for standalone protocol converters or custom wiring solutions, reducing both installation complexity and long-term maintenance overhead.

For production line transparency, the IC200CHS0022 enables granular I/O mapping that allows SCADA systems to access individual channel data from every module on the carrier. This level of visibility supports predictive maintenance strategies, where abnormal signal patterns — such as a drifting analog input from a worn pressure transmitter — can be detected and flagged before they escalate into process failures. Remote diagnostic capabilities, accessible through the VersaMax NIU’s network interface, allow maintenance engineers to interrogate I/O module status, check channel health, and verify wiring continuity without physical access to the control cabinet.

System expansion is equally straightforward: additional IC200CHS0022 carriers can be added to the VersaMax network as production capacity grows, with each new carrier automatically recognized by the PLC controller through the NIU’s auto-configuration feature. This plug-and-expand architecture supports phased capital investment strategies, allowing plant managers to scale I/O capacity in line with production demand rather than over-provisioning at initial installation.

Industrial Connectivity FAQ

Q1: Does the IC200CHS0022 support Ethernet/IP and Profibus-DP communication simultaneously?
The IC200CHS0022 carrier itself is a passive backplane structure; network protocol support is determined by the Network Interface Unit (NIU) connected to the carrier. A single NIU supports one primary fieldbus protocol (e.g., Profibus-DP via IC200PBI001 or Ethernet/IP via IC200EBI001). For multi-protocol environments, separate VersaMax nodes with dedicated NIUs are recommended, each hosting an IC200CHS0022 carrier with the appropriate I/O modules for that network segment.

Q2: Is the IC200CHS0022 compatible with PACSystems RX3i and Series 90-30 controllers?
Yes. The IC200CHS0022 is fully compatible with the GE Fanuc VersaMax platform, which interfaces with both PACSystems RX3i and Series 90-30 controllers through the VersaMax NIU. The NIU handles all protocol translation between the VersaMax backplane and the PLC’s I/O bus, ensuring transparent data exchange regardless of the host controller generation. Compatibility should be verified against the specific NIU firmware version and PLC CPU revision for optimal performance.

Q3: What testing is performed before shipment, and what does the warranty terms confirmed during quotation cover?
Every IC200CHS0022 unit undergoes full functional testing prior to shipment, including backplane continuity verification, module slot integrity checks, and communication interface validation. The warranty terms confirmed during quotation covers manufacturing defects, component failures, and communication faults that arise under normal operating conditions. Units that develop faults within the warranty period are repaired or replaced at no charge. Our technical support team is available to assist with installation, configuration, and troubleshooting throughout the warranty period.

Q4: Can the IC200CHS0022 be used in hazardous or high-vibration industrial environments?
The IC200CHS0022 is rated for standard industrial environments with an operating temperature range of 0°C to 60°C and is designed for DIN rail or panel mounting in control cabinets. For hazardous area applications (e.g., ATEX Zone 2 or Class I Division 2), appropriate enclosure ratings and intrinsic safety barriers must be applied at the system level. In high-vibration environments such as mining or heavy press applications, additional mechanical securing of the carrier and connected modules is recommended to maintain backplane contact integrity over extended service periods.
