GE Fanuc IC200CHS022 Carrier Housing for VersaMax

GE Fanuc IC200CHS022 Carrier Housing for VersaMax

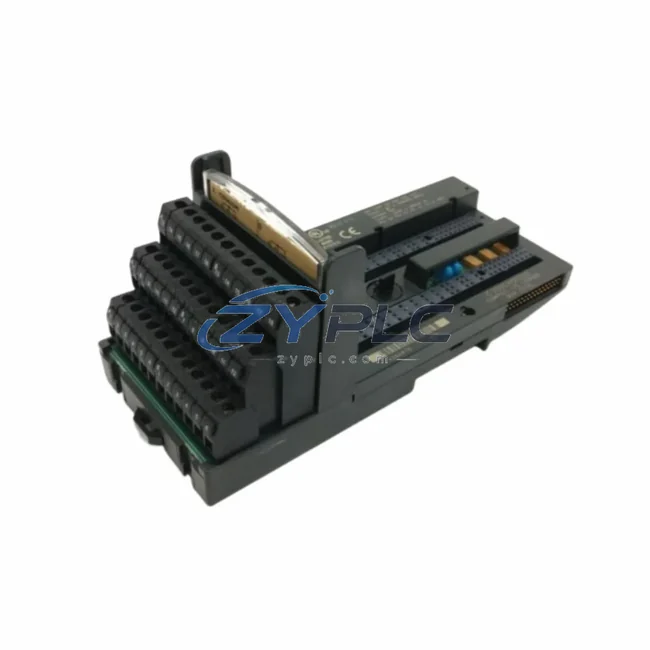

The GE Fanuc IC200CHS022 is a compact carrier housing module engineered for seamless integration within the VersaMax distributed I/O and control architecture. Designed to serve as the structural and electrical backbone of a modular control node, the IC200CHS022 provides the mechanical mounting and backplane connectivity required to host I/O modules, power supplies, and communication interfaces within a unified control cabinet assembly. Rather than functioning as a standalone component, this carrier housing is the foundation upon which a complete, scalable automation system is constructed — enabling engineers to deploy consistent, maintainable, and expandable control nodes across multi-zone industrial environments.

In a layered automation architecture, the IC200CHS022 occupies a critical position at the I/O layer, bridging the control layer — typically managed by a VersaMax CPU such as the IC200CPUE05 or IC200CPUE05-AE — and the field device layer where sensors, actuators, and drive systems connect. The carrier housing ensures that all hosted modules share a common backplane bus, enabling deterministic signal routing between digital and analog I/O modules and the CPU without the latency or wiring complexity associated with discrete terminal block installations. This backplane-level integration is essential for maintaining signal integrity in high-density process environments such as petrochemical plants, water treatment facilities, and continuous manufacturing lines.

From a system architecture perspective, the IC200CHS022 is typically deployed alongside the IC200PWR002 or IC200PWR101 power supply modules, which provide regulated 24VDC backplane power to all hosted I/O modules. The carrier housing’s slot configuration supports a range of VersaMax I/O modules including the IC200MDL640 discrete input module, IC200MDL740 discrete output module, and IC200ALG260 analog input module, allowing engineers to tailor each control node to the specific signal requirements of the process zone it serves. This modularity eliminates the need for custom wiring harnesses and reduces commissioning time significantly on large-scale projects.

At the network layer, the IC200CHS022 carrier housing supports the installation of VersaMax communication interface modules such as the IC200BEM002 Profibus DP slave module or the IC200ETM001 Ethernet TCP/IP interface, enabling the control node to participate in plant-wide SCADA networks, DCS integration schemes, or peer-to-peer PLC communication topologies. This network-layer flexibility is particularly valuable in hybrid automation environments where legacy serial protocols must coexist with modern Ethernet-based supervisory systems. The carrier housing’s mechanical design ensures that communication modules are securely seated and electrically isolated from high-current I/O circuits, reducing the risk of signal interference in electrically noisy industrial environments.

For redundancy-critical applications — such as power generation, oil and gas processing, or pharmaceutical manufacturing — the IC200CHS022 can be deployed in paired configurations where redundant control nodes monitor identical process zones. In conjunction with the VersaMax redundancy CPU modules and the IC200CHS014 expansion carrier, engineers can construct fault-tolerant architectures that maintain process continuity even in the event of a single module failure. The carrier housing’s tool-free module insertion and extraction design further supports hot-swap maintenance procedures, minimizing planned and unplanned downtime during module replacement cycles.

The IC200CHS022 is also compatible with the VersaMax Nano and Micro CPU families, making it a versatile carrier solution for both standalone machine control applications and distributed I/O expansion nodes within larger GE PACSystems RX3i or RX7i architectures. When used as a remote I/O drop connected via the IC200BEM003 Genius Bus Interface Unit, the carrier housing enables cost-effective field-level I/O expansion without requiring additional CPU resources at the remote node — a common design pattern in large-footprint process plants where control cabinets must be distributed across multiple physical locations.

From a long-term maintenance and lifecycle management perspective, the IC200CHS022 offers significant advantages over proprietary fixed I/O controllers. Individual I/O modules can be replaced without disturbing adjacent modules or rewiring field terminals, and the carrier housing itself has no active electronic components, resulting in an extremely low inherent failure rate. Spare module inventory strategies are simplified because a single carrier housing type supports a wide range of I/O module configurations, reducing the number of unique spare part numbers that maintenance teams must stock. All units supplied by ZYPLC are tested prior to shipment and covered by a warranty terms confirmed during quotation, ensuring that replacement modules perform to GE Fanuc factory specifications from the moment they are installed.

Product Specification Table

System Compatibility Notes

The IC200CHS022 achieves its full architectural value when integrated with a coordinated set of VersaMax system components. A typical control node built around this carrier housing incorporates the IC200CPUE05 CPU module for local program execution, the IC200PWR002 power supply for backplane power distribution, and a combination of IC200MDL640 discrete input and IC200MDL740 discrete output modules for field signal interfacing. Analog process variables are handled by the IC200ALG260 analog input module, while the IC200ALG320 analog output module provides 4–20mA control signals to variable frequency drives and control valves.

Network connectivity is established through the IC200ETM001 Ethernet TCP/IP interface module, enabling the control node to communicate with plant-level SCADA systems and engineering workstations running Proficy Machine Edition. For Profibus DP networks, the IC200BEM002 slave interface module integrates the VersaMax node into existing fieldbus topologies without requiring protocol conversion gateways. In expansion configurations, the IC200CHS014 expansion carrier extends the I/O capacity of the node, while the IC200BEM003 Genius Bus Interface Unit enables the carrier housing to function as a remote I/O drop on a Genius Bus network — a common architecture in legacy GE process control installations that are being modernized incrementally.

Industrial Application Notes

The IC200CHS022 carrier housing is deployed across a broad range of industrial automation sectors. In discrete manufacturing environments such as automotive assembly and electronics production, the carrier housing forms the I/O node backbone for machine-level control systems, hosting the digital I/O modules that interface with proximity sensors, solenoid valves, and servo drive enable signals. In process industries including petrochemical refining and specialty chemical production, the carrier housing supports analog I/O modules that monitor temperature, pressure, flow, and level transmitters, providing the process data required for closed-loop PID control executed by the VersaMax CPU.

In water and wastewater treatment facilities, the IC200CHS022 is commonly deployed in distributed pump station control panels, where its compact form factor and DIN rail mounting simplify installation in space-constrained enclosures. Power generation and utilities applications leverage the carrier housing’s compatibility with redundant CPU configurations to achieve the high-availability control architectures required for generator excitation control, switchgear automation, and substation protection systems. In mining and metals processing, the carrier housing’s robust operating temperature range and vibration tolerance make it suitable for crusher control, conveyor automation, and furnace temperature regulation systems where environmental conditions are demanding.

Product Compatibility FAQ

Q1: Is the IC200CHS022 compatible with both VersaMax Nano/Micro CPUs and standard VersaMax I/O systems?
Yes. The IC200CHS022 carrier housing is designed to support the full VersaMax product family, including Nano and Micro CPU configurations for standalone machine control as well as standard VersaMax I/O expansion nodes used in distributed control architectures. When used as a remote I/O drop, the carrier housing connects to the main control system via the IC200BEM003 Genius Bus Interface Unit or the IC200ETM001 Ethernet interface, depending on the network topology of the installation.

Q2: Can I replace individual I/O modules in the IC200CHS022 without shutting down the entire control node?
The IC200CHS022 supports tool-free module insertion and extraction, and GE Fanuc VersaMax I/O modules are designed for hot-swap replacement in systems where the CPU and power supply remain operational. However, the specific hot-swap behavior depends on the CPU firmware version and the I/O module type. It is recommended to consult the VersaMax System User’s Manual and verify hot-swap support for each module type before performing live maintenance. All replacement modules supplied by ZYPLC are pre-tested and covered by a warranty terms confirmed during quotation to ensure immediate operational readiness.

Q3: What is the recommended spare parts strategy for long-term maintenance of systems built around the IC200CHS022?
For long-term system maintainability, it is recommended to maintain a minimum of one spare IC200CHS022 carrier housing per control architecture tier, along with spare units of the most frequently used I/O modules — typically the IC200MDL640 discrete input and IC200MDL740 discrete output modules. Because the carrier housing itself contains no active electronic components, its failure rate is extremely low, and a single spare unit is typically sufficient for most installations. ZYPLC supports RFQ sourcing for IC200CHS022 and associated VersaMax modules with a warranty terms confirmed during quotation on all supplied units, supporting both emergency replacement and planned maintenance programs.
