GE Fanuc IC200CHS022L I/O Carrier for VersaMax

GE Fanuc IC200CHS022L I/O Carrier for VersaMax: Compatibility and Replacement Notes

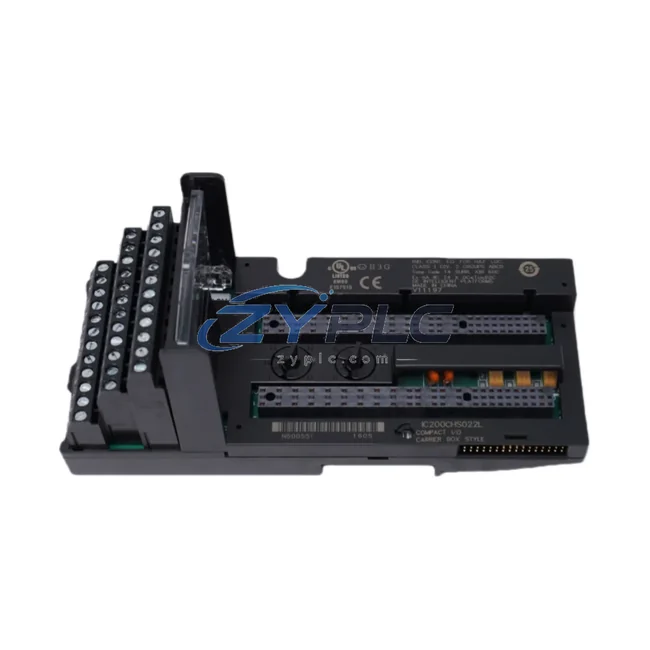

The GE Fanuc IC200CHS022L is a dedicated I/O carrier module engineered for deployment within the VersaMax distributed I/O platform — one of GE Fanuc’s most widely adopted modular control architectures in industrial automation. Rather than functioning as a standalone component, the IC200CHS022L is designed to serve as a structural backbone within a layered control system, providing the physical and electrical interface between I/O modules and the system backplane. Its role spans the I/O layer and the field signal layer, making it a critical element in any VersaMax-based control cabinet or remote I/O station.

In a complete VersaMax control architecture, the IC200CHS022L carrier works in close coordination with the CPU module — typically a unit such as the IC200CPUE05 or IC200CPUE05D — which handles program execution and scan cycle management. The carrier provides the physical mounting and bus connectivity for discrete and analog I/O modules, ensuring that field signals are reliably routed to the CPU for processing. This tight integration between the carrier and the CPU layer is fundamental to maintaining system scan consistency and deterministic response times in demanding process environments.

Product Specification Table

System Compatibility Notes

The IC200CHS022L achieves its full value when integrated into a complete VersaMax system architecture. At the CPU layer, the carrier interfaces with GE Fanuc CPU heads such as the IC200CPUE05 or IC200CPUE05D, which execute ladder logic and function block programs while managing I/O scan cycles. The carrier’s backplane bus ensures that all mounted I/O modules — whether discrete input modules like the IC200MDL640 or analog output modules like the IC200ALG320 — are polled consistently within each scan cycle.

Power distribution within the VersaMax system is managed by dedicated power supply modules such as the IC200PWR002, which provides regulated 24VDC to the carrier and all installed I/O modules. The IC200CHS022L is designed to accept this power input without additional conditioning, simplifying cabinet wiring and reducing the risk of ground loop interference in electrically noisy environments such as motor control centers or high-voltage switchgear panels.

For distributed I/O applications, the IC200CHS022L can be deployed as a remote carrier node, connected to the main CPU rack via a Network Interface Unit (NIU) such as the IC200PBI001 for Profibus DP networks or the IC200BEM002 for DeviceNet topologies. This architecture allows engineers to place I/O carriers close to field devices — reducing cable runs, improving signal integrity, and enabling modular expansion without redesigning the central control cabinet. In Ethernet-based architectures, the IC200ETM001 Ethernet module can be used to integrate the VersaMax system into plant-wide SCADA or DCS networks, supporting system integration across multiple control domains.

Terminal modules and wiring accessories compatible with the VersaMax platform further simplify field wiring. Pre-wired terminal blocks and marshalling panels can be connected directly to I/O modules seated in the IC200CHS022L carrier, enabling rapid commissioning and reducing wiring errors during system startup. This is particularly valuable in large-scale projects where multiple carriers are deployed across a production line or process unit.

For redundancy-critical applications, the VersaMax architecture supports hot-standby CPU configurations where dual CPU modules monitor each other’s health and execute seamless switchover in the event of a primary CPU fault. The IC200CHS022L carrier, as a passive backplane element, remains operational during CPU switchover, ensuring that I/O scanning continues without interruption. This characteristic makes the carrier suitable for use in safety-instrumented systems and high-availability process control loops where unplanned downtime carries significant operational or safety consequences.

Industrial Application Notes

The IC200CHS022L has been deployed across a broad range of industrial sectors where the VersaMax platform is the preferred control architecture. In discrete manufacturing environments — including automotive assembly, packaging lines, and material handling systems — the carrier provides the I/O infrastructure for machine-level PLCs that coordinate conveyor drives, pneumatic actuators, and vision system triggers. Its compact form factor and DIN rail compatibility make it well-suited for integration into standard 19-inch control cabinets or custom enclosures.

In the power generation and electrical distribution sector, VersaMax systems equipped with IC200CHS022L carriers are used to monitor and control switchgear, transformer protection relays, and generator excitation systems. The carrier’s robust bus design ensures reliable signal transmission in environments with high electromagnetic interference, which is a common challenge in substations and power plant control rooms.

In the oil and gas and petrochemical industries, the IC200CHS022L is deployed in remote terminal units (RTUs) and local control panels for wellhead monitoring, pipeline pressure regulation, and compressor station automation. Its compatibility with Profibus DP and DeviceNet NIUs allows it to be integrated into existing fieldbus networks without requiring a complete system redesign, protecting the capital investment in existing control infrastructure.

Water and wastewater treatment facilities use VersaMax I/O carriers to manage pump sequencing, chemical dosing, and flow measurement across geographically distributed treatment stages. The ability to deploy IC200CHS022L carriers as remote I/O nodes — connected via Profibus or Ethernet to a central SCADA system — enables operators to monitor and control the entire treatment process from a single HMI workstation, reducing the need for local operator presence at each pump station.

In mining and metallurgical applications, the carrier supports the automation of ore processing equipment, conveyor systems, and smelting furnace controls. The VersaMax platform’s modular architecture allows maintenance teams to replace individual I/O modules without powering down the entire carrier, minimizing production interruptions during scheduled maintenance windows. Long-term spare parts availability and the warranty terms confirmed during quotation provided with each IC200CHS022L unit further support the total cost of ownership objectives of mining operations with multi-decade equipment lifecycles.

Product Compatibility FAQ

Q1: Is the IC200CHS022L compatible with both local and remote VersaMax I/O configurations?
Yes. The IC200CHS022L carrier is designed to function in both local rack configurations — where it is mounted directly adjacent to a VersaMax CPU head — and in remote I/O configurations, where it is connected to the main CPU via a Network Interface Unit such as the IC200PBI001 (Profibus DP) or IC200BEM002 (DeviceNet). In remote configurations, the carrier operates as a standalone I/O node, with the NIU managing all communication with the host CPU. This flexibility allows engineers to design scalable architectures that can be expanded by adding additional remote carriers without modifying the central control rack.

Q2: What I/O modules are compatible with the IC200CHS022L, and how does module selection affect system architecture?
The IC200CHS022L accepts the full range of VersaMax I/O modules, including discrete input modules (e.g., IC200MDL640, IC200MDL650), discrete output modules (e.g., IC200MDL740), analog input modules (e.g., IC200ALG230), and analog output modules (e.g., IC200ALG320). Module selection directly affects the carrier’s power consumption, which must be balanced against the capacity of the installed power supply module (e.g., IC200PWR002). Engineers should perform a power budget calculation during the design phase to ensure that the total current draw of all installed modules does not exceed the power supply’s rated output. Mixing high-density discrete modules with analog modules on the same carrier is common practice and does not require special configuration beyond standard I/O addressing in the CPU program.

Q3: What does the warranty terms confirmed during quotation cover, and how does it support long-term maintenance planning?
Each IC200CHS022L unit is supplied with a warranty terms confirmed during quotation covering manufacturing defects and functional failures that occur under normal operating conditions. This warranty period begins from the date of shipment and provides assurance that the carrier will perform to its published specifications throughout the initial deployment and commissioning phase. For long-term maintenance planning, the warranty terms confirmed during quotation serves as a baseline for establishing spare parts rotation schedules and predictive maintenance intervals. Facilities managers and reliability engineers can use the warranty period as a reference point for scheduling first-line inspections and for budgeting replacement units in multi-year maintenance contracts. Units that develop faults within the warranty period are eligible for replacement, reducing the financial risk associated with early-life failures in newly commissioned control systems.
