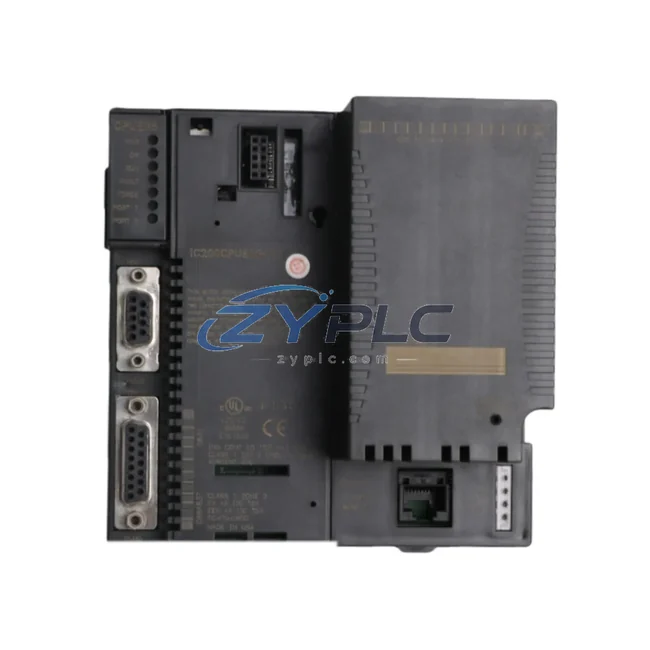

GE Fanuc IC200CPUE05-JP CPU for VersaMax

GE Fanuc IC200CPUE05-JP CPU for VersaMax: Compatibility and Replacement Notes

The GE Fanuc IC200CPUE05-JP is a high-performance CPU module engineered for deployment within the VersaMax distributed control platform. Rather than functioning as a standalone component, the IC200CPUE05-JP is designed from the ground up to serve as the central processing node in a layered automation architecture — coordinating signal flow across I/O subsystems, managing communication with supervisory networks, and maintaining deterministic scan cycles that underpin reliable process control in demanding industrial environments.

In modern industrial control system design, the CPU module is not merely a processor — it is the architectural anchor that defines system scalability, redundancy capability, and long-term maintainability. The IC200CPUE05-JP fulfills this role within the VersaMax ecosystem by providing robust program execution, flexible I/O expansion support, and native compatibility with GE’s established communication and configuration infrastructure.

Product Specification Table

System Compatibility Notes

The IC200CPUE05-JP achieves its full operational value when integrated within a complete VersaMax control architecture. At the control layer, the CPU module executes user logic and manages the deterministic scan cycle that governs all downstream I/O operations. Paired with the IC200PWR002 or IC200PWR101 power supply modules, the system receives stable, regulated DC power that protects both the CPU and connected I/O modules from voltage transients common in industrial panel environments.

At the I/O layer, the IC200CPUE05-JP interfaces directly with VersaMax discrete and analog I/O modules mounted on the same carrier backplane. Modules such as the IC200MDL640 (16-point 24VDC discrete input) and IC200MDL741 (16-point discrete output relay) provide the field-level signal acquisition and actuation capability that the CPU orchestrates. For process measurement applications, analog input modules like the IC200ALG230 (4-channel analog input, 4–20mA) deliver precision signal conditioning that feeds directly into the CPU’s control loop calculations.

At the network and communication layer, the IC200CPUE05-JP’s built-in Ethernet port enables direct integration with plant-level SCADA systems and historian platforms via SRTP or Modbus TCP. For legacy serial device integration, the IC200CMM020 communications coprocessor module extends the system’s serial communication capacity, enabling simultaneous multi-protocol operation without burdening the CPU’s primary scan cycle. This architecture supports system integration across control tiers — from field device to enterprise data layer — without requiring additional protocol converters.

At the human-machine interface layer, the IC200CPUE05-JP communicates natively with GE’s QuickPanel+ operator interface terminals, providing real-time process visualization, alarm management, and operator control. The Ethernet-based connection between the CPU and HMI eliminates the latency associated with serial HMI links, improving operator response time in dynamic process environments.

For applications requiring system redundancy, the VersaMax platform supports hot-standby CPU configurations using paired IC200CPUE05-JP modules with synchronized memory transfer, ensuring continuity of control during planned maintenance or unexpected CPU faults. Terminal block modules such as the IC200CHS022 carrier and associated wiring accessories simplify field wiring and reduce commissioning time, while also enabling module hot-swap without full system shutdown in supported configurations.

Industrial Application Notes

The IC200CPUE05-JP is deployed across a broad range of industrial sectors where reliable, scalable, and maintainable PLC architecture is essential:

Manufacturing & Assembly Lines: In discrete manufacturing environments, the IC200CPUE05-JP manages multi-axis sequencing, conveyor control, and quality inspection I/O — coordinating with servo drives and vision system triggers through its high-speed discrete I/O interface. Its compact VersaMax form factor makes it well-suited for machine-level control panels where space is constrained.

Power Generation & Electrical Utilities: Substation automation and generator control applications leverage the IC200CPUE05-JP’s Modbus TCP capability to integrate with protection relays, energy meters, and SCADA RTUs. The module’s deterministic scan performance ensures that protection logic executes within defined time windows, a critical requirement in electrical utility environments.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the IC200CPUE05-JP to manage pump sequencing, chemical dosing control, and flow measurement — all within a unified VersaMax architecture that simplifies spare parts management and technician training across multiple pump stations.

Oil, Gas & Petrochemical: In wellhead automation and pipeline monitoring applications, the IC200CPUE05-JP’s robust operating temperature range and support for remote I/O expansion via Ethernet-connected VersaMax remote I/O drops enables distributed control across geographically separated field installations from a single CPU node.

Mining & Metallurgy: Conveyor belt management, crusher control, and ore processing automation benefit from the IC200CPUE05-JP’s ability to handle high-density discrete I/O while maintaining communication with plant-level MES systems — supporting both real-time control and production data reporting within a single integrated architecture.

Product Compatibility FAQ

Q1: Is the IC200CPUE05-JP compatible with existing VersaMax I/O modules and carrier backplanes already installed in my control cabinet?
Yes. The IC200CPUE05-JP is fully compatible with the VersaMax carrier and backplane ecosystem, including standard I/O carriers such as the IC200CHS022 and IC200CHS014. Existing discrete and analog I/O modules — including IC200MDL640, IC200MDL741, and IC200ALG230 series — mount directly onto the same carrier without modification. This backward compatibility protects existing field wiring investments and allows CPU upgrades without requiring a full panel redesign.

Q2: How does the IC200CPUE05-JP support long-term maintainability and architecture consistency across multiple installed sites?
The IC200CPUE05-JP is programmed using GE Proficy Machine Edition, which supports centralized project management, version control, and remote online monitoring. A single engineering workstation can manage logic across multiple IC200CPUE05-JP installations via Ethernet, enabling remote diagnostics and program updates without on-site travel. Combined with our coverage and RFQ-based availability, system operators can maintain consistent spare parts inventory and minimize downtime risk across multi-site deployments.

Q3: What commissioning steps are required when replacing an IC200CPUE05-JP in an operational system, and does the cover field replacement units?
Replacement commissioning involves restoring the user program from the engineering workstation or from a memory card backup (where supported), verifying I/O module configuration, and performing a controlled power-up sequence with the system in stop mode before returning to run. The covers all units shipped from ZYPLC and applies from the date of shipment, including field replacement units. Our technical support team is available to assist with commissioning verification and configuration restoration to minimize system downtime during replacement procedures.
